Product Overview

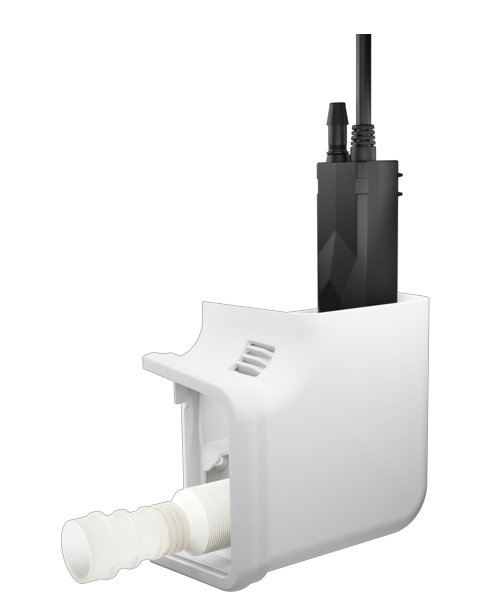

The VAMP-CK Corner Condensate Pump (3004256) is a corner-mounted condensate removal pump designed to be installed as a duct corner outside of the indoor unit. It creates a tight corner with your current duct, while connecting and keeping the plugs and hose hidden for a clean installation. The duct itself is not included but it is compatible with other duct systems already installed. The VAMP-CK Corner Condensate Pump includes the plastic corner and the pump and hose. The hose connects directly to the existing condensate tray in your unit.
Like other VAMP condensate pumps in the range, the VAMP-CK is exceptionally quiet. Thanks to advanced diaphragm pump technology and effective vibration dampening, it operates at less than 18 dB for near-silent performance.
The pump features an integrated reservoir and external optical level sensor for reliable operation. It also includes a flexible, posable hose with filter and adapter, allowing direct connection to the condensate tray. The adjustable hose can serve as a reservoir replacement, making installation both versatile and quick.
- Integrated Switching Power Supply: Operates universally with input voltages ranging from 100-240 VAC
- Optical Level Sensing Technology: Reliable operation ensured by proven optical sensors
- Readily Available Accessories such as the AP-MO/3 adapter and a replacement ho are readily available
- Maximum Flow Rate: 6 gallons per hour
- Maximum Discharge Head: 50 ft.
- Maximum Horizontal Run: 246 ft (@0 ft head and 0 ft suction)
- Sound Level: 20 dBA
- Energy Consumption: 6 watts
- Alarm Relay: Normally-closed, failsafe 250 VAC, 5 A or 30 VDC, 5 A
- Hose Diameter: 1/4"

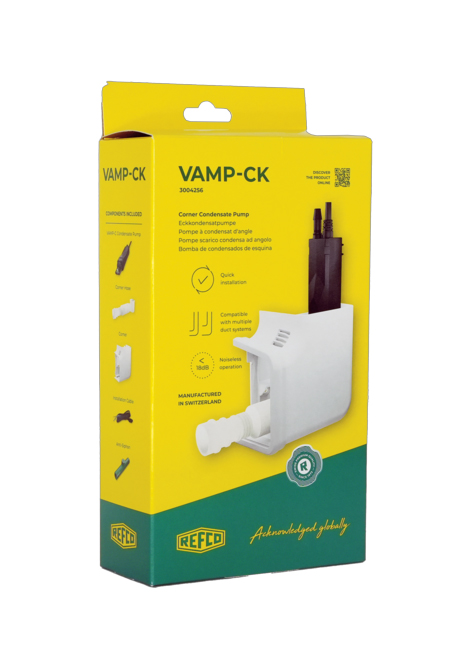

Included in the box with the VAMP-CK is:
- Pump
- Corner hose with filter
- Corner Seal
- Kit Bag including Vibrastripe and Foam
- Anti-siphon valve
- Installation cable
- Corner (front & back)
- Quick guide
Tech Specs
