Product Overview

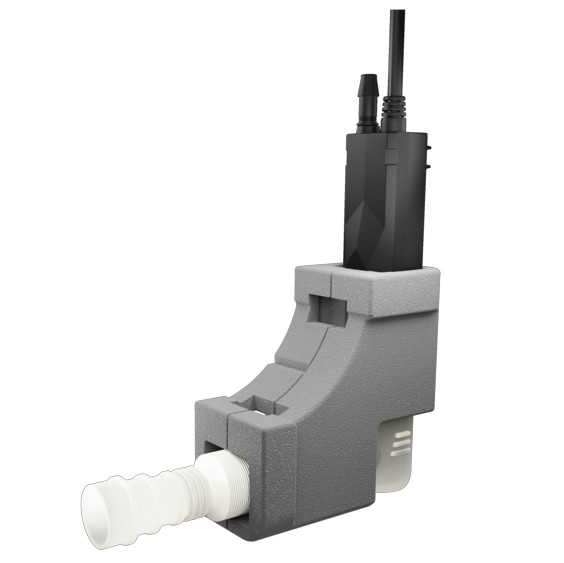

The VAMP-C (3004255) is a corner-mounted condensate removal pump designed as a direct replacement for existing corner pumps installed in duct corners. Its interface shell fits neatly into the corner of your current duct, ensuring a smooth and straightforward installation. The unit can also be trimmed to accommodate specific installation requirements.
Like other VAMP condensate pumps in the range, the VAMP-C is exceptionally quiet. Thanks to advanced diaphragm pump technology and effective vibration dampening, it operates at less than 18 dB for near-silent performance.
The pump features an integrated reservoir and external optical level sensor for reliable operation. It also includes a flexible, posable hose with filter and adapter, allowing direct connection to the condensate tray. The adjustable hose can serve as a reservoir replacement, making installation both versatile and quick.
- Integrated Switching Power Supply: Operates universally with input voltages ranging from 100-240 VAC
- Optical Level Sensing Technology: Reliable operation ensured by proven optical sensors
- Readily Available Accessories such as the AP-MO/3 adapter and a replacement ho are readily available
- Maximum Flow Rate: 6 gallons per hour
- Maximum Discharge Head: 50 ft.
- Maximum Horizontal Run: 246 ft (@0 ft head and 0 ft suction)
- Sound Level: 20 dBA
- Energy Consumption: 6 watts
- Alarm Relay: Normally-closed, failsafe 250 VAC, 5 A or 30 VDC, 5 A
- Hose Diameter: 1/4"
Included in the box with the VAMP-C is:
- Pump
- Corner hose with filter
- Vibrastripe
- Interface shell (front & back)
- Installation cable
- Quick guide
