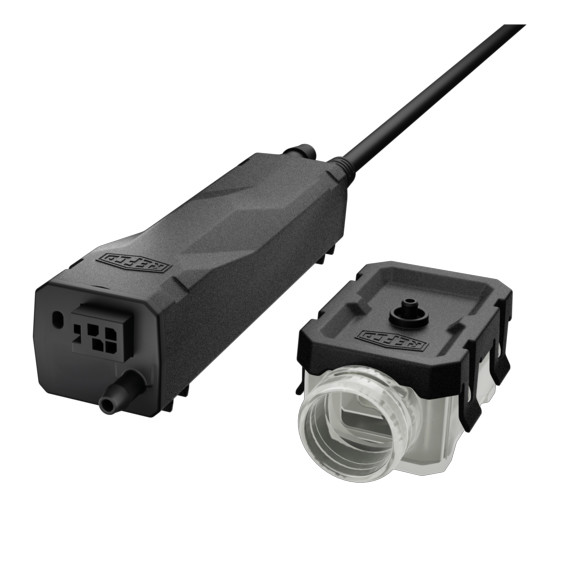

Refco VAMP-X Condensate Removal Pump with External Optical Sensor

Sku:
REFCO-VAMPX
In Stock, Ships Next Business Day
$148.00

The VAMP-X Condensate Pump is a split design condensate removal solution. It features a pump as well as an external sensor, both of which can be positioned where you need. The VAMP-X is ideal for installations where the pump cannot be placed at the point where the condensate collects. It is exceptionally quiet, as well as quick and easy to install. It includes an integrated reservoir and external optical level sensor. The flexible, adjustable hose serves as a reservoir replacement (with filter and adapter) for direct connection to the condensate tray.

The VAMP-X features quiet operation thanks to its advanced diaphragm pump technology and effective vibration dampening, the pump operates at less than 18 dB. It is small enough to fit in the smallest space as it is only 1" tall and will pump up to 6 gallons of condensate per hour and is capable of pumping it up to 50 ft., vertically. It can be used for all types of mini-split indoor units including wall mounted, ceiling units and floor units. It is easily retro-fitted for existing installations with optional adapter plugs (sold separately).

  • Integrated Switching Power Supply: Operates universally with input voltages ranging from 100-240 VAC
  • Optical Level Sensing Technology: Located in an external reservoir it offers reliable operation and maximum flexibility
  • Accessories such as the AP-MO/3 adapter as well as several other adapters, replacement hose and more are readily available
Other Key Features and Technical Specifications:
  • Maximum Flow Rate: 6 gallons per hour (GPH)
  • Maximum Discharge Head: 50 ft.
  • Maximum Horizontal Run: 246 ft (@0 ft head and 0 ft suction)
  • Sound Level: 18 dBA
  • Energy Consumption: 6 watts
  • Alarm Relay: Normally-closed, failsafe 250 VAC, 5 A or 30 VDC, 5 A
  • Hose Diameter: 1/4"

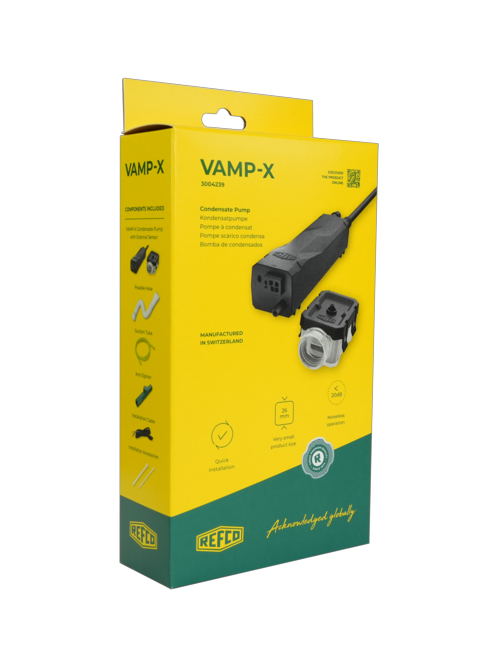

Included in the box with the VAMP-X Condensate Pump (3004239) is everything you need (no tools required for easy installation):

  • Pump
  • Posable hose with filter
  • Installation cable
  • Sensor with sensor cable
  • Suction tube
  • Anti-siphon valve
  • Vent tube
  • Cable ties
  • Quick guide
FREE SHIPPING ON ALL ORDERS!
Refco VAMP-X Condensate Removal Pump with External Optical Sensor
  • Refco VAMP-X Condensate Removal Pump with External Optical Sensor
  • Refco VAMP-X Condensate Removal Pump with External Optical Sensor

Product Overview

The VAMP-X Condensate Pump is a split design condensate removal solution. It features a pump as well as an external sensor, both of which can be positioned where you need. The VAMP-X is ideal for installations where the pump cannot be placed at the point where the condensate collects. It is exceptionally quiet, as well as quick and easy to install. It includes an integrated reservoir and external optical level sensor. The flexible, adjustable hose serves as a reservoir replacement (with filter and adapter) for direct connection to the condensate tray.

The VAMP-X features quiet operation thanks to its advanced diaphragm pump technology and effective vibration dampening, the pump operates at less than 18 dB. It is small enough to fit in the smallest space as it is only 1" tall and will pump up to 6 gallons of condensate per hour and is capable of pumping it up to 50 ft., vertically. It can be used for all types of mini-split indoor units including wall mounted, ceiling units and floor units. It is easily retro-fitted for existing installations with optional adapter plugs (sold separately).

  • Integrated Switching Power Supply: Operates universally with input voltages ranging from 100-240 VAC
  • Optical Level Sensing Technology: Located in an external reservoir it offers reliable operation and maximum flexibility
  • Accessories such as the AP-MO/3 adapter as well as several other adapters, replacement hose and more are readily available
Other Key Features and Technical Specifications:
  • Maximum Flow Rate: 6 gallons per hour (GPH)
  • Maximum Discharge Head: 50 ft.
  • Maximum Horizontal Run: 246 ft (@0 ft head and 0 ft suction)
  • Sound Level: 18 dBA
  • Energy Consumption: 6 watts
  • Alarm Relay: Normally-closed, failsafe 250 VAC, 5 A or 30 VDC, 5 A
  • Hose Diameter: 1/4"

Included in the box with the VAMP-X Condensate Pump (3004239) is everything you need (no tools required for easy installation):

  • Pump
  • Posable hose with filter
  • Installation cable
  • Sensor with sensor cable
  • Suction tube
  • Anti-siphon valve
  • Vent tube
  • Cable ties
  • Quick guide

Tech Specs

Product Type:
Pump
California residents see Prop 65 WARNINGS

Warning WARNING!

Warning: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Product Warranty

2 Year Limited Warranty
