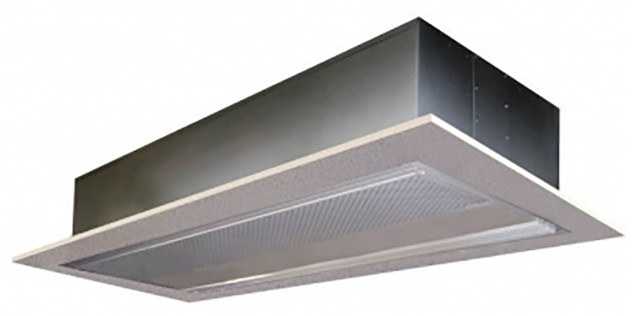

Mars Air Systems Phantom 12 Series (PH12) Heated Air Curtain - 144" - 460/3/60 - Pearl White

Sku:
MARS-PH121444EHTPW
Usually Leaves Warehouse in 6 to 8 Weeks
$10,575.00
FOR COMMERCIAL USE ONLY - 460 VOLTS
The Phantom 12 Series (PH12) of Mars Air Doors offers a variety of lengths to provide an environmental barrier to your space of up to 16 feet, while protecting your space from insects up to 14 feet. The PH12 is recessed into the ceiling, blending in to its surroundings while still offering performance and protection to your space.

This heated, 460/3/60 air door is for commercial use only and includes four 1 horsepower motors. It is available in a variety of lengths from 48" to 144". The PH12 Heated Air Curtain features an internal mounted control panel, remote thermostat with heat/off/fan settings. It is 15 1/2" deep and can be recessed into the ceiling for a pleasing, less conspicuous aesthetic in your space. The PH12 includes a washable polyester filter and features durable aluminum construction. The PH12144-4EHT-PW is 144" long and includes four 1-HP motors. Some sample installation applications include shipping/receiving doors, customer entrances, cold storage rooms and many more. Ideal installation height is 10' - 12' for the PH12 series.

The PH12 air curtain offers a cost efficient barrier that will blend in to any environment. Its durable metal construction is finished in a powder-coated pearl white finish to blend into its surroundings. 48" and 60" units feature a single motor, while 72", 84" 96", and 120" each feature a 2- motor design. The 144" unit includes 4 motors. Units from 84" and longer are a two-piece design and are installed in tandem.

The profile of the PH12 is typically recessed into the ceiling with very little protruding from the ceiling.

Profile of LPV2 Air Curtain
The chart below lays out the lengths available for the PH12, 460/3/60 heated air curtain. The highlighted row is specific to this item. Simply choose your length and kWs based on your installation needs. The PH12 air curtain comes with an internal control panel.

ModelLengthMotor/HPVoltage/PhasekWSound
(dBA)
Full Load
Amps
Max. Volume
(CFMs)
Weight
PH1248-1EHH-PW 48" 1 Motor; 1 HP 460/3 12 70 17 amps 2534 CFM 90 lbs
PH1260-1EHH-PW 60" 1 Motor; 1 HP 460/3 12 70 17 amps 2534 CFM 90 lbs
PH1272-2EHN-PW 72" 2 Motors; 1 HP each 460/3 24 70 33 amps 2759 CFM 95 lbs
PH1284-2EHN-PW* 84" 2 Motors; 1 HP each 460/3 24 70 33 amps 2759 CFM 95 lbs
PH1296-2EHN-PW* 96" 2 Motors; 1 HP each 460/3 24 73 33 amps 4646 CFM 155 lbs
PH12120-2EHN-PW* 120" 2 Motors; 1 HP each 460/3 24 73 33 amps 4646 CFM 155 lbs
PH12144-4EHT-PW* 144" 2 Motors; 1 HP each 460/3 48 73 66 amps 4942 CFM 175 lbs

*PH12 84" - 144" ship as 2 pieces and are installed in tandem.
FREE SHIPPING ON ALL ORDERS!
Mars Air Systems Phantom 12 Series (PH12) Heated Air Curtain, 460/3/60
  • Mars Air Systems Phantom 12 Series (PH12) Heated Air Curtain, 460/3/60
  • Mars Air Systems Phantom 12 Series (PH12) Heated Air Curtain - 144" - 460/3/60 - Pearl White

Product Overview

FOR COMMERCIAL USE ONLY - 460 VOLTS
The Phantom 12 Series (PH12) of Mars Air Doors offers a variety of lengths to provide an environmental barrier to your space of up to 16 feet, while protecting your space from insects up to 14 feet. The PH12 is recessed into the ceiling, blending in to its surroundings while still offering performance and protection to your space.

This heated, 460/3/60 air door is for commercial use only and includes four 1 horsepower motors. It is available in a variety of lengths from 48" to 144". The PH12 Heated Air Curtain features an internal mounted control panel, remote thermostat with heat/off/fan settings. It is 15 1/2" deep and can be recessed into the ceiling for a pleasing, less conspicuous aesthetic in your space. The PH12 includes a washable polyester filter and features durable aluminum construction. The PH12144-4EHT-PW is 144" long and includes four 1-HP motors. Some sample installation applications include shipping/receiving doors, customer entrances, cold storage rooms and many more. Ideal installation height is 10' - 12' for the PH12 series.

The PH12 air curtain offers a cost efficient barrier that will blend in to any environment. Its durable metal construction is finished in a powder-coated pearl white finish to blend into its surroundings. 48" and 60" units feature a single motor, while 72", 84" 96", and 120" each feature a 2- motor design. The 144" unit includes 4 motors. Units from 84" and longer are a two-piece design and are installed in tandem.

The profile of the PH12 is typically recessed into the ceiling with very little protruding from the ceiling.

Profile of LPV2 Air Curtain
The chart below lays out the lengths available for the PH12, 460/3/60 heated air curtain. The highlighted row is specific to this item. Simply choose your length and kWs based on your installation needs. The PH12 air curtain comes with an internal control panel.

ModelLengthMotor/HPVoltage/PhasekWSound
(dBA)
Full Load
Amps
Max. Volume
(CFMs)
Weight
PH1248-1EHH-PW 48" 1 Motor; 1 HP 460/3 12 70 17 amps 2534 CFM 90 lbs
PH1260-1EHH-PW 60" 1 Motor; 1 HP 460/3 12 70 17 amps 2534 CFM 90 lbs
PH1272-2EHN-PW 72" 2 Motors; 1 HP each 460/3 24 70 33 amps 2759 CFM 95 lbs
PH1284-2EHN-PW* 84" 2 Motors; 1 HP each 460/3 24 70 33 amps 2759 CFM 95 lbs
PH1296-2EHN-PW* 96" 2 Motors; 1 HP each 460/3 24 73 33 amps 4646 CFM 155 lbs
PH12120-2EHN-PW* 120" 2 Motors; 1 HP each 460/3 24 73 33 amps 4646 CFM 155 lbs
PH12144-4EHT-PW* 144" 2 Motors; 1 HP each 460/3 48 73 66 amps 4942 CFM 175 lbs

*PH12 84" - 144" ship as 2 pieces and are installed in tandem.

Tech Specs

Max. Door/Window Height (ft.):
16
Max. Height Insect Block (ft.):
14
Heat:
Yes
Horsepower:
1 (per motor)
Voltage:
460V
Depth (in.):
26
Height (in.):
17
Length (in.):
144
Certifications:
ETL Listed
Parts Warranty:
18 Months
Product Type:
Heated
