The Phantom 10 Series (PH10) of Mars Air Doors offers a variety of lengths to provide an environmental barrier to your space of up to 12 feet, while protecting your space from insects up to 10 feet. The PH10 is recessed into the ceiling, blending in to its surroundings while still offering performance and protection to your space.
This heated 208/3/60 air door features two 1/2 horsepower motors. The units are typically suspended from the ceiling and hidden inside the false roof. They can also be wall mounted using special brackets. The air curtain includes a washable polyester filter, features durable aluminum construction and includes four 1" Pearl White trim pieces. A variety of lengths from 36" to 96" is available. The PH1060-2EEN-PW unit is 60" long and includes two 1/2 hp motors. Some sample installation applications include shipping/receiving doors, customer entrances, cold storage rooms and many more. Ideal installation height is 8' - 10' for the PH10 series, however it will provide environmental separation up to 12' and flying insect control up to 10'.
The PH10 air curtain offers a cost efficient barrier that will blend in to any environment. Its durable metal construction is finished in a powder-coated pearl white finish to meet your design aesthetics. Units 36" to 48" long feature a single motor, units 60" to 96" feature a 2- motor design. Units from 84" - 96" feature a two-piece design and are installed in tandem.

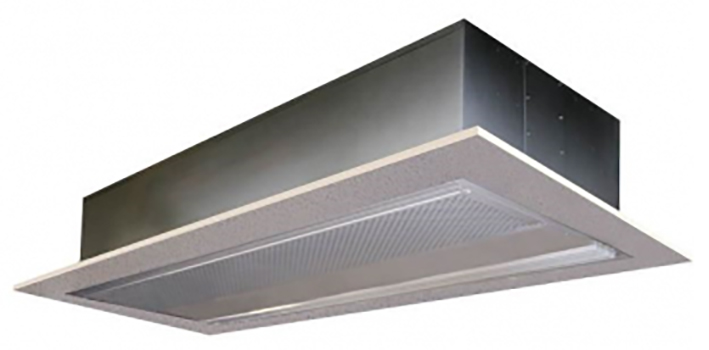

The profile of the PH10 is typically recessed into the ceiling with very little protruding from the ceiling.
The chart below lays out all the optional lengths available for the PH10, 208/3/60 air curtain. The highlighted row is specific to this item. Simply choose your length based on your installation needs. The PH10 heated air curtain comes with an internal control panel.
|PH1036-1EEH-PW||36"||1 Motor; 1/2 HP||208/3||12||66||36 amps||1379 CFM||90 lbs|
|PH1042-1EEH-PW||42"||1 Motor; 1/2 HP||208/3||12||66||36 amps||1418 CFM||95 lbs|
|PH1048-1EEH-PW||48"||1 Motor; 1/2 HP||208/3||12||66||36 amps||1442 CFM||100 lbs|
|PH1060-2EEN-PW||60"||2 Motors; 1/2 HP each||208/3||24||68||72 amps||2700 CFM||130 lbs|
|PH1072-2EEN-PW||72"||2 Motors; 1/2 HP each||208/3||24||68||72 amps||2758 CFM||180 lbs|
|PH1084-2EEN-PW||84"||2 Motors; 1/2 HP each||208/3||24||68||72 amps||2836 CFM||190 lbs|
|PH1096-2EEN-PW||96"||2 Motors; 1/2 HP each||208/3||24||68||72 amps||2884 CFM||225 lbs|
- Max. Door/Window Height (ft.):
- Max. Height Insect Block (ft.):
- 1/2 (per motor)
- Depth (in.):
- Height (in.):
- Length (in.):
- ETL Listed
- Parts Warranty:
- 18 Months
- Product Type:
