Product Overview

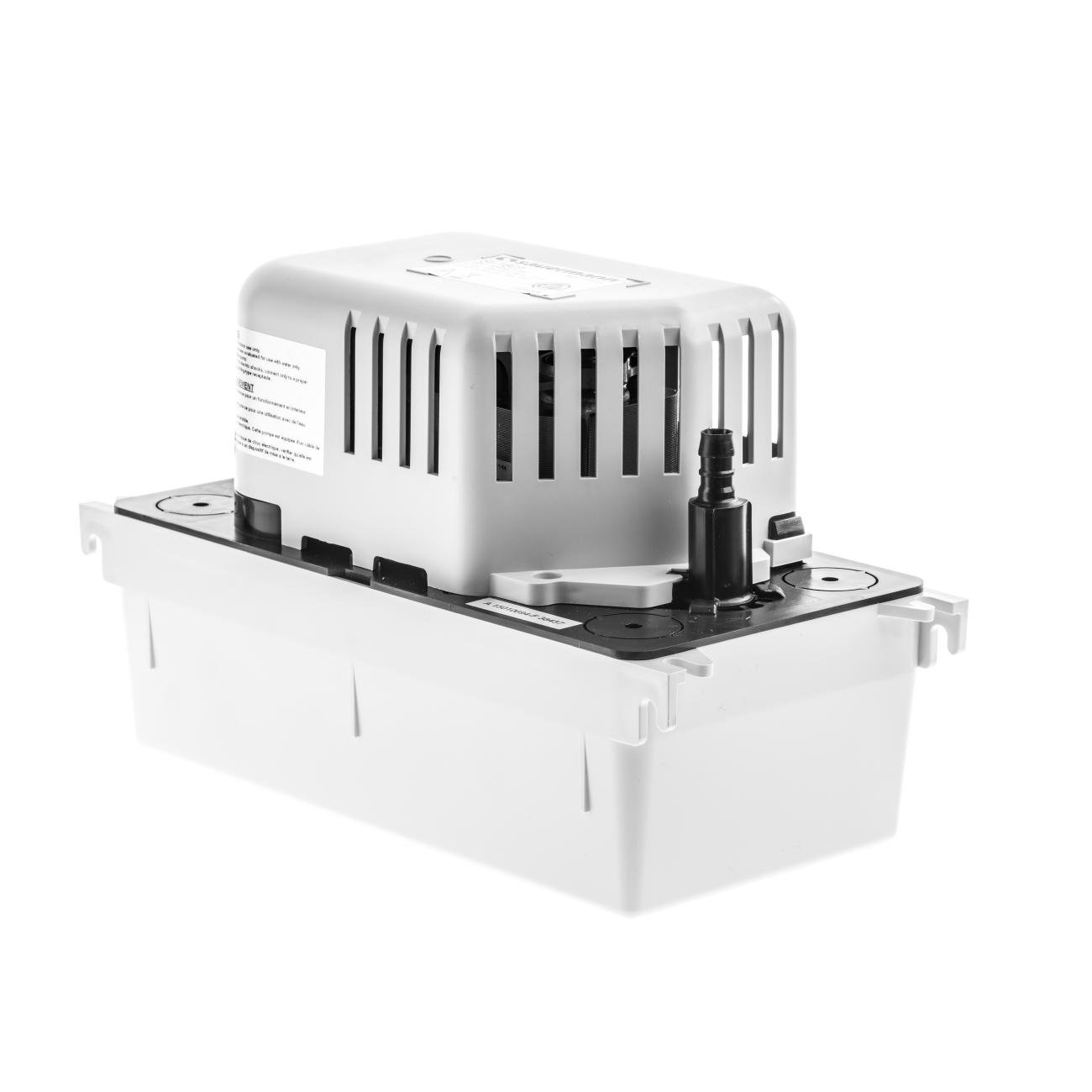

The Sauermann Si-1801LHUS11 is a 120 volt Centrifugal Condensate Removal Tank Pump. It has a low head at 17 feet. The Si-1801 can be used with a variety of appliances including condensing boilers and furnaces, refrigerated display cabinets as well as air conditioning units. The Si-1801 is capable of clearing out 132 gallons per hour (gph) of condensate, up to 150°F. Additionally, it can withstand acidic condensate with pH levels greater than 2.5 (gas condensing boilers). It includes 1/2 gallon tank size and a 6' power cord.
Among its key features, the Si-1801 has a built-in high level safety switch and an oil and acid resistant float.
The pump can be installed either on the ground, on a wall or hanging from the ceiling. It is possible to choose the side of the water exit. Reversible pump block. To ensure proper ventilation of the motor, the pump must be free of any obstruction. Be careful not to bend the flexible discharge tubing. A reinforced tube can be used. When the pump is installed with a boiler discharge tubing must be resistant to acidic water (pH<6.5). Internal discharge recommended, to avoid freezing pipes.
The dimensions of the Si-1801 Centrifugal Tank Pump are 11"l x 5-3/16"w x 6-23/32"h. The Si-1801LHUS11 is a 120 volt pump.
Included in the box:
- One-piece centrifugal pump with 1/2 gal. tank
- Integrated barb end check valve 3/8” o.d. (10 mm)
- 6' power cord
- Safety switch wires (1' bare ends)
- Adaptor: 5/8" i.d., 3/4" i.d, 1" i.d., 1 1/4" i.d.
