Product Overview

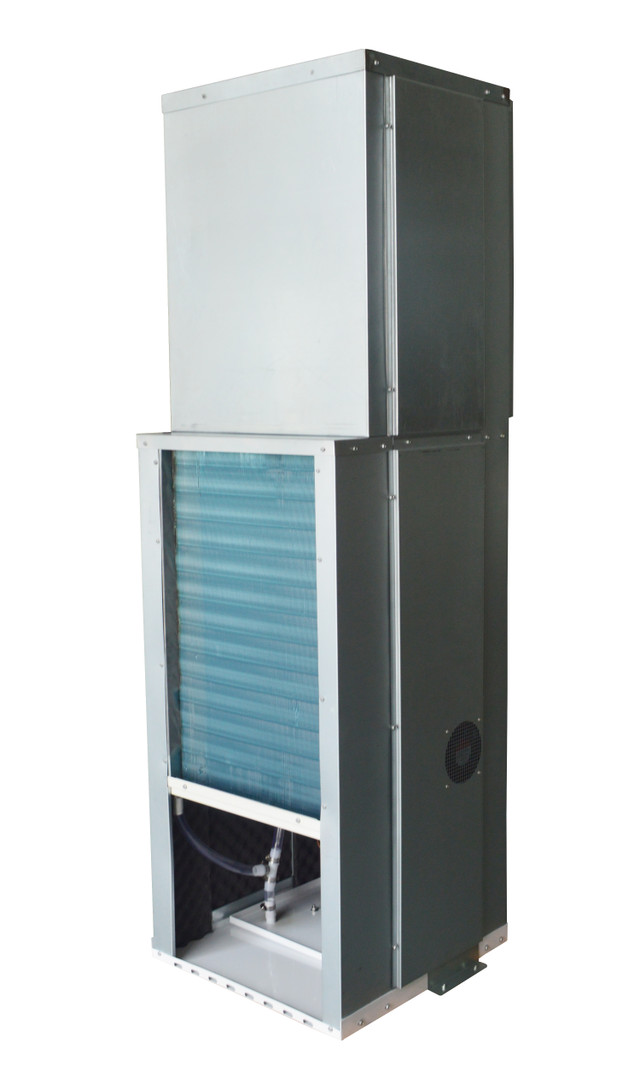

With a MultiMFG Single Package Vertical (SPV) or VTAC unit, you can provide tenants and guests with a more homelike appearance while maximizing usable space. The SPV is typically installed in a utility or mechanical closet on an exterior wall, out of sight, freeing up valuable floor space in the room. No more blocked window access or curtains blowing throughout the night.
A major advantage of the MultiMFG SPV unit is its size. The SPV offers a direct replacement for First Company Single Package units that may already be installed in your building. With a compact 20" x 20" footprint, the SPV is slightly smaller than a standard VTAC, which is typically about 24" x 24".
The MultiMFG SPV line is equipped with an inverter-driven compressor, providing variable-capacity operation across all models for precise output control. The 9SPV3-HP-D is rated at 9,000 BTU/h and modulates from 3,000 to 11,200 BTU/h for enhanced comfort and efficiency. Variable-speed operation reduces on/off cycling under varying load conditions by adjusting capacity as needed. Rather than completely shutting down, the system operates at lower speeds to maintain consistent comfort without hard stops and restarts. The result is improved comfort and enhanced overall efficiency.
The SPV inverter system delivers efficiency ratings of up to 11.0 EER2 across the product line. A high-performance EC blower motor provides up to 0.50" WC external static pressure for flexible duct design, while the DC condenser motor reduces amp draw for lower operating costs and improved reliability.
Additionally, the SPV heat pump continues operating in low ambient conditions, delivering dependable heating in outdoor temperatures as low as 15°F. For colder climates, each unit includes an electric heat strip for supplemental heating.
The 9SPV3-HP-D includes a 3.0 kW electric heat kit (requiring a 20-amp circuit), along with a modulating cooling capacity of 3,000–11,200 BTU/h and heating modulation of 3,400–12,500 BTU/h. The 3.0 kW electric heat provides up to 10,200 BTU/h of supplemental heat. The 9,000 BTU class unit is also available with:
- No heat strip option (9SPV0-HP-D) for climates not requiring supplemental electric heat, 15-amp circuit required
- 4kW heat strip (9SPV4-HP-D) - up to 13,600 BTU/h electric heat, 25-amp circuit required
- 5kW heat strip (9SPV5-HP-D) - up to 17,000 BTU/h electric heat, 30-amp circuit required
| 208V | 230V | |
|---|---|---|
| 3.0 kW Electric Heat Data: | ||
| BTUs: | 7700 | 10200 |
| Heating Amps: | 12.9 | 14.4 |
| Minimum Circuit Ampacity: | 20 | 20 |
| Maximum Circuit Ampacity: | 20 | 20 |
| Basic Heater Size: | 2.3kW | 3.0kW |
MultiMFG SPV units are ideal for a wide range of applications, including high-rise apartments and condominiums, hotels and motels, modular and manufactured housing, and student housing developments.
Tech Specs
General Features
Performance @230 Volt
Features
Weights and Dimensions
Electrical Requirements
Electric Heat Performance
California residents see Prop 65 WARNINGS
WARNING!
Warning: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Product Warranty
- Parts Warranty - 1 Year Limited
- Sealed System Warranty - 5 Year Limited
- Limited Warranty DOES NOT include labor or any costs incurred in servicing, removing, replacing, installing shipping or handling of any defective or replacement parts, new unit or system.
