Product Overview

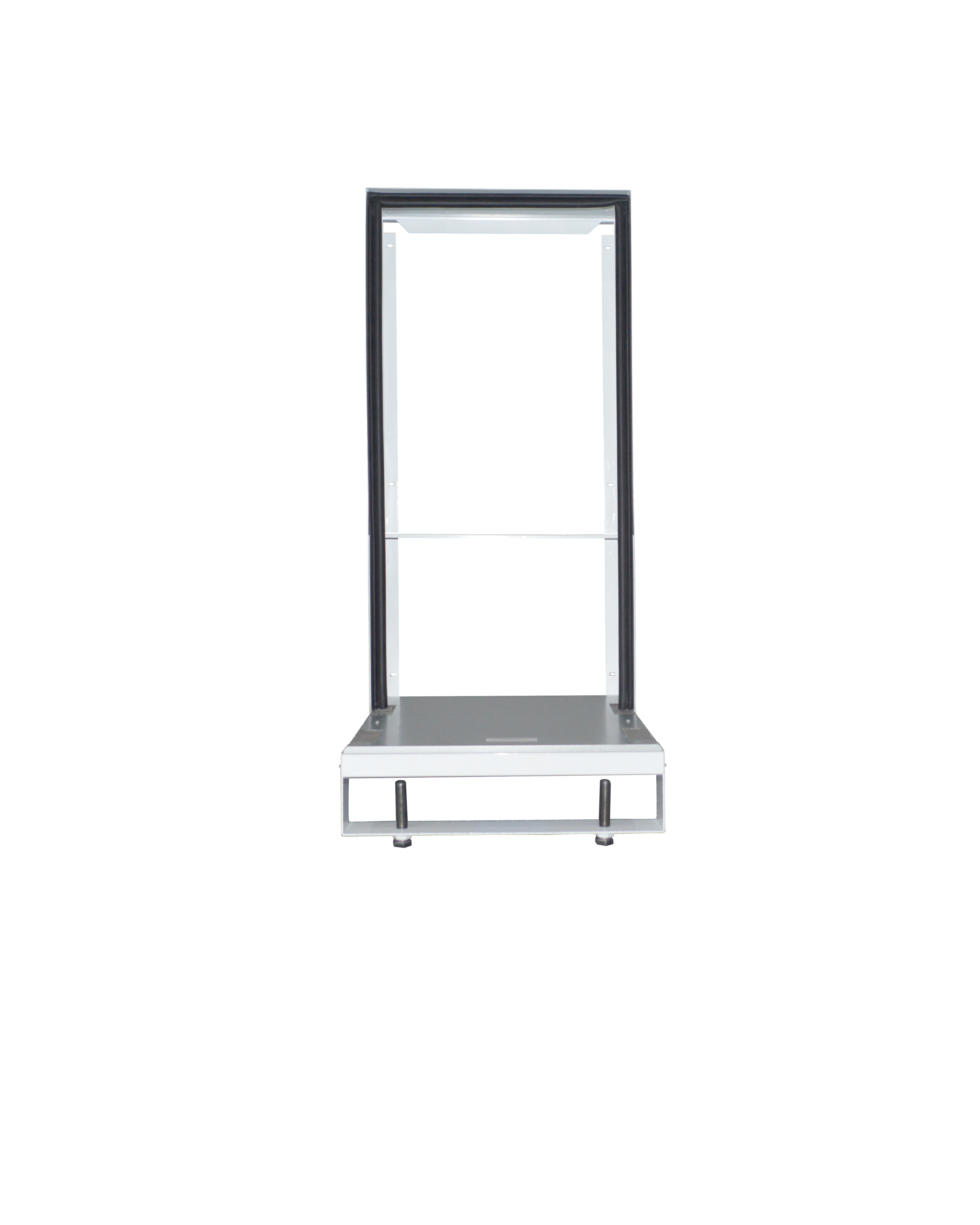

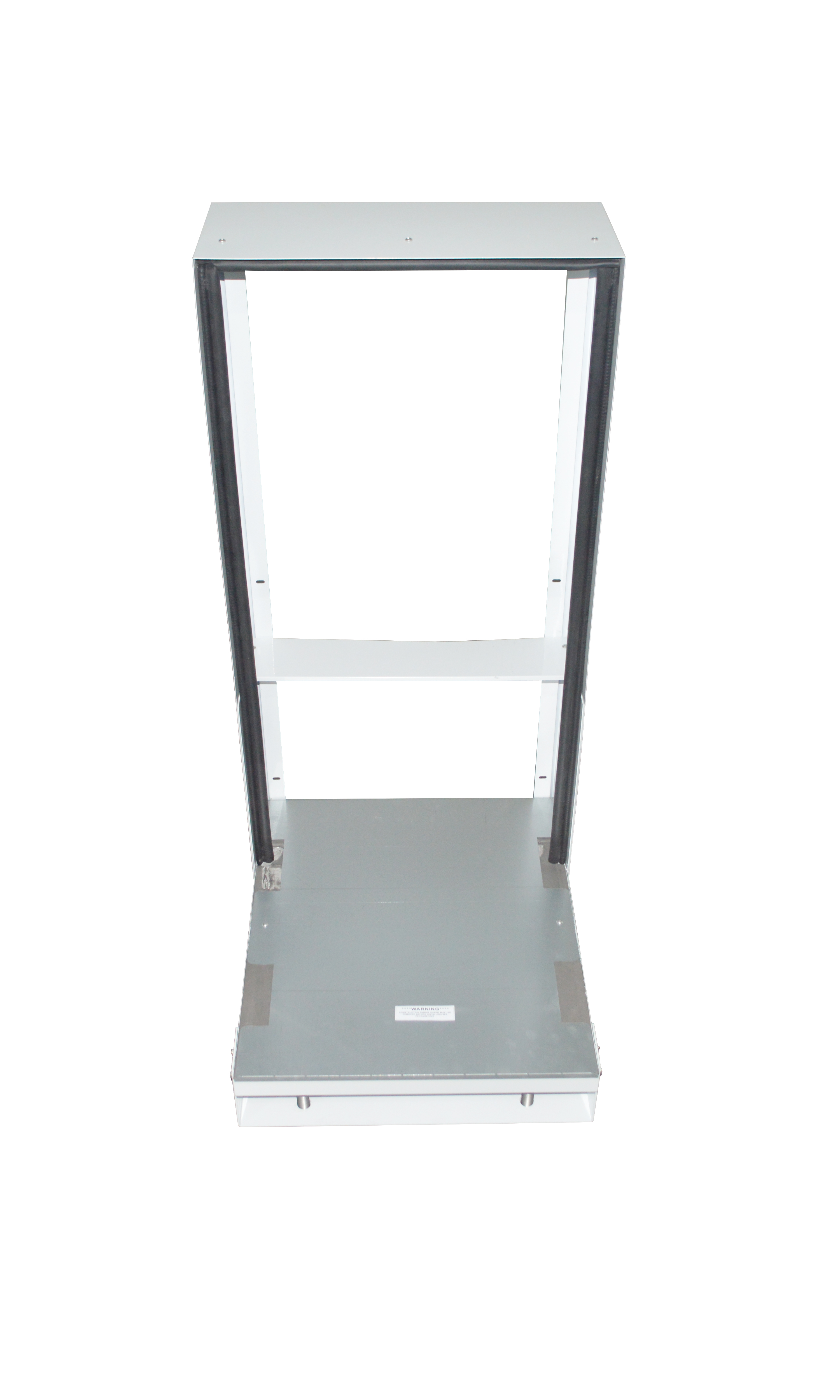

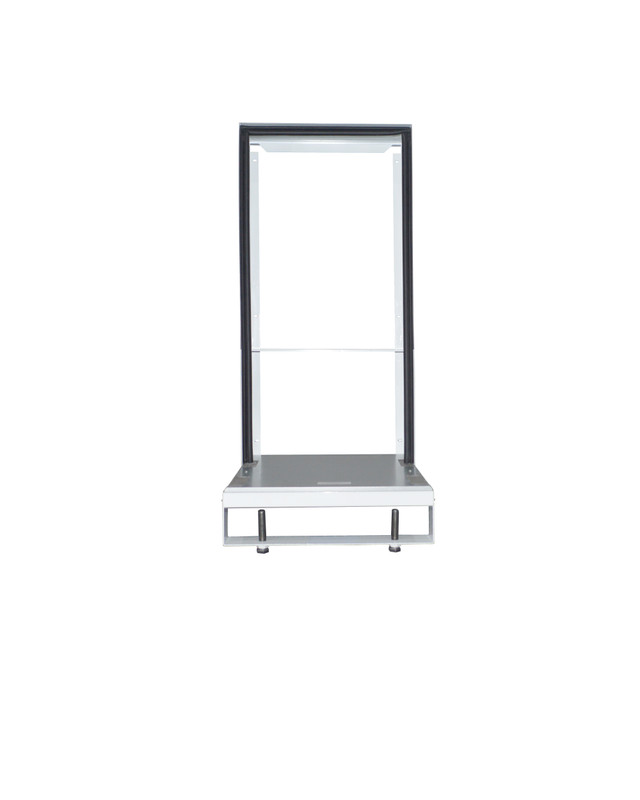

When installing an SPV-HP unit, a specialized sleeve is required. The purpose of the sleeve is to ensure your unit is installed level. It includes a built-in condensate drain pan in the base and provides an attachment point for the architectural grille. Since the SPV-HP units do not install in a wall opening, the use of a specialized sleeve also maintains clear pathways for fresh air in, stale air out. The built-in drain pan is designed to hold water in the bottom without leaking into the wall cavity. The WS1--58 is for walls from 5" up to 8" thick. Also included on the sleeve are heavy duty leveling legs with locking nuts. It has a powder coat finish and features a foil face rubber insulation liner. Additionally, there are pre-drilled holes on the side for mounting to the inside of the frame opening for added stability.
A 3/4" female pipe thread connection is provided in the bottom for field connection to a condensate riser. If the primary condensate drain becomes clogged and the condensate drain overflows, water will flow toward the front of the sleeve to the exterior of the building.
Tech Specs
