Mars Air Systems Phantom 12 Series (PH12) Unheated Air Curtain - 84" - 208/230 Volt - Single-Phase - Pearl White

Sku:
MARS-PH1284-2UD-PW
Usually Leaves Warehouse in 6 to 8 Weeks
$4,610.00

The Phantom 12 Series (PH12) of Mars Air Doors offers a variety of lengths to provide an environmental barrier to your space of up to 16 feet, while protecting your space from insects up to 14 feet. The PH12 is recessed into the ceiling, blending in to its surroundings while still offering performance and protection to your space.

This unheated, 208-230/1/60 volt, air door also features two 1-horsepower motors and a 15 1/2" depth. It can be recessed into the ceiling for a pleasing, less conspicuous aesthetic in your space and includes a washable polyester filter and features durable aluminum construction. A variety of lengths from 42" to 144" is available. The PH1284-2UD-PW unit is 84" long and includes two 1-hp motors. Some sample installation applications include shipping/receiving doors, customer entrances, cold storage rooms and many more. Ideal installation height is 10' - 12' for the PH12 series.

The PH12 air curtain offers a cost efficient barrier that will blend in to any environment. Its durable metal construction is finished in a powder-coated pearl white finish to meet your design aesthetics. Units 42" to 60" long feature a single motor, units 72" to 120" feature a 2- motor design, and 144" units have 4 motors. Units from 84" - 144" feature a two-piece design and are installed in tandem.

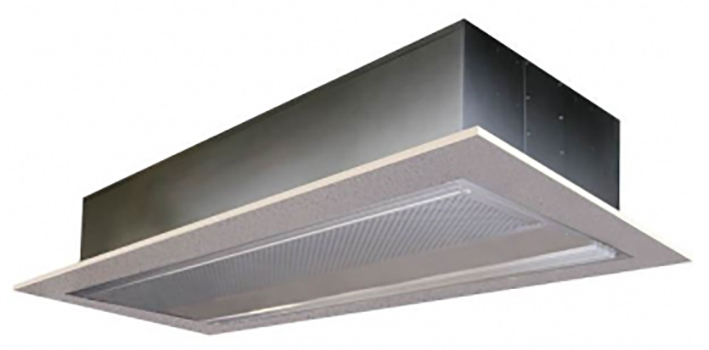

The profile of the PH12 is typically recessed into the ceiling with very little protruding from the ceiling.

Profile of LPV2 Air Curtain
The chart below lays out all the optional lengths available for the PH12, 208-230/1/60 air curtain. The highlighted row is specific to this item. Simply choose your length based on your installation needs. A separate relay or relay with time delay is required to operate the PH12 air curtain.

Door limit switches automatically activate and de-activate (start and stop) the air curtain when the door(s) open and close. A controller that offers time delayed control reduces the cycling of the air curtain motors in high traffic areas (10+ times/hour). This type of controller will delay the unit from turning off when the door closes. They can usually be set from 6 seconds to up to 20 minutes. Available door switches and controllers for the PH12, 208-230/1/60 unit include:

  • Controller J0022 - Commercial low voltage controller, 208-230V, 1Ø, adjustable time delay, with commercial plastic surface mounted door limit switch (field installed)
  • Door Limit Switch (99-014) - Combination Plunger/Roller mechanical
  • Aluminum Switch (99-124) - Floor-mounted
  • Aluminum Switch (99-125) - Surface-mounted
  • A separate externally mounted control panel is required for use with 99-124 and 99-125. The MCPB-1UD for single motor units (42" - 60")MCPB-2UD for 2-motor units (72" - 120") AND MCPB-4UD FOR 144" unit (4 motors).
ModelLengthMotor/HPFull Load
Amps
Sound
(dBA)
Max. Volume
(CFMs)
Uniformity
(%)
Power Rating
(Watts)
Weight
PH1242-1UD-PW 42" 1 Motor; 1 HP 5 amps 70 2471 CFM 90% 1260 watts 90 lbs
PH1248-1UD-PW 48" 1 Motor; 1 HP 5 amps 70 2534 CFM 89% 1345 watts 90 lbs
PH1260-1UD-PW 60" 1 Motor; 1 HP 5 amps 70 2759 CFM 86% 1535 watts 95 lbs
PH1272-2UD-PW+ 72" 2 Motors; 1 HP each 10 amps 73 4646 CFM 93% 2316 watts 155 lbs
PH1284-2UD-PW*+ 84" 2 Motors; 1 HP each 10 amps 73 4942 CFM 90% 2520 watts 175 lbs
PH1296-2UD-PW*+ 96" 2 Motors; 1 HP each 10 amps 73 5068 CFM 89% 2690 watts 180 lbs
PH12120-2UD-PW*+ 120" 2 Motors; 1 HP each 10 amps 75 5518 CFM 86% 3070 watts 270 lbs
PH12144-4UD-PW*+ 144" 4 Motors; 1 HP each 20 amps 75 9292 CFM 93% 4632 watts 310 lbs

*PH12 84" - 144" ship as 2 pieces and are installed in tandem.

+PH12 72" - 120" REQUIRE AN EXTERNAL MOTOR CONTROL PANEL MCPB-2UD AND MCPB-4UD FOR 144" unit.
FREE SHIPPING ON ALL ORDERS!
Mars Air Systems Phantom 12 Series (PH12) Unheated Air Curtain, 208-230/1/60
  • Mars Air Systems Phantom 12 Series (PH12) Unheated Air Curtain, 208-230/1/60
  • Mars Air Systems Phantom 12 Series (PH12) Unheated Air Curtain - 84" - 208/230 Volt - Single-Phase - Pearl White

Product Overview

The Phantom 12 Series (PH12) of Mars Air Doors offers a variety of lengths to provide an environmental barrier to your space of up to 16 feet, while protecting your space from insects up to 14 feet. The PH12 is recessed into the ceiling, blending in to its surroundings while still offering performance and protection to your space.

This unheated, 208-230/1/60 volt, air door also features two 1-horsepower motors and a 15 1/2" depth. It can be recessed into the ceiling for a pleasing, less conspicuous aesthetic in your space and includes a washable polyester filter and features durable aluminum construction. A variety of lengths from 42" to 144" is available. The PH1284-2UD-PW unit is 84" long and includes two 1-hp motors. Some sample installation applications include shipping/receiving doors, customer entrances, cold storage rooms and many more. Ideal installation height is 10' - 12' for the PH12 series.

The PH12 air curtain offers a cost efficient barrier that will blend in to any environment. Its durable metal construction is finished in a powder-coated pearl white finish to meet your design aesthetics. Units 42" to 60" long feature a single motor, units 72" to 120" feature a 2- motor design, and 144" units have 4 motors. Units from 84" - 144" feature a two-piece design and are installed in tandem.

The profile of the PH12 is typically recessed into the ceiling with very little protruding from the ceiling.

Profile of LPV2 Air Curtain
The chart below lays out all the optional lengths available for the PH12, 208-230/1/60 air curtain. The highlighted row is specific to this item. Simply choose your length based on your installation needs. A separate relay or relay with time delay is required to operate the PH12 air curtain.

Door limit switches automatically activate and de-activate (start and stop) the air curtain when the door(s) open and close. A controller that offers time delayed control reduces the cycling of the air curtain motors in high traffic areas (10+ times/hour). This type of controller will delay the unit from turning off when the door closes. They can usually be set from 6 seconds to up to 20 minutes. Available door switches and controllers for the PH12, 208-230/1/60 unit include:

  • Controller J0022 - Commercial low voltage controller, 208-230V, 1Ø, adjustable time delay, with commercial plastic surface mounted door limit switch (field installed)
  • Door Limit Switch (99-014) - Combination Plunger/Roller mechanical
  • Aluminum Switch (99-124) - Floor-mounted
  • Aluminum Switch (99-125) - Surface-mounted
  • A separate externally mounted control panel is required for use with 99-124 and 99-125. The MCPB-1UD for single motor units (42" - 60")MCPB-2UD for 2-motor units (72" - 120") AND MCPB-4UD FOR 144" unit (4 motors).
ModelLengthMotor/HPFull Load
Amps
Sound
(dBA)
Max. Volume
(CFMs)
Uniformity
(%)
Power Rating
(Watts)
Weight
PH1242-1UD-PW 42" 1 Motor; 1 HP 5 amps 70 2471 CFM 90% 1260 watts 90 lbs
PH1248-1UD-PW 48" 1 Motor; 1 HP 5 amps 70 2534 CFM 89% 1345 watts 90 lbs
PH1260-1UD-PW 60" 1 Motor; 1 HP 5 amps 70 2759 CFM 86% 1535 watts 95 lbs
PH1272-2UD-PW+ 72" 2 Motors; 1 HP each 10 amps 73 4646 CFM 93% 2316 watts 155 lbs
PH1284-2UD-PW*+ 84" 2 Motors; 1 HP each 10 amps 73 4942 CFM 90% 2520 watts 175 lbs
PH1296-2UD-PW*+ 96" 2 Motors; 1 HP each 10 amps 73 5068 CFM 89% 2690 watts 180 lbs
PH12120-2UD-PW*+ 120" 2 Motors; 1 HP each 10 amps 75 5518 CFM 86% 3070 watts 270 lbs
PH12144-4UD-PW*+ 144" 4 Motors; 1 HP each 20 amps 75 9292 CFM 93% 4632 watts 310 lbs

*PH12 84" - 144" ship as 2 pieces and are installed in tandem.

+PH12 72" - 120" REQUIRE AN EXTERNAL MOTOR CONTROL PANEL MCPB-2UD AND MCPB-4UD FOR 144" unit.

Tech Specs

Max. Door/Window Height (ft.):
16
Max. Height Insect Block (ft.):
14
Heat:
No
Horsepower:
1 (per motor)
Voltage:
208-230V
Depth (in.):
26
Height (in.):
17
Length (in.):
84
Certifications:
ETL Listed, AMCA
Parts Warranty:
5 Years
Product Type:
Unheated
