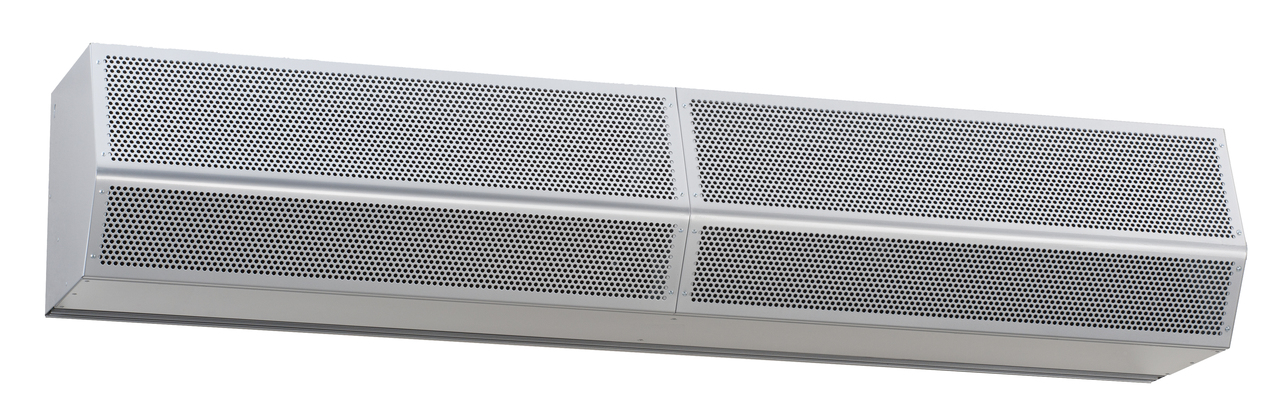

Mars Air Systems High Velocity (HV2) Unheated Air Curtain - 84" - 115 Volt - Titanium Silver

Sku:
MARS-HV284-2UA-TS
Usually Leaves Warehouse in 6 to 8 Weeks
$2,625.00

The High Velocity 2 Series (HV2) of Mars Air Doors features 1 horsepower motors for efficient wind loads up to 14 ft. high and offers a variety of lengths to provide an environmental barrier at that height. It can also protect your space from insects up to 12 feet.

This unheated, 115 volt air door is easy to install. It includes two 1-HP motors and features durable metal construction with a corrosion resistant powder coated Titanium Silver finish. A variety of lengths from 36" to 144" is available. The HV284-2UA-TS is 84" long and features two 1-horsepower motors. Some sample installation applications include shipping/receiving doors, customer entrances, cold storage rooms and many more. Ideal installation height is 10' - 12' for the HV2 series. Units 72" to 96" feature a 2- motor design. 108" - 144" units have 3 motors. The 120" unit is also available in a 2- motor design - please call Customer Service for pricing and lead time. All HV2 units ship as a single unit, regardless of length.

The profile of the HV2 is not considered low profile at 14" high.

Profile of HV2 Air Curtain

The chart below lays out all the optional lengths available for the unheated, 115 volt HV2 air curtain. The highlighted row is specific to this unit. Simply choose your length based on your installation needs. A separate relay or relay with time delay is required to operate the HV2 air curtain.

Door limit switches automatically activate and de-activate (start and stop) the air curtain when the door(s) open and close. A controller that offers time delayed control reduces the cycling of the air curtain motors in high traffic areas (10+ times/hour). This type of controller will delay the unit from turning off when the door closes. They can usually be set from 6 seconds to up to 20 minutes. Available door switches and controllers for the PH10, 115V unit include:

  • Controller J0021 - Commercial low voltage controller, 115V, 1Ø, adjustable time delay, with commercial plastic surface mounted door limit switch (field installed)
  • Door Limit Switch (99-014) - Combination Plunger/Roller mechanical
  • Aluminum Switch (99-124) - Floor-mounted
  • Aluminum Switch (99-125) - Surface-mounted
  • A separate externally mounted control panel is required for use with 99-124 and 99-125. The MCPB-1UA for single motor units (36" - 48")MCPB-2UA for 2-motor units (60" - 96"); MCPB-3UA for 3-motor units (108" - 144").
ModelLengthMotor/HPFull Load
Amps
Sound
(dBA)
Max. Volume
(CFMs)
Uniformity
(%)
Power Rating
(Watts)
Weight
HV236-1UA-TS 36" 1 Motor; 1 HP 9 amps 70 2059 CFM 90% 1245 watts 115 lbs
HV242-1UA-TS 42" 1 Motor; 1 HP 9 amps 70 2322 CFM 93% 1305 watts 120 lbs
HV248-1UA-TS 48" 1 Motor; 1 HP 9 amps 70 2447 CFM 88% 1360 watts 125 lbs
HV260-1UA-TS 60" 1 Motor; 1 HP 9 amps 70 2760 CFM 80% 1560 watts 140 lbs
HV272-2UA-TS+ 72" 2 Motors; 1 HP each 18 amps 73 4118 CFM 90% 2490 watts 220 lbs
HV284-2UA-TS+ 84" 2 Motors; 1 HP each 18 amps 73 4644 CFM 93% 2610 watts 235 lbs
HV296-2UA-TS+ 96" 2 Motors; 1 HP each 18 amps 73 4894 CFM 88% 2720 watts 250 lbs
HV2108-3UA-TS+ 108" 3 Motors; 1 HP each 27 amps 75 6177 CFM 90% 3735 watts 330 lbs
HV2120-3UA-TS+ 120" 3 Motors; 1 HP each 27 amps 75 6693 CFM 93% 3615 watts 345 lbs
HV2144-3UA-TS+ 144" 3 Motors; 1 HP each 27 amps 75 7341 CFM 88% 4080 watts 375 lbs

+HV2 72" - 96" REQUIRE AN EXTERNAL MOTOR CONTROL PANEL MCPB-2UA AND 108" - 144" REQUIRE MCPB-3UA.
FREE SHIPPING ON ALL ORDERS!
Mars Air Systems High Velocity (HV2) Unheated Air Curtain, 115 Volt
  • +1

Product Overview

The High Velocity 2 Series (HV2) of Mars Air Doors features 1 horsepower motors for efficient wind loads up to 14 ft. high and offers a variety of lengths to provide an environmental barrier at that height. It can also protect your space from insects up to 12 feet.

This unheated, 115 volt air door is easy to install. It includes two 1-HP motors and features durable metal construction with a corrosion resistant powder coated Titanium Silver finish. A variety of lengths from 36" to 144" is available. The HV284-2UA-TS is 84" long and features two 1-horsepower motors. Some sample installation applications include shipping/receiving doors, customer entrances, cold storage rooms and many more. Ideal installation height is 10' - 12' for the HV2 series. Units 72" to 96" feature a 2- motor design. 108" - 144" units have 3 motors. The 120" unit is also available in a 2- motor design - please call Customer Service for pricing and lead time. All HV2 units ship as a single unit, regardless of length.

The profile of the HV2 is not considered low profile at 14" high.

Profile of HV2 Air Curtain

The chart below lays out all the optional lengths available for the unheated, 115 volt HV2 air curtain. The highlighted row is specific to this unit. Simply choose your length based on your installation needs. A separate relay or relay with time delay is required to operate the HV2 air curtain.

Door limit switches automatically activate and de-activate (start and stop) the air curtain when the door(s) open and close. A controller that offers time delayed control reduces the cycling of the air curtain motors in high traffic areas (10+ times/hour). This type of controller will delay the unit from turning off when the door closes. They can usually be set from 6 seconds to up to 20 minutes. Available door switches and controllers for the PH10, 115V unit include:

  • Controller J0021 - Commercial low voltage controller, 115V, 1Ø, adjustable time delay, with commercial plastic surface mounted door limit switch (field installed)
  • Door Limit Switch (99-014) - Combination Plunger/Roller mechanical
  • Aluminum Switch (99-124) - Floor-mounted
  • Aluminum Switch (99-125) - Surface-mounted
  • A separate externally mounted control panel is required for use with 99-124 and 99-125. The MCPB-1UA for single motor units (36" - 48")MCPB-2UA for 2-motor units (60" - 96"); MCPB-3UA for 3-motor units (108" - 144").
ModelLengthMotor/HPFull Load
Amps
Sound
(dBA)
Max. Volume
(CFMs)
Uniformity
(%)
Power Rating
(Watts)
Weight
HV236-1UA-TS 36" 1 Motor; 1 HP 9 amps 70 2059 CFM 90% 1245 watts 115 lbs
HV242-1UA-TS 42" 1 Motor; 1 HP 9 amps 70 2322 CFM 93% 1305 watts 120 lbs
HV248-1UA-TS 48" 1 Motor; 1 HP 9 amps 70 2447 CFM 88% 1360 watts 125 lbs
HV260-1UA-TS 60" 1 Motor; 1 HP 9 amps 70 2760 CFM 80% 1560 watts 140 lbs
HV272-2UA-TS+ 72" 2 Motors; 1 HP each 18 amps 73 4118 CFM 90% 2490 watts 220 lbs
HV284-2UA-TS+ 84" 2 Motors; 1 HP each 18 amps 73 4644 CFM 93% 2610 watts 235 lbs
HV296-2UA-TS+ 96" 2 Motors; 1 HP each 18 amps 73 4894 CFM 88% 2720 watts 250 lbs
HV2108-3UA-TS+ 108" 3 Motors; 1 HP each 27 amps 75 6177 CFM 90% 3735 watts 330 lbs
HV2120-3UA-TS+ 120" 3 Motors; 1 HP each 27 amps 75 6693 CFM 93% 3615 watts 345 lbs
HV2144-3UA-TS+ 144" 3 Motors; 1 HP each 27 amps 75 7341 CFM 88% 4080 watts 375 lbs

+HV2 72" - 96" REQUIRE AN EXTERNAL MOTOR CONTROL PANEL MCPB-2UA AND 108" - 144" REQUIRE MCPB-3UA.

Tech Specs

  • Max. Door/Window Height (ft.):
    14
  • Max. Height Insect Block (ft.):
    12
  • Heat:
    No
  • Horsepower:
    1 (per motor)
  • Voltage:
    110-120V
  • Depth (in.):
    15.625
  • Height (in.):
    14
  • Length (in.):
    84
  • Certifications:
    ETL Listed, AMCA
  • Parts Warranty:
    5 Years
  • Product Type:
    Unheated
