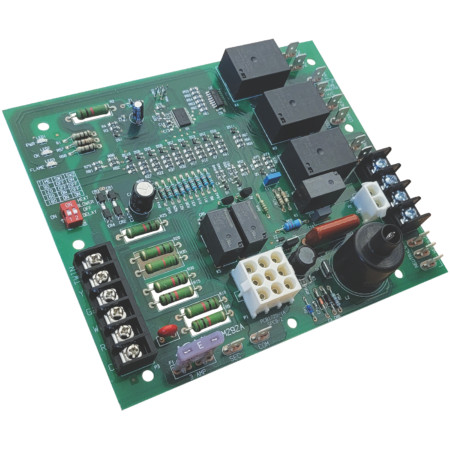

ICM ICM292A Rheem Direct Spark Ignition (DSI) Replacement Control Module / Board

Sku:
ICM-ICM292A
In Stock, Ships Next Business Day
$176.97

The ICM292A Rheem Direct Spark Ignition (DSI) Replacement Control Module / Board. The ICM288 replaces Rheem 62-24140-04 circuit boards. ICM has incorporated LED diagnostics to assist in troubleshooting.

  • Direct Spark Ignition (DSI) control
  • Microprocessor-based
  • Controls induced draft and indoor blower motor; humidifier output, spark ignitor and gas valve
  • Monitors timing, trial for ignition, flame sensing and lockout
  • 100% lockout safety feature
  • Compatible with LP or natural gas
  • Status LEDs for fault codes to aid in troubleshooting

Specifications:

  • Control Voltage: 24 VAC (18-30 VAC), 60 Hz
  • Line Voltage: 115 VAC, 60 Hz
  • Power cons: 0.3A plus gas valve current at 24 VAC
  • Operating temp: -40°F to 176°F (-40°C to 75°C)

Timing:

  • Pre-purge: 30 seconds
  • Trial for ignition: 7 seconds
  • Retries: Two groups of two, 30 seconds delay within the group and 3 minutes delay between groups
  • Lockout: 1 hour
  • Post-purge: 90, 120, 160 and 180 seconds

Inputs:

  • Power: 24 VAC and COM
  • Thermostat interface: R, W, Y and G
  • System switches: Vent pressure and limit switches (main and over-temperature switches in series)
  • Flame Sensing
  • Heat blower OFF delay: SW1 toggle switch

Outputs:

  • Gas Valve: 3A Pilot Duty @ 120 VAC
  • Draft Inducer Motor: 3A max., 1/6 HP @ 125 VAC
  • Cool Blower: 16A max., 1/2 HP @ 277 VAC
  • Heat Blower: 14A max., 1/2 HP @ 277 VAC
  • Circulating Fan:12A max., 1 HP @ 125 VAC
  • Heat/Cool Fan: 10 A max., 1/2 HP @ 277 VAC
  • Electronic Air Cleaner: 10 A max., 1HP @ 125 VAC
  • Humidifier: 11 A max., 1/6 HP @ 125 VAC

LED Indicators:

  • Power, green LED: PWR
  • Status, green LED: OK
  • Flame status, yellow LED: FLAME

Dimensions:

  • 2.25"h x 6.6"w x 5.75"l

Replaces:

Rheem: 62-24140-04
