Product Overview

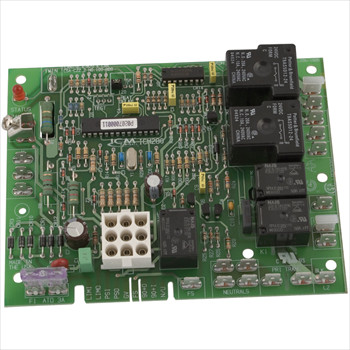

The ICM280 Goodman Replacement Furnace Control Module / Board. This board can be used as a replacement for several brands circuit boards including Goodman, UTEC, Texas Instruments and White-Rodgers. Among its standard safety features it includes 100% gas shut-off in case of ignition failure.
- Microprocessor based design for precise timing
- Functions with all 24 VAC thermostats
- Diagnostic fault codes (blinking LED) for simple troubleshooting
- Twinning compatible with another ICM280
- For 80+ and 90+ applications
- 9-pin card slot connection and 9-pin Molex connector on board
- UL recognized
Specifications:
- Line Voltage Range: 98 to 132 VAC @ 60 Hz
- Ignitor: 5A @ 120 VAC
- Fan: 2 HP @ 240 VAC
- Inducer Motor: 7A @ 250 VAC
- Gas Valve: 1A @ 24 VAC
Dimensions:
- 1"h x 5.75"w x 4.75"l
Replaces:
- Goodman: B18099-06, B18099-08, B18099-10, B18099-13, B18099-13S
- UTEC: 1012-933D
- Texas Instruments: 41F-5
- White-Rodgers: 50T35-730, 50T35-743
