Product Overview

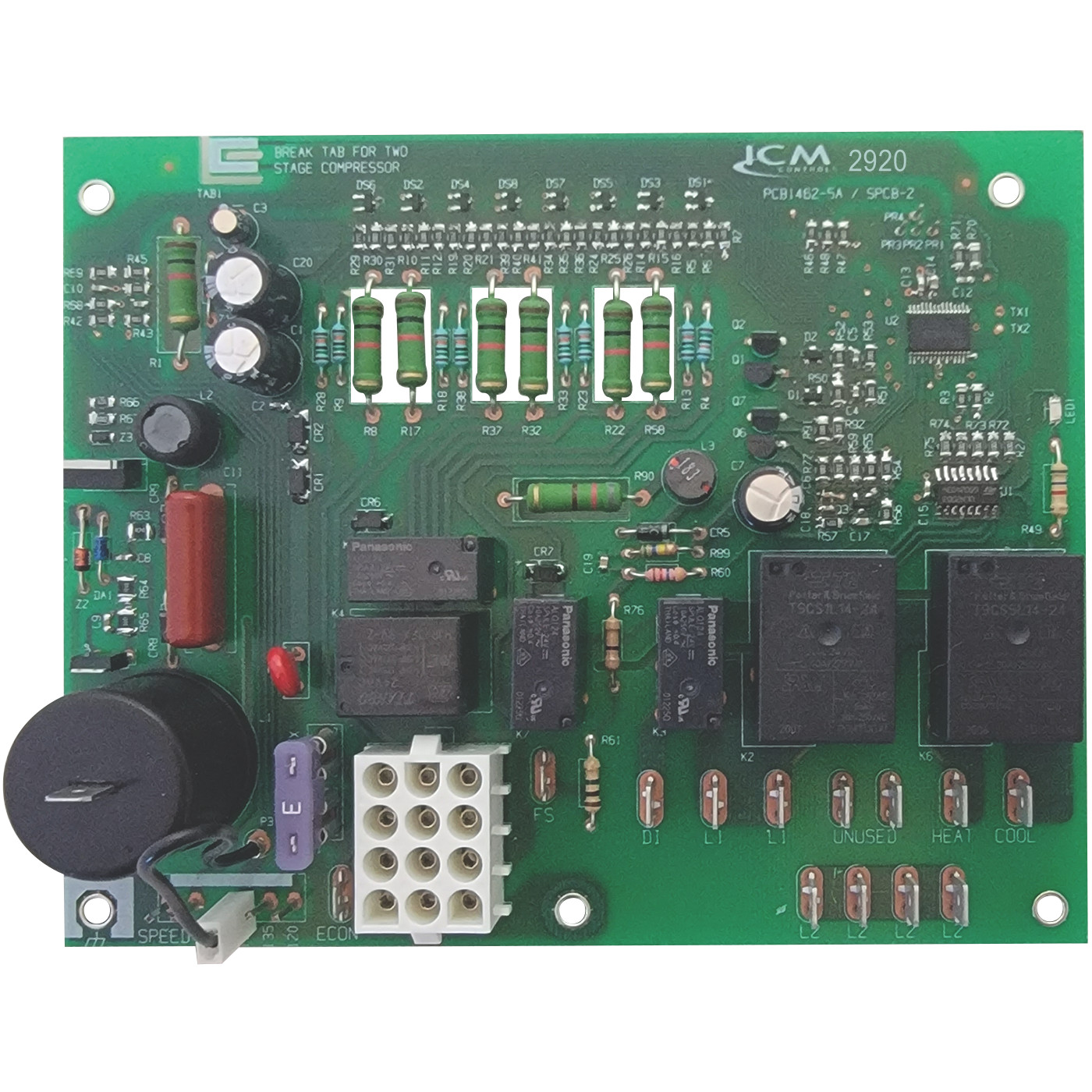

The ICM2920 Goodman Replacement Furnace Control Module / Board. This board controls blower motors, gas valve, & spark ignitor in sequence.
- Powers a cooling compressor & protects against short-cycling
- Selectable heat blower off-delay time
- Control can be used for 2-stage cooling by removing a tab
- Flash codes from the onboard LED indicate specific problems for easier troubleshooting
- Repeated ignition failures or flame losses will disable heat operation for safety
Specifications:
- Line voltage: 24VAC (RMS)
- Line frequency: 50/60 Hz
- Control voltage: 18-30 VAC, 0.15A maximum
- Fuse rating: 3 A
- Relay:
- Heat/cool N.O.: 24 VAC
- Heat/cool N.C.: 24 VAC
- Inducer: 24 VAC
- Gas valve: 1.5A @ 24 VAC pilot duty
- Compressor contactor: 1.0 A @ 24 VAC
Dimensions:
- 6.5"l x 5.15"w x 3"d
Replaces:
Goodman: PCBAG123, PCBAG123S direct spark ignition controls
