Product Overview

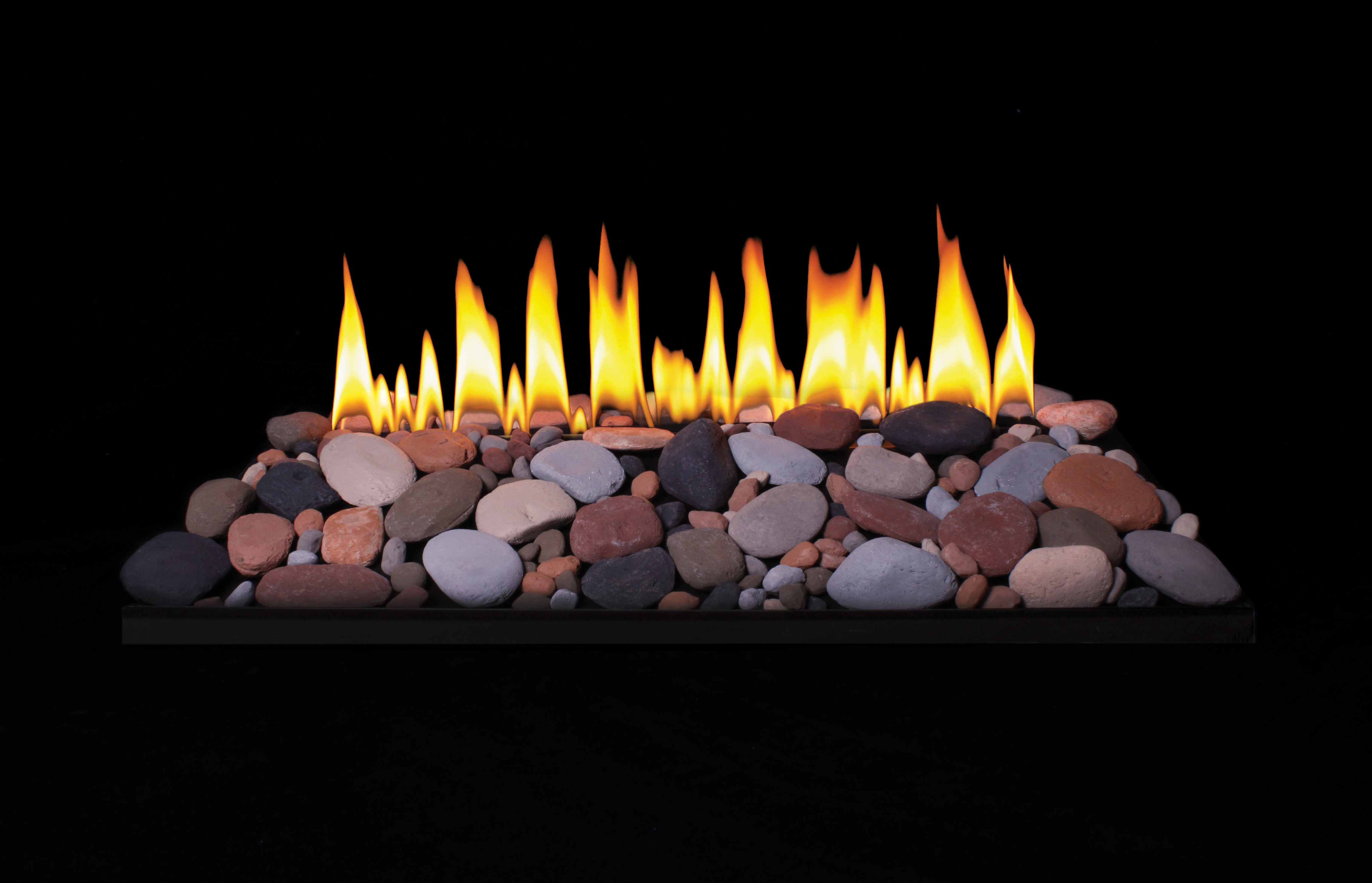

The Vent Free Loft Series Contemporary Burner features a beautiful display of flames with or without the addition of decorative media. This burner includes a millivolt valve and features ON/OFF operation and can be controlled manually or by remote or wall switch (sold separately). There is no flame control or temperature adjustment with this burner. You have the option of using a thermostat, a remote or a combination thermostat and remote. It DOES NOT include a remote or a thermostat.
- Front and Rear width - 32"
- Depth - 17.5"
- Height - 18"
Other features of the Loft Contemporary burner include:
- Vented/Vent Free
- Approved for use in any certified multi-sided vent-free firebox
- May be installed in an existing see-through wood-burning fireplace, with the damper closed, to operate as a vent-free heating system
- Also certified for installation as vented, so long as the installer blocks the fireplace damper partially open. A special flue-damper clamp is included with burner
*An additional main burner orifice is provided in instruction package envelope to reduce input of the vented burner assembly. As a vented product, this item can only be used as a decorative gas appliance and the damper must be open. Thermostats and thermostat remotes cannot be used when installed in a vented application.
- Natural Gas:
- Regular Pressure Setting: 3.5" W.C.
- Gas Inlet Pressure Max: 10.5" W.C.
- Gas Inlet Pressure Min: 4.5" W.C.
- Liquid Propane:
- Regular Pressure Setting: 10.0" W.C.
- Gas Inlet Pressure Max: 13.0" W.C.
- Gas Inlet Pressure Min: 11.0" W.C.
Tech Specs
WARNING!
