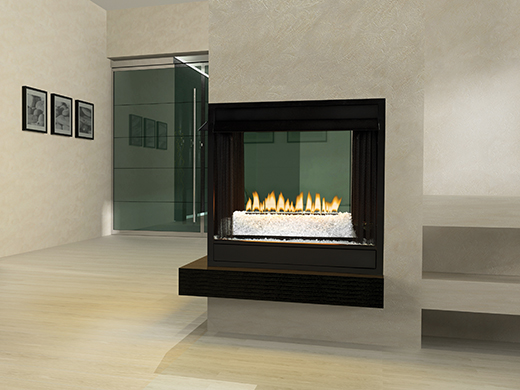

The Multi-Sided Loft Series Contemporary vent free burner is specifically designed for use on its own or with the addition of glass or rock media. It is designed to be used in a multi-sided vent-free fireplace and can also be used in a traditional, see-through flue vented fireplace - the flue must be open for this installation and it is only for use as a decorative appliance. This VFIU Vent-Free Burner includes an Oxygen Depletion System to quickly shut off the gas if room oxygen levels drop to unsafe levels. All White Mountain Hearth burners include a standing pilot for instant starts. All you need is the media of your choice. So toss out the matches, turn on the valve and curl up by the warm fire for a comfy night at home!

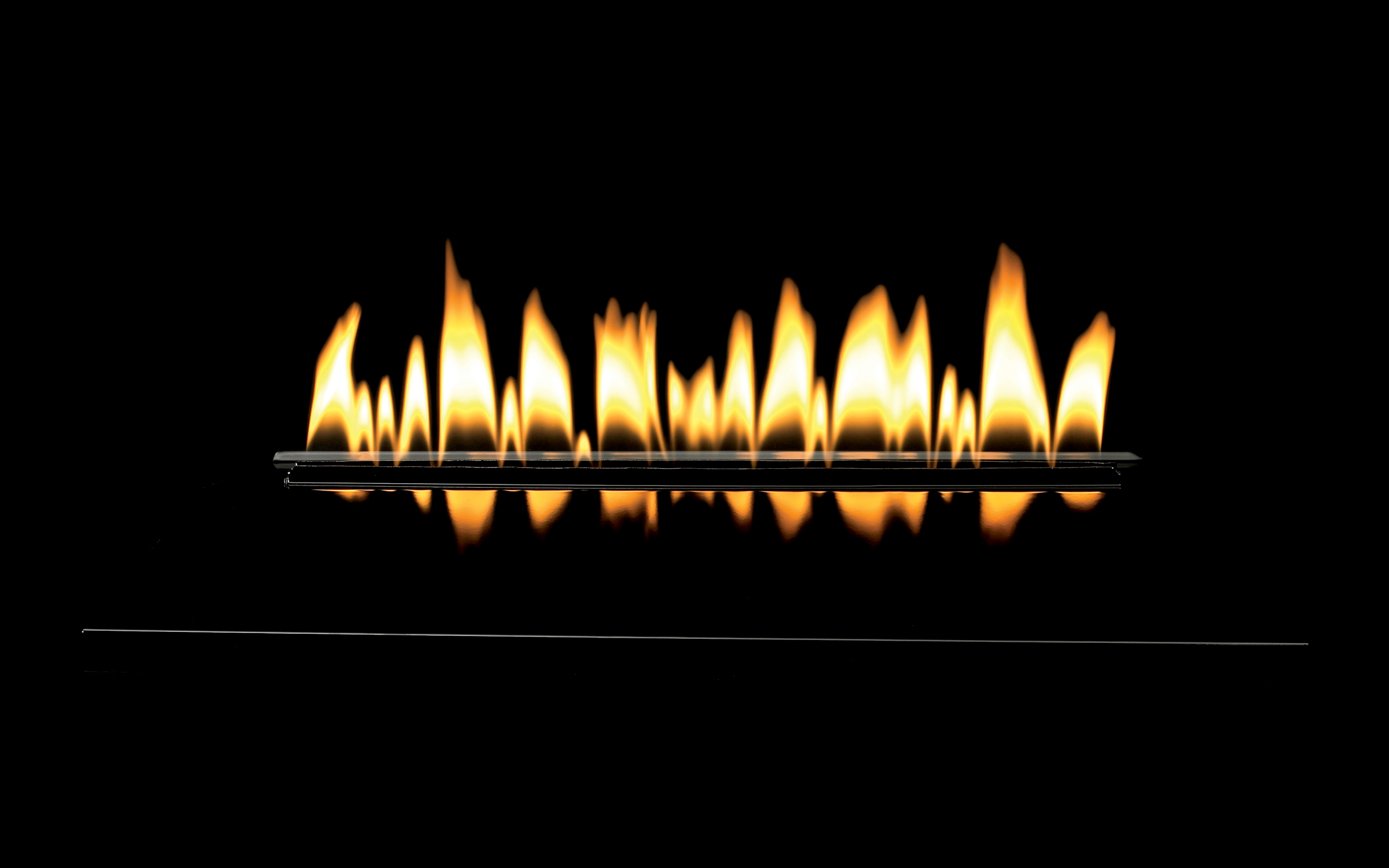

The Vent Free Loft Series Contemporary Burner features a beautiful display of flames with or without the addition of decorative media. This burner includes an electronic ignition that can be controlled on the remote. The remote can also control the thermostat as well as flame height. If this multi-sided loft burner is installed in a vented application, it CANNOT be used with a thermostat or remote and the damper must be clamped in an open position. It can only be used as a decorative appliance in an vented installation.

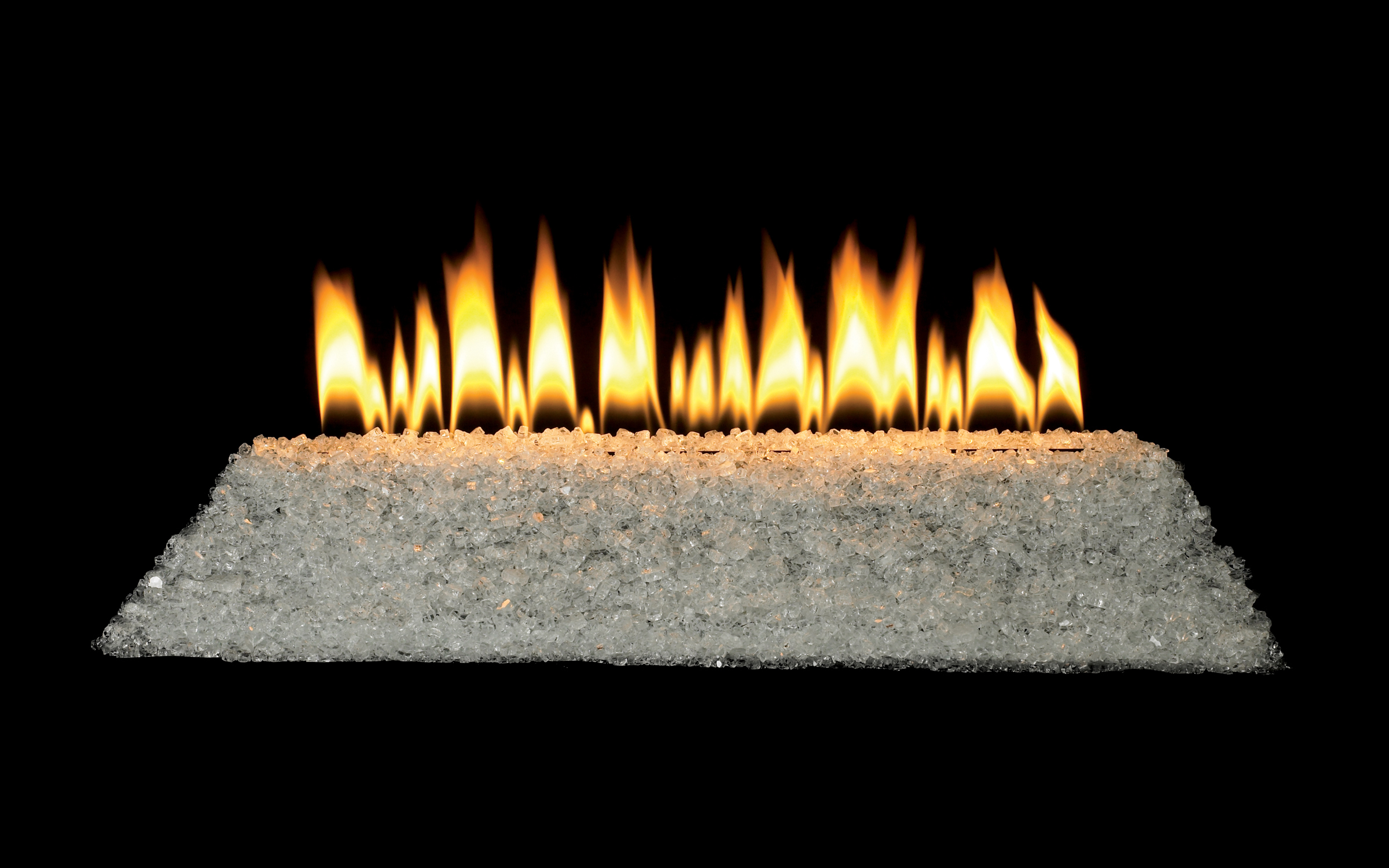

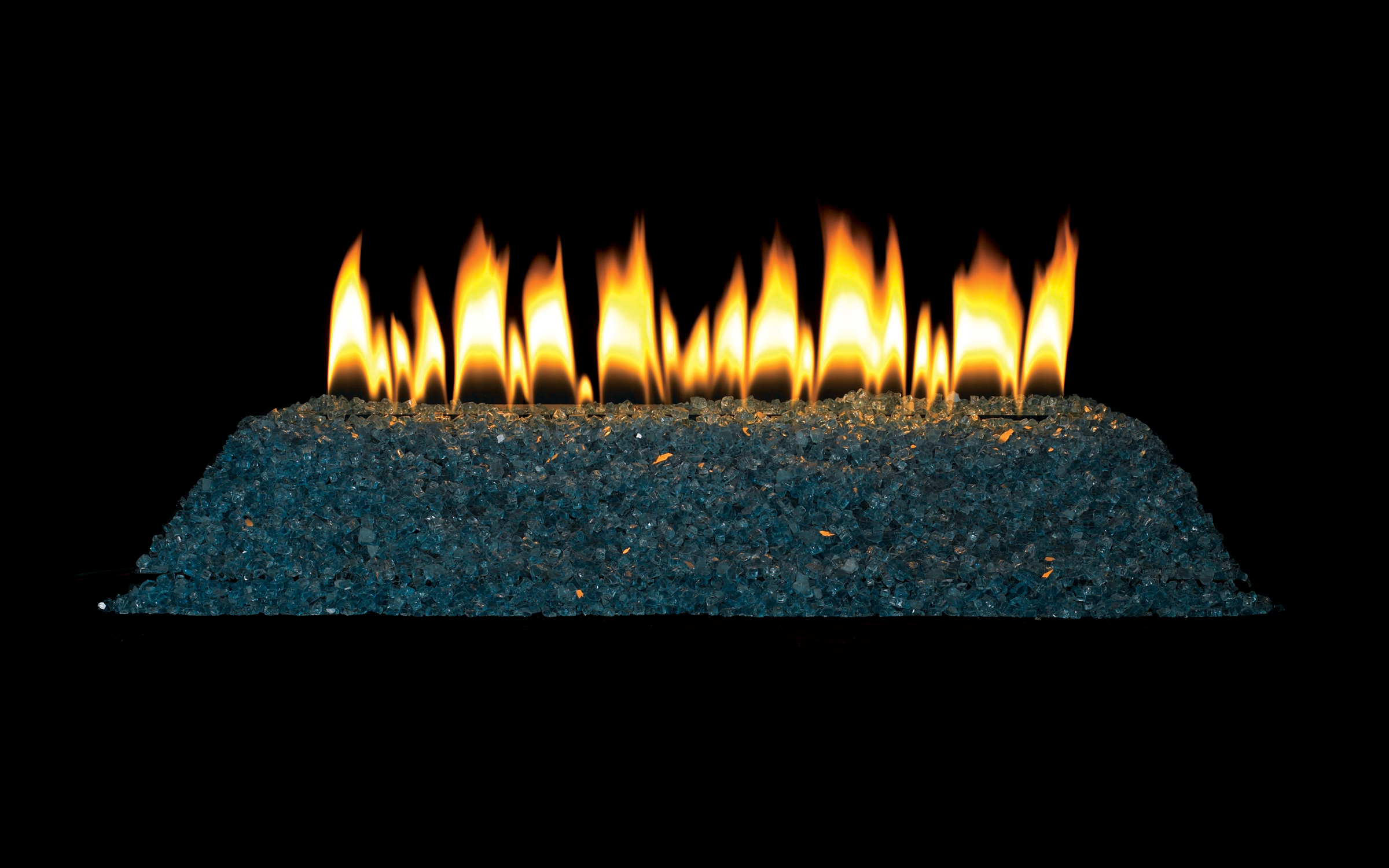

If you choose to enhance your Multi-sided Loft Contemporary Burner with decorative glass, two bags of glass media is recommended for full coverage for the VFIU24 burners. We have packaged the decorative glass and rocks in appropriated packages for use with the VFIU24. They are also available separately.
With a max. input of 36,000 BTUs, the VFIU24N is a Natural Gas Burner. It is also available in Liquid Propane (VFIU24P). Additionally, minimum fireplace clearances for the VFIU24 are
- Front and Rear width - 32"
- Depth - 17.5"
- Height - 18"
Other features of the Loft Contemporary burner include:
- Vented/Vent Free
- Approved for use in any certified multi-sided vent-free firebox
- May be installed in an existing see-through wood-burning fireplace, with the damper closed, to operate as a vent-free heating system
- Also certified for installation as vented, so long as the installer blocks the fireplace damper partially open. A special flue-damper clamp is included with burner. Thermostats and remotes cannot be used in a vented application.
This appliance may be installed in an aftermarket permanently located, manufactured (mobile) home, where not prohibited by local codes.
A licensed gas technician is required for installation of this product. Please check your local regulations as some areas may require inspection after installation of gas products. It is highly recommended that you use your own gas technician or gas provider for any repairs.
*An additional main burner orifice is provided in instruction package envelope to reduce input of the vented burner assembly. As a vented product, this item can only be used as a decorative gas appliance and the damper must be open. Thermostats and thermostat remotes cannot be used when installed in a vented application.
- Natural Gas:
- Regular Pressure Setting: 3.5" W.C.
- Gas Inlet Pressure Max: 10.5" W.C.
- Gas Inlet Pressure Min: 4.5" W.C.
- Liquid Propane:
- Regular Pressure Setting: 10.0" W.C.
- Gas Inlet Pressure Max: 13.0" W.C.
- Gas Inlet Pressure Min: 11.0" W.C.
