RH Peterson Real-Fyre GX45-30 / APK-17N 30" Triple T Vented Burner with Heavy Duty Grate and Automatic Pilot and Variable Flame Remote - Natural Gas

Sku:
RH-PETERSON-GX4530-APK17N
Usually Leaves Warehouse in 2 - 3 Business Days
$1,134.00
Burners are certified to work with SPECIFIC Log Sets only. While there may be several allowable Log Sets for a specific burner, they are NOT universal. Using a burner with a non-compatible log set can lead to Fire, Carbon Monoxide Poisoning and Property Damage.
The GX45 burner is a Triple T burner system. It consists of a main burner tube that extends down the middle and a smaller front flame burner that "T"s off the main burner. The additional front flame allows you to position the burner directly beneath the logs helping to accentuate the front flame. This specialized burner also gives you a nice bed of glowing embers under beautiful dancing flames. With its front pipe, there are three additional spaces for the flames to come through, adding more depth to your fire. The G45 burner, regardless of the pilot valve chosen, will still give you dancing flames across the length of the burner tubes and your glowing embers will glow nicely, for a more realistic fire.

The GX45 Burner system for 30" log sets requiring a heavy duty grate includes:
  • Burner pan
  • Heavy Duty Grate
  • Glowing embers
  • Vermiculite
  • Burner clips
  • Flex connector kit
  • APK-17 Automatic Pilot and Variable Remote included
Log Set sold separately.

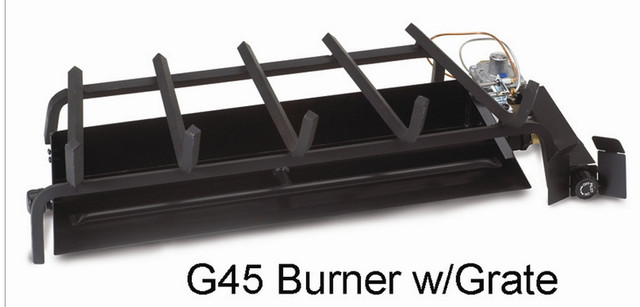

Burner shown in photo is standard grate and SPK-26 safety valve. This burner includes the heavy duty grate and APK-17 valve kit.
FREE SHIPPING ON ALL ORDERS!
RH Peterson Real-Fyre GX45-30 / APK-17N 30" Triple T Vented Burner with Heavy Duty Grate and Automatic Pilot and Variable Flame Remote  - Natural Gas
  • RH Peterson Real-Fyre GX45-30 / APK-17N 30" Triple T Vented Burner with Heavy Duty Grate and Automatic Pilot and Variable Flame Remote  - Natural Gas
  • RH Peterson Real-Fyre GX45-30 / APK-17N 30" Triple T Vented Burner with Heavy Duty Grate and Automatic Pilot and Variable Flame Remote  - Natural Gas

Product Overview

Burners are certified to work with SPECIFIC Log Sets only. While there may be several allowable Log Sets for a specific burner, they are NOT universal. Using a burner with a non-compatible log set can lead to Fire, Carbon Monoxide Poisoning and Property Damage.
The GX45 burner is a Triple T burner system. It consists of a main burner tube that extends down the middle and a smaller front flame burner that "T"s off the main burner. The additional front flame allows you to position the burner directly beneath the logs helping to accentuate the front flame. This specialized burner also gives you a nice bed of glowing embers under beautiful dancing flames. With its front pipe, there are three additional spaces for the flames to come through, adding more depth to your fire. The G45 burner, regardless of the pilot valve chosen, will still give you dancing flames across the length of the burner tubes and your glowing embers will glow nicely, for a more realistic fire.

The GX45 Burner system for 30" log sets requiring a heavy duty grate includes:
  • Burner pan
  • Heavy Duty Grate
  • Glowing embers
  • Vermiculite
  • Burner clips
  • Flex connector kit
  • APK-17 Automatic Pilot and Variable Remote included
Log Set sold separately.


Burner shown in photo is standard grate and SPK-26 safety valve. This burner includes the heavy duty grate and APK-17 valve kit.

Tech Specs

General Features

Fireplace Style:
Single Sided
Location of Use:
Indoor
Type of Venting:
Vented
Media Style:
Traditional Log Set
Type of Grate:
Heavy Duty
Fuel Type:
Natural Gas (NG)
Allowable Log Set Sizes (in.):
30"
Allowable Log Sets:
Royal English Oak Designer
Certified Usage:
Mobile Home Approved

Performance

BTUs (Max.):
95000
Ignition Type:
Millivolt (Remote Ready)
Remote:
Variable Flame Remote Included

Gas Requirements

Gas Connection Size (in.):
1/2"
Manifold Pressure (in.):
NA
Inlet Gas Pressure (Min.):
5.0" w.c.
Inlet Gas Pressure (Max.):
10.5" w.c.

Minimum Firebox Requirements

Requirements for 30" Logs

Req. Min. Front Width (in.):
40"
Req. Min. Rear Width (in.):
34"
Req. Min. Depth (in.):
16"
Req. Min. Height (in.):
17"
