RH Peterson Real-Fyre G4530N 30" Triple T Vented Burner - Natural Gas

Sku:
RH-PETERSON-G4530N
Usually Leaves Warehouse in 2 - 3 Business Days
$397.80
Burners are certified to work with SPECIFIC Log Sets only. While there may be several allowable Log Sets for a specific burner, they are NOT universal. Using a burner with a non-compatible log set can lead to Fire, Carbon Monoxide Poisoning and Property Damage.

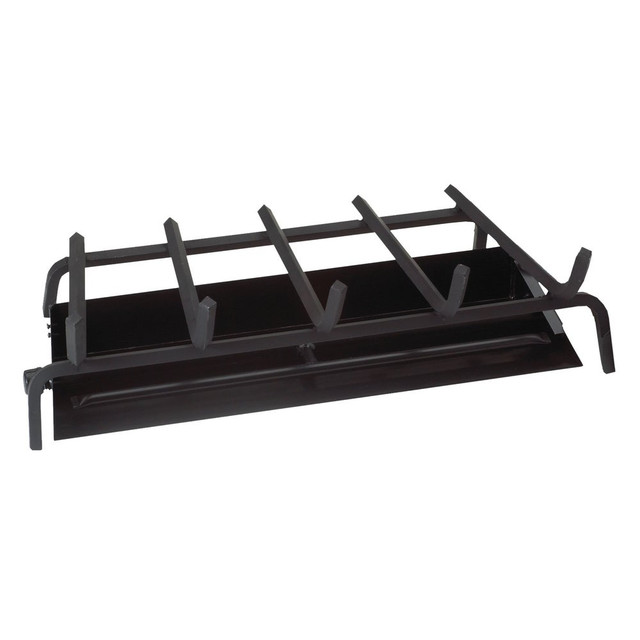

The G45 burner is a Triple T Burner. It consists of a main burner tube that extends down the middle and a smaller front flame burner that "T"s off the main burner. The additional front flame allows you to position the burner directly beneath the logs helping to accentuate the front flame. This specialized burner also gives you a nice bed of glowing embers under beautiful dancing flames. With its front pipe, there are three additional spaces for the flames to come through, adding more depth to your fire. The G45 burner, regardless of the pilot valve chosen, will still give you dancing flames across the length of the burner tubes and your glowing embers will glow nicely, for a more realistic fire.

The G45 Burner system includes:
  • Burner pan
  • Grate
  • Glowing embers
  • Vermiculite
  • Burner clips
  • Flex connector kit
  • Damper clamp
Log Set sold separately.
FREE SHIPPING ON ALL ORDERS!
RH Peterson Real-Fyre G4530N 30" Triple T Vented Burner - Natural Gas
  • RH Peterson Real-Fyre G4530N 30" Triple T Vented Burner - Natural Gas
  • RH Peterson Real-Fyre G4530N 30" Triple T Vented Burner - Natural Gas

Product Overview

Burners are certified to work with SPECIFIC Log Sets only. While there may be several allowable Log Sets for a specific burner, they are NOT universal. Using a burner with a non-compatible log set can lead to Fire, Carbon Monoxide Poisoning and Property Damage.
The G45 burner is a Triple T Burner. It consists of a main burner tube that extends down the middle and a smaller front flame burner that "T"s off the main burner. The additional front flame allows you to position the burner directly beneath the logs helping to accentuate the front flame. This specialized burner also gives you a nice bed of glowing embers under beautiful dancing flames. With its front pipe, there are three additional spaces for the flames to come through, adding more depth to your fire. The G45 burner, regardless of the pilot valve chosen, will still give you dancing flames across the length of the burner tubes and your glowing embers will glow nicely, for a more realistic fire.

The G45 Burner system includes:
  • Burner pan
  • Grate
  • Glowing embers
  • Vermiculite
  • Burner clips
  • Flex connector kit
  • Damper clamp
Log Set sold separately.

Tech Specs

General Features

Fireplace Style:
Single Sided
Location of Use:
Indoor
Type of Venting:
Vented
Media Style:
Traditional Log Set
Type of Grate:
Standard
Fuel Type:
Natural Gas (NG)
Allowable Log Set Sizes (in.):
30"
Allowable Log Sets:
Real-Fyre Gas Log Set Not Included
Certified Usage:
Mobile Home Approved

Performance

BTUs (Max.):
95000
Ignition Type:
Manual (No Remote)
Remote:
Not Available

Gas Requirements

Gas Connection Size (in.):
1/2"
Manifold Pressure (in.):
NA
Inlet Gas Pressure (Min.):
5.0" w.c.
Inlet Gas Pressure (Max.):
10.5" w.c.

Minimum Firebox Requirements

Requirements for 30" Logs

Req. Min. Front Width (in.):
40"
Req. Min. Rear Width (in.):
34"
Req. Min. Depth (in.):
16"
Req. Min. Height (in.):
17"
Chimney Height (Min. ft.):
15'
