RH Peterson Real-Fyre G424P 24" Glowing Ember Vented Burner with Safety Valve - Liquid Propane

Sku:
RH-PETERSON-G424P
Usually Leaves Warehouse in 2 - 3 Business Days
$459.00
Burners are certified to work with SPECIFIC Log Sets only. While there may be several allowable Log Sets for a specific burner, they are NOT universal. Using a burner with a non-compatible log set can lead to Fire, Carbon Monoxide Poisoning and Property Damage.

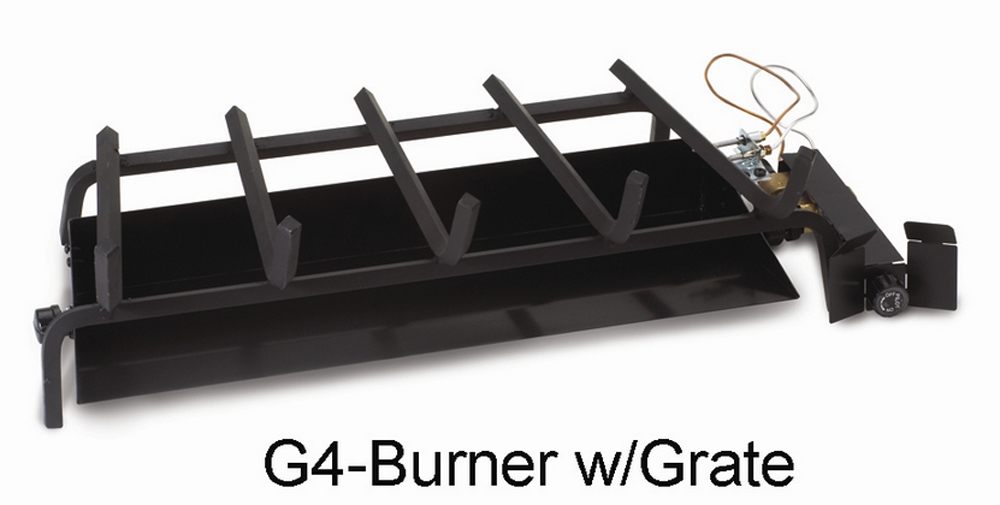

The G4 burner is a glowing ember burner system that features single tube burner that runs through the center. It is a base model burner. Your flames will dance across the length of the burner tube. However, the glowing embers will not glow as brightly and it does not offer additional front flames as with a G45 burner.

At Total Home Supply, we include SPK26 safety pilot with the G4 manual burner whether you order for Natural Gas or Liquid Propane.

The G4 Burner system includes:
  • Burner pan
  • Grate
  • Glowing embers
  • Vermiculite
  • Burner clips
  • Flex connector kit
  • Damper clamp
  • SPK-26 Safety Valve included with this burner
Log set is sold separately.
FREE SHIPPING ON ALL ORDERS!
RH Peterson Real-Fyre G4-24 24" Glowing Ember Vented Burner with Safety Valve - Liquid Propane
  • RH Peterson Real-Fyre G4-24 24" Glowing Ember Vented Burner with Safety Valve - Liquid Propane
  • RH Peterson Real-Fyre G424P 24" Glowing Ember Vented Burner with Safety Valve - Liquid Propane
  • RH Peterson Real-Fyre G424P 24" Glowing Ember Vented Burner with Safety Valve - Liquid Propane

Product Overview

Burners are certified to work with SPECIFIC Log Sets only. While there may be several allowable Log Sets for a specific burner, they are NOT universal. Using a burner with a non-compatible log set can lead to Fire, Carbon Monoxide Poisoning and Property Damage.
The G4 burner is a glowing ember burner system that features single tube burner that runs through the center. It is a base model burner. Your flames will dance across the length of the burner tube. However, the glowing embers will not glow as brightly and it does not offer additional front flames as with a G45 burner.

At Total Home Supply, we include SPK26 safety pilot with the G4 manual burner whether you order for Natural Gas or Liquid Propane.

The G4 Burner system includes:
  • Burner pan
  • Grate
  • Glowing embers
  • Vermiculite
  • Burner clips
  • Flex connector kit
  • Damper clamp
  • SPK-26 Safety Valve included with this burner
Log set is sold separately.

Tech Specs

General Features

Fireplace Style:
Single Sided
Location of Use:
Indoor
Type of Venting:
Vented
Media Style:
Traditional Log Set
Type of Grate:
Standard
Fuel Type:
Liquid Propane (LP)
Allowable Log Set Sizes (in.):
24"
Allowable Log Sets:
Real-Fyre Gas Log Set Not Included
Certified Usage:
Mobile Home Approved

Performance

BTUs (Max.):
65000
Ignition Type:
Manual (No Remote)
Remote:
Not Available

Gas Requirements

Gas Connection Size (in.):
1/2"
Manifold Pressure (in.):
NA
Inlet Gas Pressure (Min.):
11.0" w.c.
Inlet Gas Pressure (Max.):
13.0" w.c.

Minimum Firebox Requirements

Requirements for 24" Logs

Req. Min. Front Width (in.):
28"
Req. Min. Rear Width (in.):
23"
Req. Min. Depth (in.):
13"
Req. Min. Height (in.):
17"
Chimney Height (Min. ft.):
15'
