RH Peterson Real-Fyre G424N-APK11N 24" Glowing Ember Vented Burner with On/Off Remote - Natural Gas

Sku:
RH-PETERSON-G42411N
Usually Leaves Warehouse in 2 - 3 Business Days
$854.10
Burners are certified to work with SPECIFIC Log Sets only. While there may be several allowable Log Sets for a specific burner, they are NOT universal. Using a burner with a non-compatible log set can lead to Fire, Carbon Monoxide Poisoning and Property Damage.

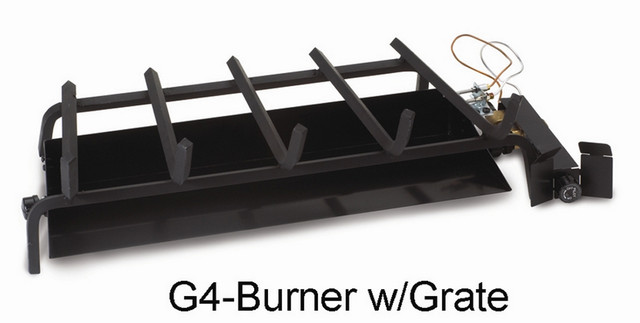

The G4 burner is a glowing ember burner system that features single tube burner that runs through the center. It is a base model burner. Your flames will dance across the length of the burner tube. However, the glowing embers will not glow as brightly and it does not offer additional front flames as with a G45 burner.

Included with the G4 burner, is the APK-11 valve kit. The APK-11 is a basic on/off remote safety pilot kit. It includes a basic RR-1 On/Off remote control transmitter and receiver. It uses a standing pilot that stays lit. As long as the safety pilot is lit, the burner can be turned on and off from the remote control or manually with an on/off control inside the fireplace.

You can upgrade to RR-2A Deluxe Remote Control system with Thermostat, Timer, Clock and Room Temperature (sold separately).

The G4 burner consists of a single tube running the length of the middle of the burner tray. There is no additional front flame burner. The G4 burner, regardless of the pilot valve chosen, will still give you dancing flames across the length of the burner.

The G4 Burner system includes:
  • Burner pan
  • Grate
  • Glowing embers
  • Sand
  • Burner clips
  • Flex connector kit
  • Damper clamp
SPK-26 valve shown on burner is not included. This burner includes the APK-11 on/off remote kit. Log set is sold separately.
FREE SHIPPING ON ALL ORDERS!
RH Peterson Real-Fyre G4-24 24" Glowing Ember Vented Burner with APK-11N ON/OFF Valve - Natural Gas
  • RH Peterson Real-Fyre G4-24 24" Glowing Ember Vented Burner with APK-11N ON/OFF Valve - Natural Gas
  • RH Peterson Real-Fyre G424N-APK11N 24" Glowing Ember Vented Burner with On/Off Remote  - Natural Gas
  • RH Peterson Real-Fyre G424N-APK11N 24" Glowing Ember Vented Burner with On/Off Remote  - Natural Gas

Product Overview

Burners are certified to work with SPECIFIC Log Sets only. While there may be several allowable Log Sets for a specific burner, they are NOT universal. Using a burner with a non-compatible log set can lead to Fire, Carbon Monoxide Poisoning and Property Damage.
The G4 burner is a glowing ember burner system that features single tube burner that runs through the center. It is a base model burner. Your flames will dance across the length of the burner tube. However, the glowing embers will not glow as brightly and it does not offer additional front flames as with a G45 burner.

Included with the G4 burner, is the APK-11 valve kit. The APK-11 is a basic on/off remote safety pilot kit. It includes a basic RR-1 On/Off remote control transmitter and receiver. It uses a standing pilot that stays lit. As long as the safety pilot is lit, the burner can be turned on and off from the remote control or manually with an on/off control inside the fireplace.

You can upgrade to RR-2A Deluxe Remote Control system with Thermostat, Timer, Clock and Room Temperature (sold separately).

The G4 burner consists of a single tube running the length of the middle of the burner tray. There is no additional front flame burner. The G4 burner, regardless of the pilot valve chosen, will still give you dancing flames across the length of the burner.

The G4 Burner system includes:
  • Burner pan
  • Grate
  • Glowing embers
  • Sand
  • Burner clips
  • Flex connector kit
  • Damper clamp
SPK-26 valve shown on burner is not included. This burner includes the APK-11 on/off remote kit. Log set is sold separately.

Tech Specs

General Features

Fireplace Style:
Single Sided
Location of Use:
Indoor
Type of Venting:
Vented
Media Style:
Traditional Log Set
Type of Grate:
Standard
Fuel Type:
Natural Gas (NG)
Allowable Log Set Sizes (in.):
24"
Allowable Log Sets:
Real-Fyre Gas Log Set Not Included
Certified Usage:
Mobile Home Approved

Performance

BTUs (Max.):
90000
Ignition Type:
Millivolt (Remote Ready)
Remote:
Included

Gas Requirements

Gas Connection Size (in.):
1/2"
Manifold Pressure (in.):
NA
Inlet Gas Pressure (Min.):
5.0" w.c.
Inlet Gas Pressure (Max.):
10.5" w.c.

Minimum Firebox Requirements

Requirements for 24" Logs

Req. Min. Front Width (in.):
36"
Req. Min. Rear Width (in.):
30"
Req. Min. Depth (in.):
13"
Req. Min. Height (in.):
17"
