Product Overview
Burner Options

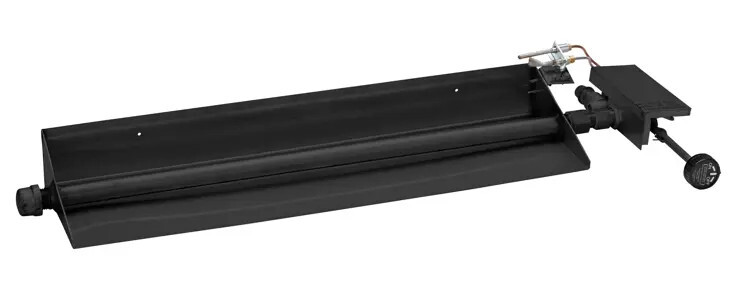

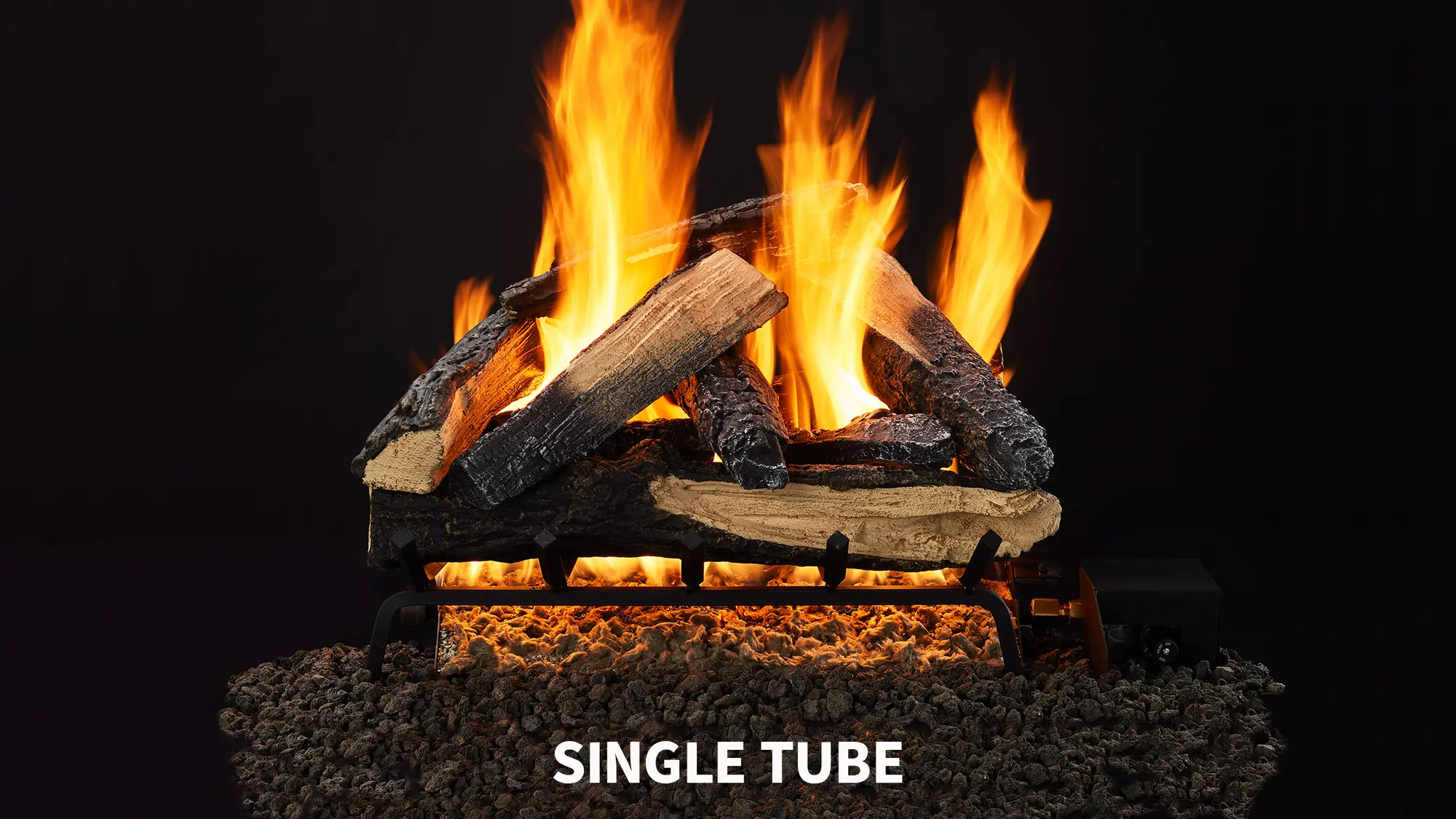

Single Tube Burner
The single tube burner is the base model burner. It does include a grate (similar to the grate shown below). It is a glowing ember burner system with a single tube burner running through the center. While it does offer dancing flames across the length of the burner, the glowing embers will not glow as brightly as with a double tube burner. This burner features on/off remote access. A basic on/off remote is included.

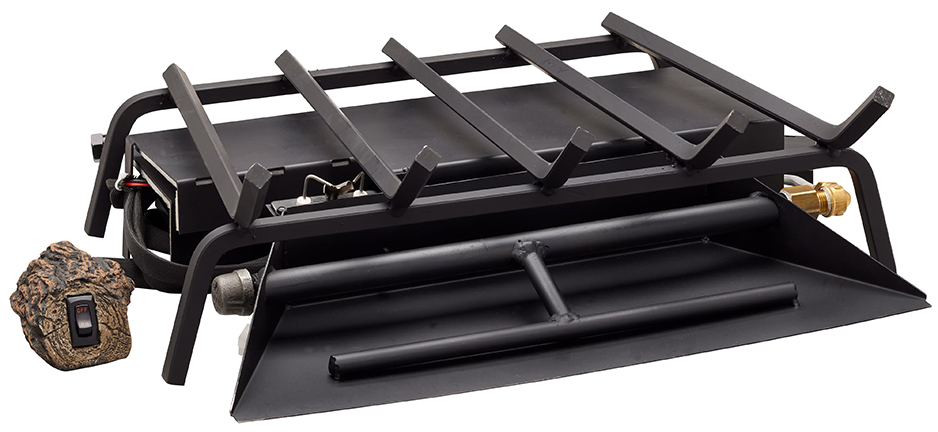

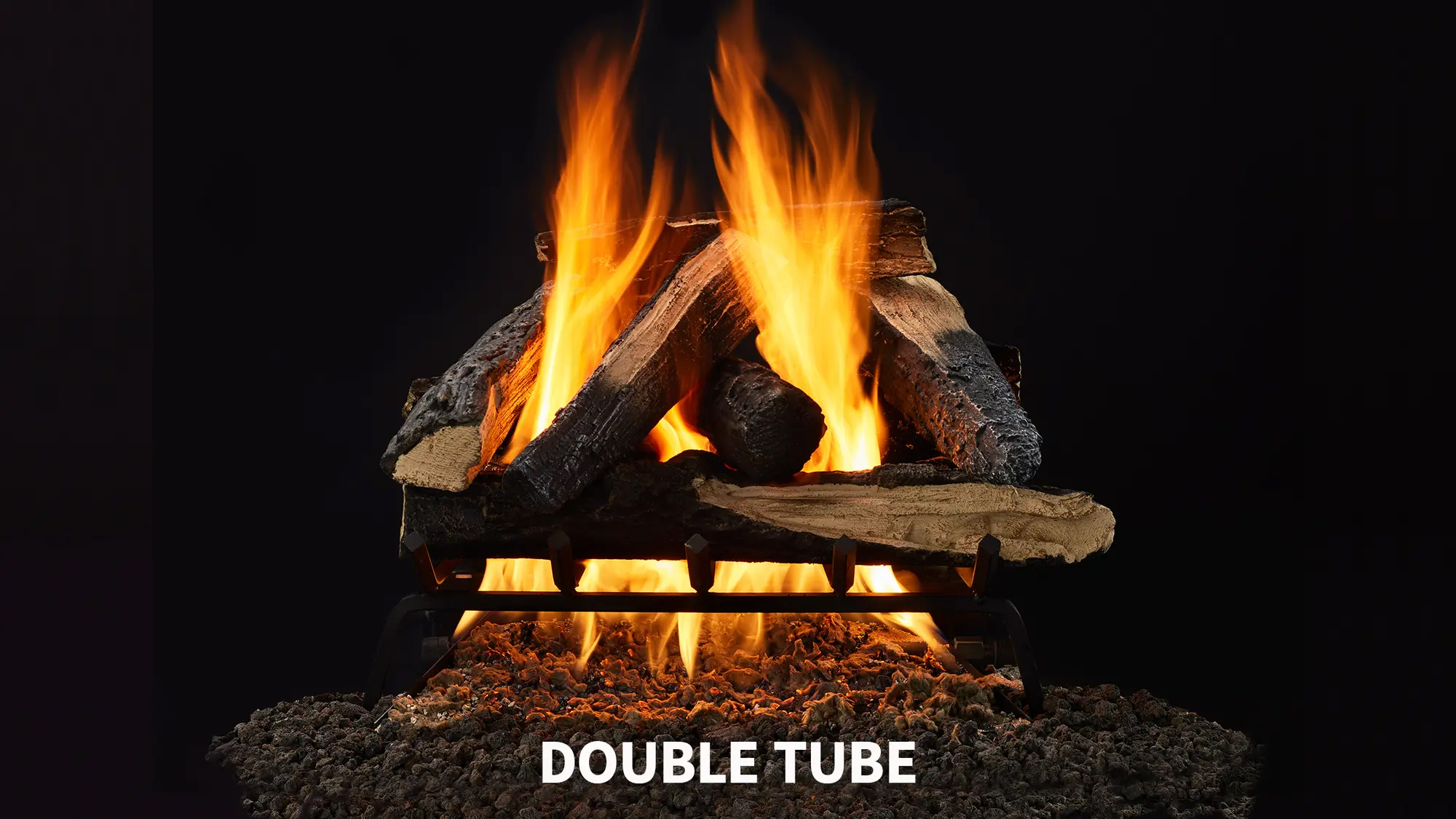

Double Tube Burner
The double tube burner features a double pipe design. With this burner you get a nice bed of glowing embers under beautiful dancing flames. We offer it with a standing pilot and Electronic Ignition. This burner features on/off and hi/low remote access. A basic on/off remote is included. The double tube burner also includes a wood chunk.
| Burner Model | Minimum Fireplace Size | BTU Ratings | ||||
|---|---|---|---|---|---|---|
| Width* | Depth | Height | NG | LP | ||
| Front | Rear | |||||
| 18" Vented Burners | ||||||
| STSP Burner (safety pilot kit) | 28" | 16" | 14" | 16" | 60k | 40k |
| HTSP Burner (safety pilot kit) |
28" | 16" | 14" | 16" | 60k | 40k |
| HTIPI Burner* (electronic ignition) | 34" | 20" | 18" | 16" | 57k | 52k |
| 24" Vented Burners | ||||||
| STSP Burner (safety pilot kit) | 34" | 18" | 14" | 18" | 67k | 40k |
| HTSP Burner (safety pilot kit) | 34" | 18" | 16" | 18" | 67k | 40k |
| HTIPI Burner* (electronic ignition) | 34" | 20" | 18" | 16" | 57k | 52k |
| 30" Vented Burners | ||||||
| STSP Burner (safety pilot kit) | 42" | 24" | 16" | 20" | 80k | 60k |
| HTSP Burner (safety pilot kit) | 42" | 24" | 16" | 20" | 80k | 60k |
| HTIPI Burner (electronic ignition) | 36" | 24" | 18" | 18" | 73k | 63k |
| *The required widths allow for centering of the unit within the fireplace. The HTIPI burner listed above for both 18" and 24" is the same burner used for both 18" and 24" log sets | ||||||
Tech Specs
General Features
WARNING!
