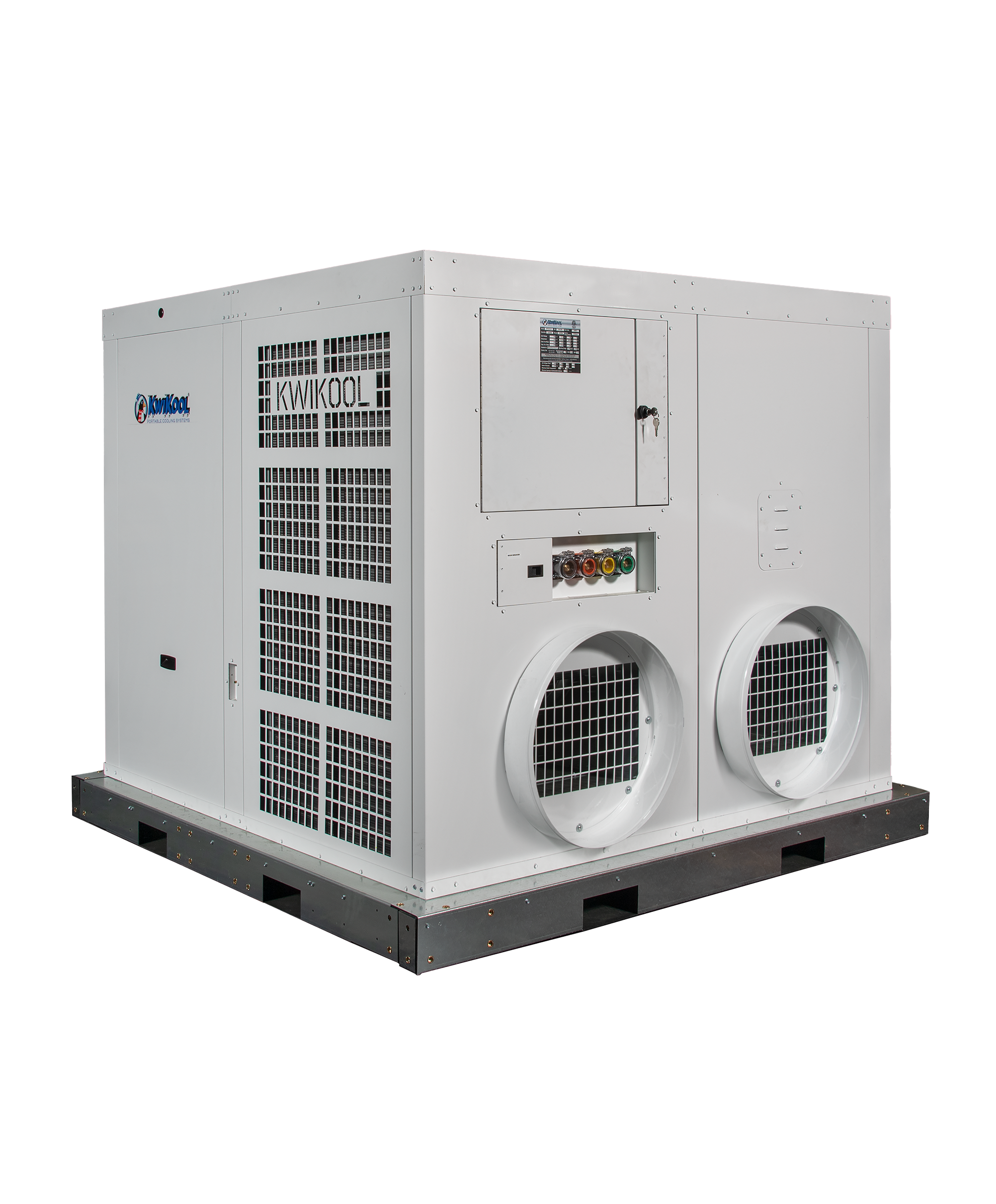

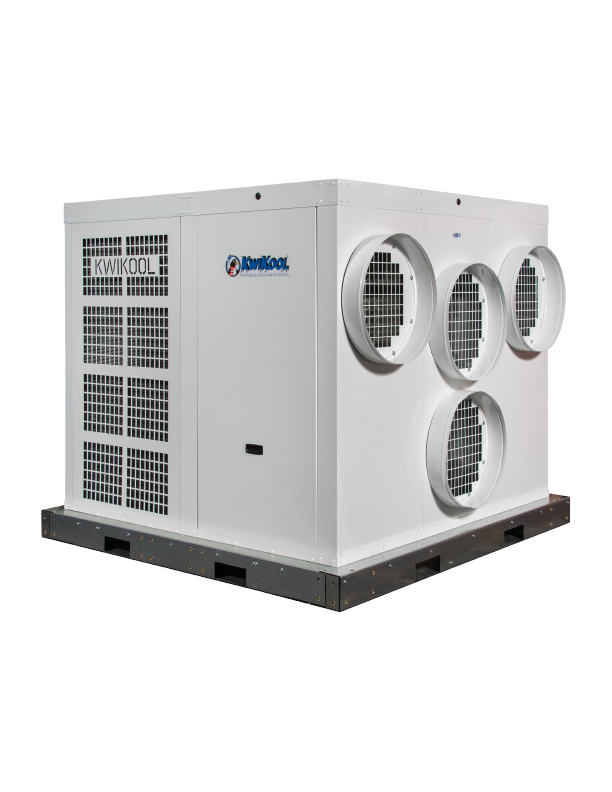

Kwikool KPO25-43 270,000 BTU Indoor/Outdoor High Static Portable Air Conditioner - 460 Volt/3 Phase

Sku:
KWIKOOL-KPO25-43NH
Special Order - No Cancellations - No Refunds
$46,196.25
460V Units are Not Made for Residential Applications. This Unit is for Commercial Use Only.

KwiKool offers several portable air options for the commercial industry. These units are created specifically for areas that are difficult to cool. The KPO line of portable air includes units designed with high static blowers specifically for areas that are hard to reach with conventional products. The KPO high static and airflow units are used in indoor and outdoor temporary installations and are available in 5 ton, 12 ton and 25 ton options. Three 60,000 BTU / 5 ton units are available (208/230 single phase, 230/3 phase and 460/3 phase); two 135,000 BTU / 12 Ton units (230/3 phase or 460/3 phase); and the 270,000 BTU / 25 Ton  (460/3 phase) unit.

The Model KPO25-43 is a 25-ton / 270,000 BTU unit. It uses 460 volt / 3 phase electricity. An 100 amp circuit is required when using 430/3 electricity for this unit. The KPO25-43 comes with built-in Cam Lock Connections and must be hardwired by a qualified electrician. The KPO25 is the largest KPO unit but still offers an extremely small footprint compared to other systems with similar capabilities. It is 66"w x 66"l x 60"h. This unit is designed to be placed outdoor with ducts running into the building space where it is needed. It uses high static blowers to reach an isolated heat load such as sealed interior spaces. Its airflow capabilities can reach up to 75 feet through 20" cold air supply and return ducts, eliminating additional booster blowers.

The KPO25 is available with (KPO25-43H) or without (KPO25-43) an optional Heat Strip. The Heat Strip makes this indoor/outdoor air conditioner a viable option for heat use as well. The electric heat strip option is 48kW / 166,600 BTUs. The standard unit does not include the heat strip and is a cooling only unit.

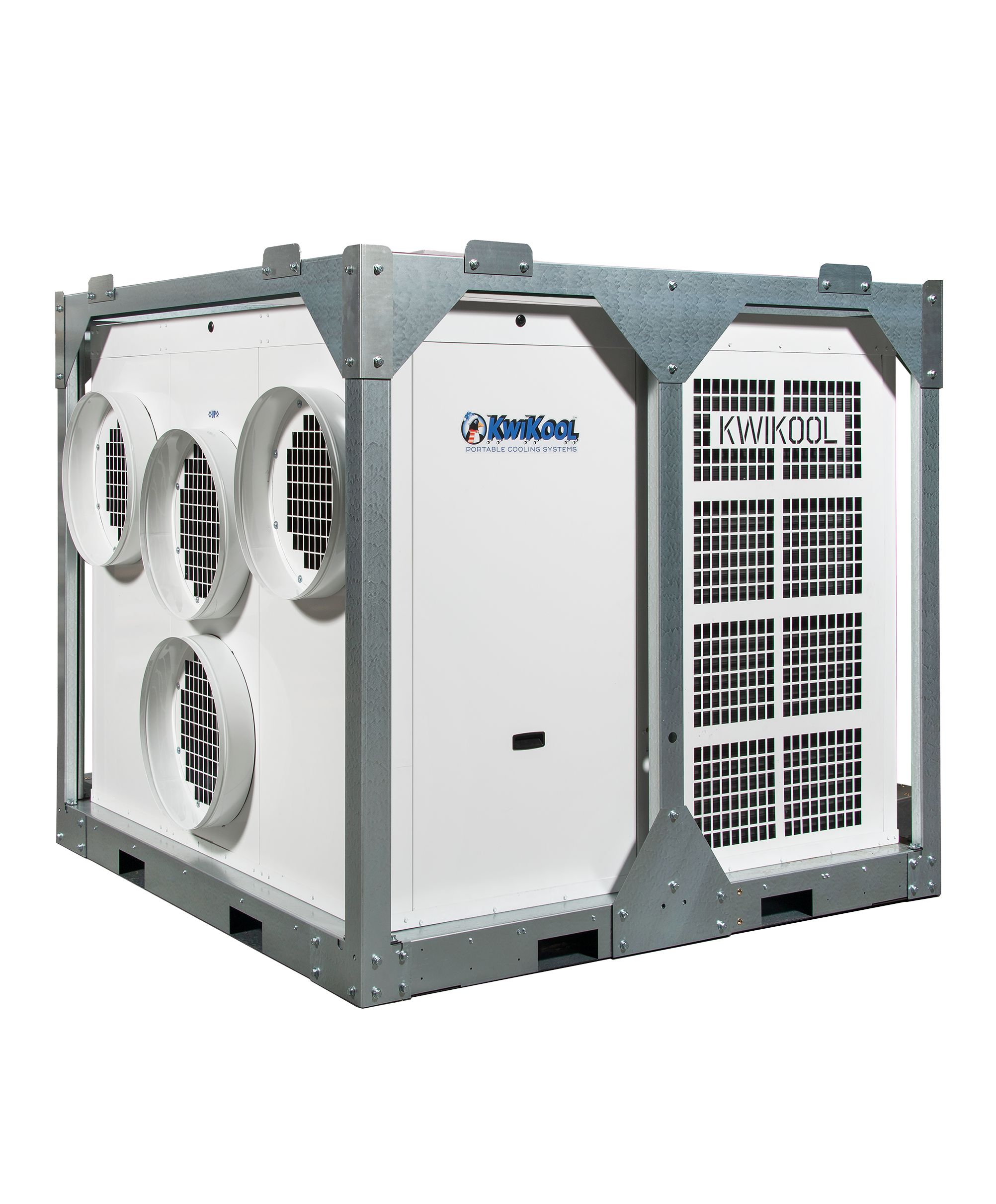

The KPO series is a rugged and reliable indoor/outdoor cooling source. It has many heavy duty construction features including a 16 gauge insulated G90 galvanized and epoxy powder-coated cabinet mounted to a 12 gauge skid. The heavy duty base /skid provides fork lift skid access for easy movement, setup, and transport. This unit does not include wheels. A sturdy frame is now available to house your KPO25-43 unit. It is a heavy duty frame that adds protection for and stackability of your KPO-25-43. The last photo above shows the unit in the frame with an empty frame above. The frame is NOT sold separately. A single KPO25-43 weighs about a ton and the frame is designed to carry that weight. Up to three units can be stacked.

 The KPO series offers advanced airflow capabilities, with up to 60 feet of cold air supply and return and up to 100 feet of hot air exhaust ducting. These units can even be used in temperatures from 65° to 100°F. The condenser has Low Ambient Temperature Capability using a Variable Frequency Drive that will operate at temperatures below freezing.

The KPO series is primarily used for cooling areas with a high concentration of heat load, usually from electrical or computer equipment or other sealed interior room. The KPO units offer an effective, affordable solutions including spot cooling for workers or process cooling within larger spaces without the use of condenser ducting, such as warehouses, factories or production areas.

All units in the KPO line do require a duct to direct the cooling into the conditioned space. For the KPO25, this is done with four 20” diameter ducts - 2 for supply and 2 for return air. The maximum length for each of these ducts is 75 feet. A 20” diameter duct for the condenser exhaust allows for a maximum of 100 feet for hot air discharge ducting. The KPO series comes equipped with an internal high lift condensate pump to give you condensate flexibility.

KwiKool - Made in America.

FREE SHIPPING ON ALL ORDERS!
Kwikool KPO25-43 270,000 BTU Indoor/Outdoor High Static Portable Air Conditioner - 460 Volt/3 Phase
  • Kwikool KPO25-43 270,000 BTU Indoor/Outdoor High Static Portable Air Conditioner - 460 Volt/3 Phase
  • Kwikool KPO25-43 270,000 BTU Indoor/Outdoor High Static Portable Air Conditioner - 460 Volt/3 Phase
  • Kwikool KPO25-43 270,000 BTU Indoor/Outdoor High Static Portable Air Conditioner - 460 Volt/3 Phase
  • Kwikool KPO25-43 270,000 BTU Indoor/Outdoor High Static Portable Air Conditioner - 460 Volt/3 Phase
  • Kwikool KPO25-43 270,000 BTU Indoor/Outdoor High Static Portable Air Conditioner - 460 Volt/3 Phase
  • Kwikool KPO25-43 270,000 BTU Indoor/Outdoor High Static Portable Air Conditioner - 460 Volt/3 Phase
  • +3

Product Overview

460V Units are Not Made for Residential Applications. This Unit is for Commercial Use Only.

KwiKool offers several portable air options for the commercial industry. These units are created specifically for areas that are difficult to cool. The KPO line of portable air includes units designed with high static blowers specifically for areas that are hard to reach with conventional products. The KPO high static and airflow units are used in indoor and outdoor temporary installations and are available in 5 ton, 12 ton and 25 ton options. Three 60,000 BTU / 5 ton units are available (208/230 single phase, 230/3 phase and 460/3 phase); two 135,000 BTU / 12 Ton units (230/3 phase or 460/3 phase); and the 270,000 BTU / 25 Ton  (460/3 phase) unit.

The Model KPO25-43 is a 25-ton / 270,000 BTU unit. It uses 460 volt / 3 phase electricity. An 100 amp circuit is required when using 430/3 electricity for this unit. The KPO25-43 comes with built-in Cam Lock Connections and must be hardwired by a qualified electrician. The KPO25 is the largest KPO unit but still offers an extremely small footprint compared to other systems with similar capabilities. It is 66"w x 66"l x 60"h. This unit is designed to be placed outdoor with ducts running into the building space where it is needed. It uses high static blowers to reach an isolated heat load such as sealed interior spaces. Its airflow capabilities can reach up to 75 feet through 20" cold air supply and return ducts, eliminating additional booster blowers.

The KPO25 is available with (KPO25-43H) or without (KPO25-43) an optional Heat Strip. The Heat Strip makes this indoor/outdoor air conditioner a viable option for heat use as well. The electric heat strip option is 48kW / 166,600 BTUs. The standard unit does not include the heat strip and is a cooling only unit.

The KPO series is a rugged and reliable indoor/outdoor cooling source. It has many heavy duty construction features including a 16 gauge insulated G90 galvanized and epoxy powder-coated cabinet mounted to a 12 gauge skid. The heavy duty base /skid provides fork lift skid access for easy movement, setup, and transport. This unit does not include wheels. A sturdy frame is now available to house your KPO25-43 unit. It is a heavy duty frame that adds protection for and stackability of your KPO-25-43. The last photo above shows the unit in the frame with an empty frame above. The frame is NOT sold separately. A single KPO25-43 weighs about a ton and the frame is designed to carry that weight. Up to three units can be stacked.

 The KPO series offers advanced airflow capabilities, with up to 60 feet of cold air supply and return and up to 100 feet of hot air exhaust ducting. These units can even be used in temperatures from 65° to 100°F. The condenser has Low Ambient Temperature Capability using a Variable Frequency Drive that will operate at temperatures below freezing.

The KPO series is primarily used for cooling areas with a high concentration of heat load, usually from electrical or computer equipment or other sealed interior room. The KPO units offer an effective, affordable solutions including spot cooling for workers or process cooling within larger spaces without the use of condenser ducting, such as warehouses, factories or production areas.

All units in the KPO line do require a duct to direct the cooling into the conditioned space. For the KPO25, this is done with four 20” diameter ducts - 2 for supply and 2 for return air. The maximum length for each of these ducts is 75 feet. A 20” diameter duct for the condenser exhaust allows for a maximum of 100 feet for hot air discharge ducting. The KPO series comes equipped with an internal high lift condensate pump to give you condensate flexibility.

KwiKool - Made in America.

Tech Specs

General Features

Installation Type:
Portable
Refrigerant Type:
407C
Energy Star:
No
CFMs:
1100
Fan Speeds:
1
Includes Heat Pump:
No

Performance

Cooling BTUs:
290500
Cooling Amps:
61.8

Features

Bucket Capacity:
NA
High Level Alarm:
Yes
Auto Shut Off:
Yes
Control Type:
Electronic Touch Pad
Drain Pump:
Yes

Operating Range

Ambient Temperature - Cooling:
30° - 110°

Venting

Supply and Return Air Device:
4 - 20" flanges (2 for Supply /2 for Return)
Max. Duct Length:
400' Total (Supply / Return)
Condenser Exhaust Flange:
20" x 2
Max. Length Condenser Duct (ft.):
100' per Flange

Weights and Dimensions

Overall Width (in.):
66
Overall Depth (in.):
66
Overall Height (in.):
60.4
Net Weight (lbs.):
2200

Electrical Requirements

Voltage:
460V
Phase:
3
Power Connection:
Color Coded Cam Locks
Max. Circuit Ampacity:
71.15
Rec. Circuit Breaker Size (Amps):
80
Certifications:
ETL
California residents see Prop 65 WARNINGS

Warning WARNING!

Warning: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Product Warranty

1 Year Limited Product Warranty
