Product Overview

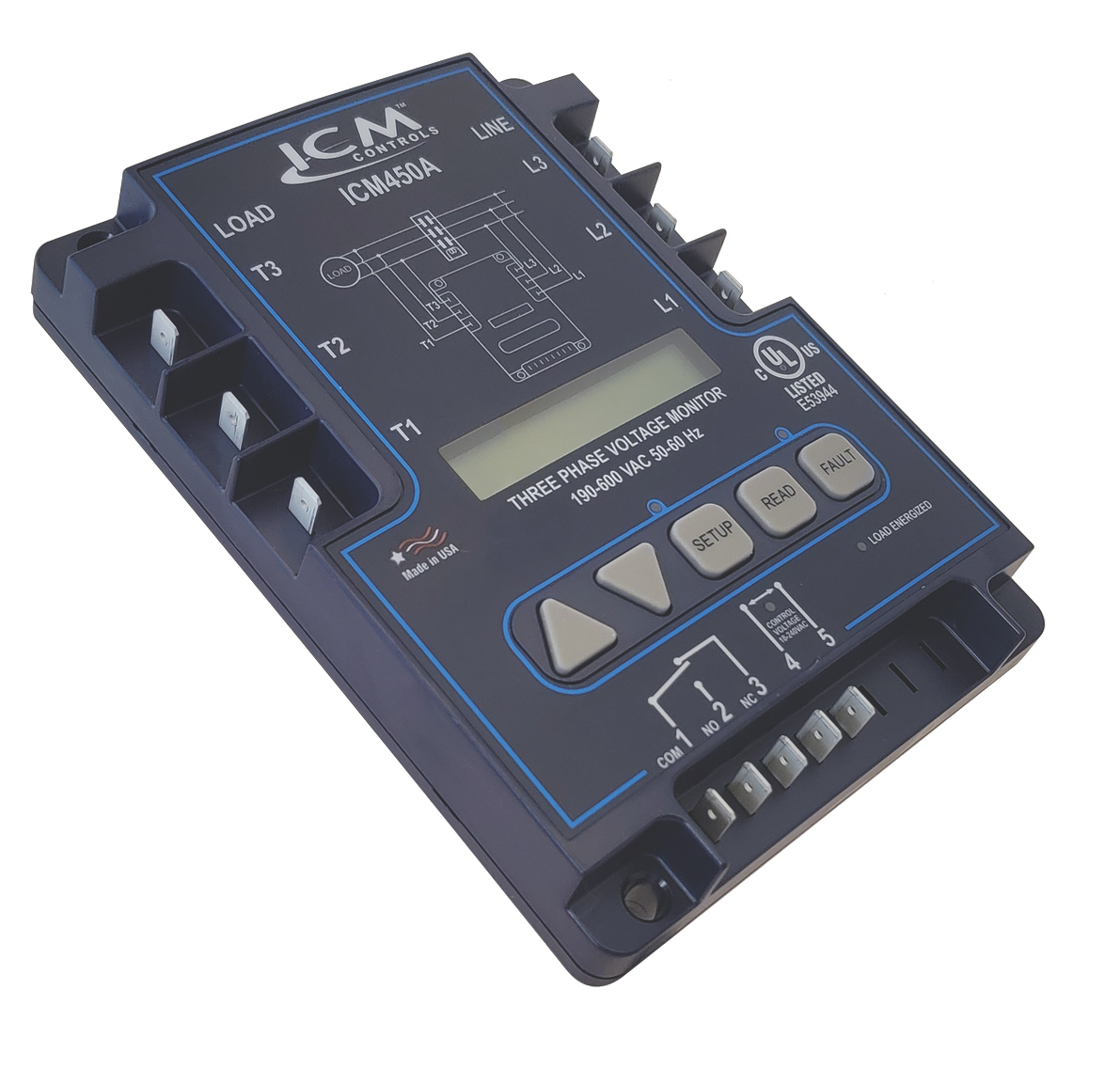

The ICM450A is a programmable 3-phase line voltage monitor. By displaying the voltage, it will provide motor monitoring against premature failure and damage as a result of common voltage failures. Included functions include phase unbalance, phase loss, phase reversal as well as over- and under voltage.
Features included on the ICM450A are an easy-to-read backlit display with English and Spanish read-outs. This upgrade helps to make quick work when adjusting the settings for your specific application. With its common 1/4" spade terminations, the potential for exposed wires is eliminated, providing you with a better and safer connection.
The programmable, 3-phase monitor includes:
- Backlit LCD
- Simultaneous 3-phase true RMS voltage monitoring
- Factory calibrated
- 3-phase voltages simultaneously displayed on LCD
- Fault memory
- Fault monitoring: High / low voltage, voltage unbalance, phase loss, phase reversal
- Simple configuration
- Fully adjustable variables
- LED indicators
- Common ¼” quick connect terminations
- English or Spanish menu options
Input:
- Voltage Range: Universal 190 – 600 VAC
- Frequency: 50-60 Hz
- Load Side Monitoring: Optional
- Control Voltage: 18 – 240 VAC
Output:
- Type: Relay, SPDT
- Voltage Range: 277 VAC @ 6A maximum
- Control Operating Temperature:
- Operating Temperature: -40ºF to +149ºF (-40ºC to +65ºC)
- Storage Temperature: -40ºF to +185ºF (-40ºC to +85ºC)
Mechanical:
- Mounting: Surface mount using (2) #8 screws
- Terminations: 1/4” quick connects
Dimensions:
- 6.5" x 4.75" x 1.09"d
The ICM450A can be used as a replacement for:
- A-1: EAC-800, EAC-8000, EAC-8002
- Copeland: 085-0160-00
- Diversified: AC-2020, AC-301, AC-302
- ICM: ICM450, ICM 450S
- Mars: PFM-2000
- Motorsaver: 455
- SSAC: QLM/QLV
- Time Mark: 265
- Wagner / DiversiTech: DTP-3, WPC-800
It is Made in the USA and is UL listed in the US and Canada.
