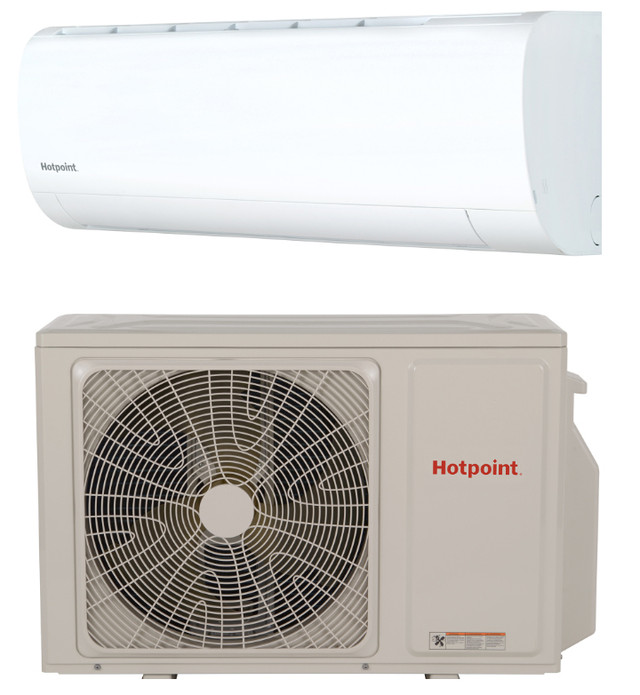

Hotpoint 09HN2DAB 9000 BTU 18 SEER2 Single Zone Mini Split - Heat and Cool - Built-In WiFi - R32 - 208/230V

The Hotpoint 9,000 BTU Class single zone mini split system includes both the HW09HN2DAB wall unit and the 1H09HN2DAB outdoor compressor. Inverter Technology is only the beginning of the standard money-saving features included with the Energy Star Rated Hotpoint ductless mini split systems. Inverter technology allows you to run your system much more efficiently, reducing energy costs, while cooling the space and reaching your set temperature more quickly. To help keep the room at a comfortable level, longer, the variable speed compressor runs at a lower speed instead of shutting off completely. This helps the system to maintain the set temperature, alleviating the need for the system to start up again from a completely shut down state.

The Hotpoint 9,000 BTU Indoor Wall Unit (HW09HN2DAB) uses 208/230V electricity. It will only operate with the compatible Hotpoint outdoor compressor (1H09HN2DAB). When paired as a system, you get great efficiency including 12.0 EER2, 18.0 SEER2 and 9.5 HSPF2 (IV*) and 7.2 HSPF (V*) ratings. These ratings translate to an Energy Star Rated System. The indoor unit includes a full function wireless remote as well as built-in WiFi, making it controllable from anywhere you have an internet connection. Simply download the SmartHQ app and you are on your way to wireless climate control.

The 9,000 BTUs will cool a room that is about 400 - 450 sq. ft. Factors such as windows, doors, computers and ceiling height must be factored in when calculating the BTUs you need for your specific installation requirements. The heat pump will give you 10,000 BTUs of heat. Because of the inverter / variable speed compressor, the cooling range for the system is 3,300 - 11,000 BTUs while the heating range is 2,100 - 11,000 BTUs. The Hotpoint offers cooling operation from 14°F - 115°F and heating operation from -15°F to 75°F!

Features of the HW09HN2DAB High Wall Indoor unit for the Hotpoint 9,000 BTU Single Zone include:

• Easy Installation and Service Accessibility - Mounting template and mounting plate with dimensions; extended kickstand, easy-access control board for service without removing casings; two-way piping drain for right or left side condensate draining
• Built-In WiFi - Pairs easily with SmartHQ App (Apple or Android)
• Full Function Remote - Includes up/down louver control
• 5 Fan Speeds - Including Turbo/H/M/L/Quiet PLUS Auto
• Warm Start - ensures a warm start in heat mode
• Quiet operation
• Auto restart - 3 minute delay after power failure
• 24-hour on/off timer - half hour increments between 0-12 hours; 1 hour increments between 12-24 hours

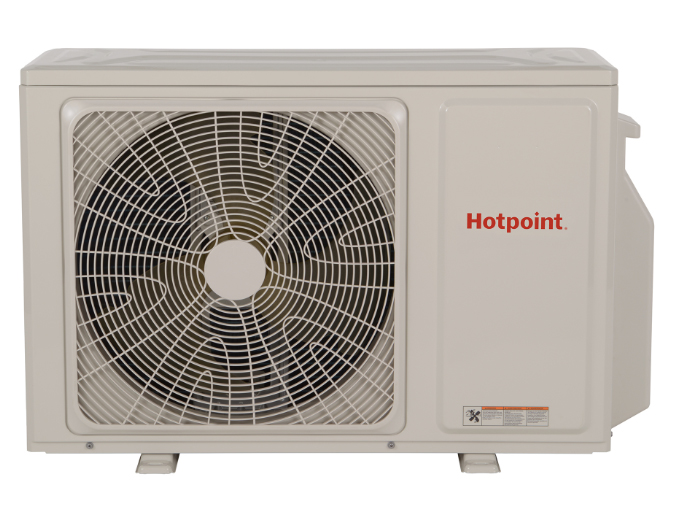

Features of the 1H09HN2DAB (outdoor unit) for the Hotpoint 9,000 BTU Single Zone include:

• 208/230 Volt
• Quick and easy duct-free installation
• Cooling Capabilities down to 14°
• Low ambient heating with outdoor temperatures as low as -15°F
• Space-saving design
• Quiet operation
• High Performance Inverter Compressor - Keeps indoor temperatures consistent any time of the year
• R32 refrigerant
• Worry Free - 10 year limited parts warranty
• Auto Restart after Power Failure - 3 minute delay
• Built to last - hydrophilic aluminum fin helps prevent condensation build-up and ensures water flows through the unit

This unit must be installed by a qualified, licensed HVAC technician.

In contrast to central air conditioning, which cools your entire house whenever the system turns on, a mini split cools only the space you want cooled, when you want it cooled! When you install a mini split system, you get all the benefits of individualized room comfort control without losing your view or having to remove and store your unit in the off season. Installation of a mini split system is permanent and non-obtrusive.

*HSFP2 (IV) and HSFP2 (V) ratings refer to the heating zones within the Northern Region of the US. Region IV encompasses most states north of Virginia while Region V is more limiting in scope, as it includes colder, more northern states from Connecticut and west. This unit is Energy Star Rated for both regions.
