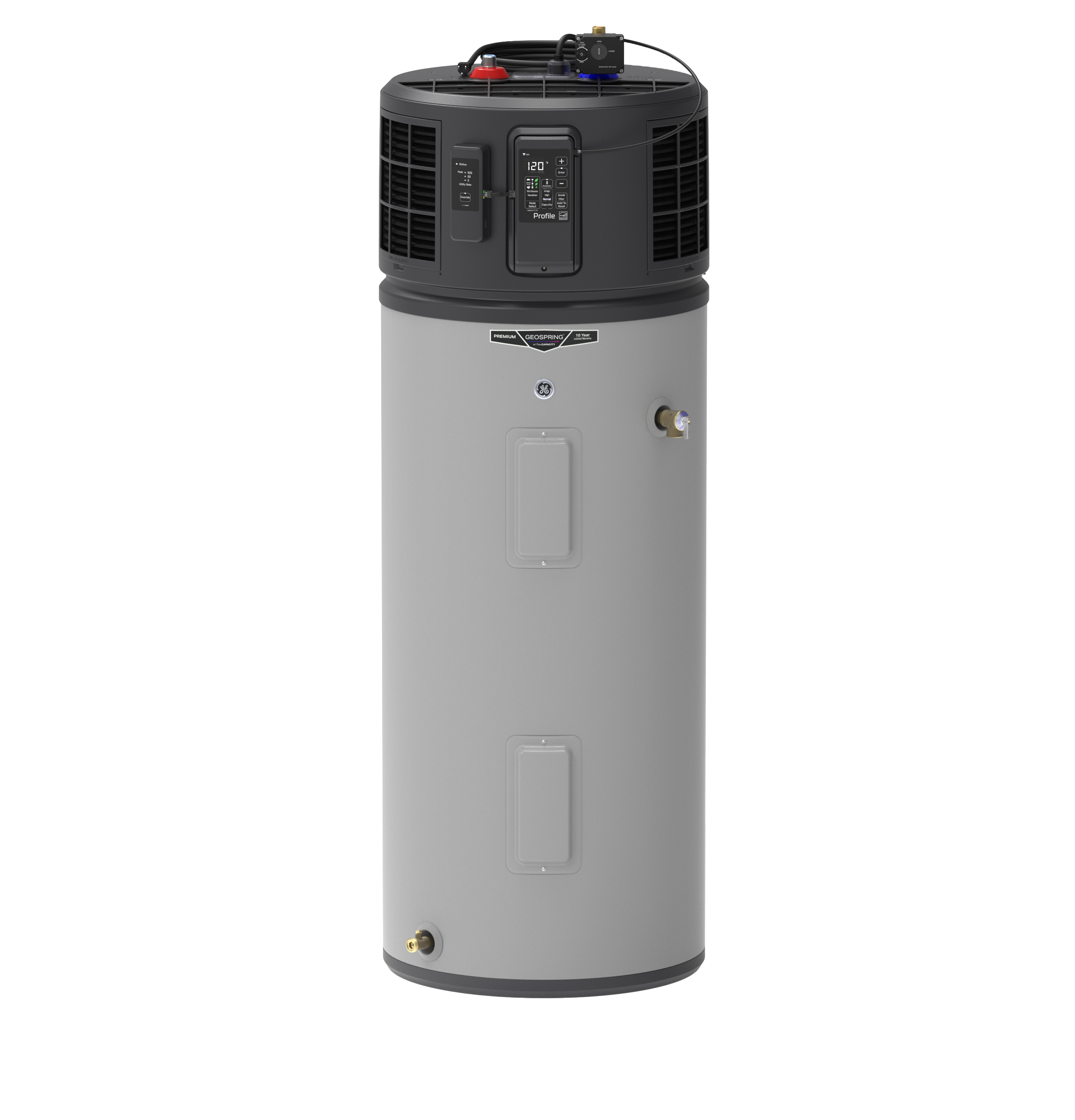

GE PF50S10FPY 50 Gallon GeoSpring Smart Hybrid Heat Pump Water Heater with FlexCapacity - 120 Volt

Is It Time to Replace Your Water Heater?

When was the last time you checked on your hot water heater? Hot water is something we all rely on daily—whether for washing up, doing dishes, or enjoying a relaxing shower. But what happens when you turn the faucet and there's only cold water? It may be time to upgrade your water heater.

The GeoSpring Heat Pump hot water heaters convert ambient air into water heating power. The GeoSpring Heat Pumps are up to 4.7 more energy efficient than standard water heaters, resulting in performance that exceed Energy Star requirements.

FlexCAPACITY - More Hot Water

The GeoSpring Heat Pump hot water heater includes a FlexCAPACITY integrated mixing valve. The mixing valve delivers precise temperature control by blending hot water at the point of exit! With the FlexCAPACITY electronic mixing valve, it can deliver up 60% more hot water than a conventional electric storage tank water heater without a mixing valve (@120°F set an 58°F water temp). Your 50 gallon, PF50S10FPY GeoSpring Heat Pump hot water heater performs like an 80 gallon hot water heater. On the X-High setting, the PF50S10FPY will be able to supply ample hot water for households up to six people.

SmartHQ - Control in the palm of your hand

With built-in WiFi, you can monitor, control and adjust settings and functions of your PF50S10FPY GeoSpring Heat Pump hot water heater from anywhere. Simply download the SmartHQ app and the power is in your hand! Connected capabilities also include voice control with Amazon Alexa and Google Home.

Additional features:

• Variable Speed Compressor - adjusts to the needs of your household based on conditions
• Wireless Leak Detection with Automatic Shutoff - when the wireless sensor (included) detects a leak, it sends an alert via the app, sensor automatically shuts off the water
• Dynamic Demand Response - EcoPort Certified with built-in demand response capabilities optimizes home energy usage when rates are the lowest so you can stay ahead of fluctuating energy costs
• Four Operation Modes - Heat Pump, Hybrid, High Demand and Electric modes. Personalized water heating with flexible operation modes designed for maximum comfort and efficiency
• Sensing Anode Rod - with an exclusive anode rod sensing technology, you will be alerted when it is time for replacement, ultimately extending the life of your water heater
• Cold Climate Compatible - GeoSpring Heat Pump hot water heaters are safe to use in all US climate locations
• Easy Installation - Standard 120V plug in OR easily convert for 240V hardwire on dedicated 30A circuit for enhanced efficiency. The unit itself includes built-in hand holds for ease of placement and pre-installed wire connectors for simple setup
• Easy to Service - the top cover is easily removable to get to all serviceable components

Warranty & Energy Factor

This unit comes with a standard 10-year limited warranty. The Energy Factor (EF) of this model is 3.2.

Product Dimensions

• A - Height to top of pipe nipples: 68-1/4"
• B - Height to top of tank: 66-1/2"
• C - Height to condensate drain: 51-7/8"
• D - Height to T&P Valve: 42-3/4"
• E - Height to drain valve: 3-1/2"
• F - Tank / Jacket Diameter: 24"
• G - Distance between inlet and outlet: 8"

 **Tech Specs illustrate use with 120V plug - 15 amps. Element Watts is 900W on each upper and lower. If hardwired for 208/240V, Element Watts is 3600W on each upper and lower.
