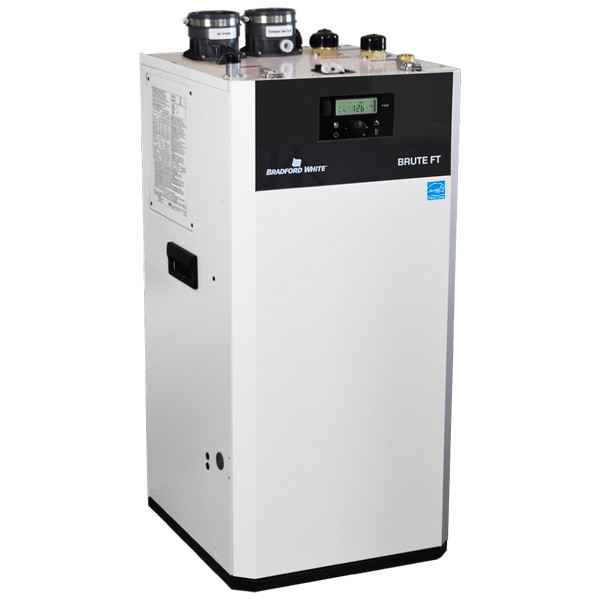

Bradford White BFTHF199 Brute FT Floor Standing Heat Only Boiler

Sku:
BRADFORD-BFTHF199
Usually Leaves Warehouse in 1 - 2 Business Days
$3,999.00
The Bradford White Brute FT Floor Standing Boiler is a great option for a residential boiler. The Brute FT line offers both a combination Boiler/hot water heater as well as a boiler only option. Both are Energy Star Rated and boast 95% AFUE efficiency ratings. The BFTHF199 is a floor standing boiler and is for heat only, not for Domestic Hot Water (DHW). However, it can be paired with a Bradford White Powerstor Indirect Fired Water Heater, for your DHW.

The durable stainless steel fire-tube heat exchanger offers a long life expectancy with superior heating performance. With stainless steel, there is less corrosion and your exchanger is able to deliver an extremely clean burn. Additionally Brute FT boilers come with Bradford White's 10 Year Warranty on the heat exchanger!

A boiler turndown ratio represents the difference between a boiler's maximum and minimum firing (heat output) capacity. The Brute FT Floor Standing Boiler has a turndown ratio, or range of operation of 10:1. The higher the turndown ratio, the more efficient your system is at lower heat loads. It offers full modulation ranges from 19,000 - 199,000 BTUs, to precisely match your building/home heating demands. And it is just as efficient at any load. This wide range of operating capacity also helps to avoid short cycling / on/off cycles.

Some additional features included with the Brute FT Floor Standing Boiler:
  • Cascade up to 20 units
  • Modulation Input - 19,000 - 199,000 BTUs
  • Easy to read LCD digital control panel
  • Pressure Relief Valve
  • Grundfos Boiler Pump included
  • Air Intake Filter included
  • Outdoor Sensor
  • Natural Gas standard, LP Conversion kit included

The Brute FT also offers several installation options including horizontal or vertical venting, concentric or two pipe venting options, vent and air pipe lengths - 2" piping / 50 ft or 3" piping / 100ft, as well as vent materials. The unit can be vented with PVC, CPVC, stainless steel or polypropylene.

WE RECOMMEND INSTALLATION BY A TRAINED, QUALIFIED AND LICENSED TECHNICIAN.

FREE SHIPPING ON ALL ORDERS!
Bradford White BFTHF199 Brute FT Floor Standing Heat Only Boiler

Product Overview

The Bradford White Brute FT Floor Standing Boiler is a great option for a residential boiler. The Brute FT line offers both a combination Boiler/hot water heater as well as a boiler only option. Both are Energy Star Rated and boast 95% AFUE efficiency ratings. The BFTHF199 is a floor standing boiler and is for heat only, not for Domestic Hot Water (DHW). However, it can be paired with a Bradford White Powerstor Indirect Fired Water Heater, for your DHW.

The durable stainless steel fire-tube heat exchanger offers a long life expectancy with superior heating performance. With stainless steel, there is less corrosion and your exchanger is able to deliver an extremely clean burn. Additionally Brute FT boilers come with Bradford White's 10 Year Warranty on the heat exchanger!

A boiler turndown ratio represents the difference between a boiler's maximum and minimum firing (heat output) capacity. The Brute FT Floor Standing Boiler has a turndown ratio, or range of operation of 10:1. The higher the turndown ratio, the more efficient your system is at lower heat loads. It offers full modulation ranges from 19,000 - 199,000 BTUs, to precisely match your building/home heating demands. And it is just as efficient at any load. This wide range of operating capacity also helps to avoid short cycling / on/off cycles.

Some additional features included with the Brute FT Floor Standing Boiler:
  • Cascade up to 20 units
  • Modulation Input - 19,000 - 199,000 BTUs
  • Easy to read LCD digital control panel
  • Pressure Relief Valve
  • Grundfos Boiler Pump included
  • Air Intake Filter included
  • Outdoor Sensor
  • Natural Gas standard, LP Conversion kit included

The Brute FT also offers several installation options including horizontal or vertical venting, concentric or two pipe venting options, vent and air pipe lengths - 2" piping / 50 ft or 3" piping / 100ft, as well as vent materials. The unit can be vented with PVC, CPVC, stainless steel or polypropylene.

WE RECOMMEND INSTALLATION BY A TRAINED, QUALIFIED AND LICENSED TECHNICIAN.

Tech Specs

General Features

Product Type:
Boiler
Installation Type:
Floor Standing
Fuel Type:
NG (Field Convertible - Kit Included)
Combustion Type:
Condensing
Vent Type:
Direct Vent
Water Volume (Gal.):
1
Central Heat (CH) Max. Flow Temp. (°F/C):
180
Connectivity:
Not WiFi Compatible
Domestic Hot Water - DHW:
No

Performance

Input Capacity (Min. BTUs):
19000
Input Capacity (Max. BTUs):
199000
Turndown Ratio:
10:1
AFUE Efficiency %:
95
DOE Heating Capacity (BTUs):
199000
AHRI Net Rating (BTUs):
189050

Connections

Gas Connection (in.):
3/4"
Vent/Air Connections (in.):
3"
Boiler Supply/Return (in.):
1.5"

Domestic Hot Water

DHW Inlet/Outlet Connections (in.):
NA
DHW Output GPM (@70° rise):
NA
DHW Output GPM (@75° rise):
NA
DHW Output GPM (@80° rise):
NA
DHW Min. Flow Rate (GPM):
NA
DHW Max. Flow Temp (°F/C):
NA
DHW Max. Operating Pressure (PSI):
NA

Weights and Dimensions

Width (in.):
19.6
Depth (in.):
17.9
Height (in.):
38.25
Weight (lbs.):
130
Certifications:
ASME, Energy Star, ETL, AHRI

Electrical Requirements

Voltage:
110-120V
Circuit Breaker Size (Amps):
15
California residents see Prop 65 WARNINGS

Warning WARNING!

Warning: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Product Warranty

Parts Warranty: 5 Years
Heat Exchanger: 10 Years
Labor Warranty: None
