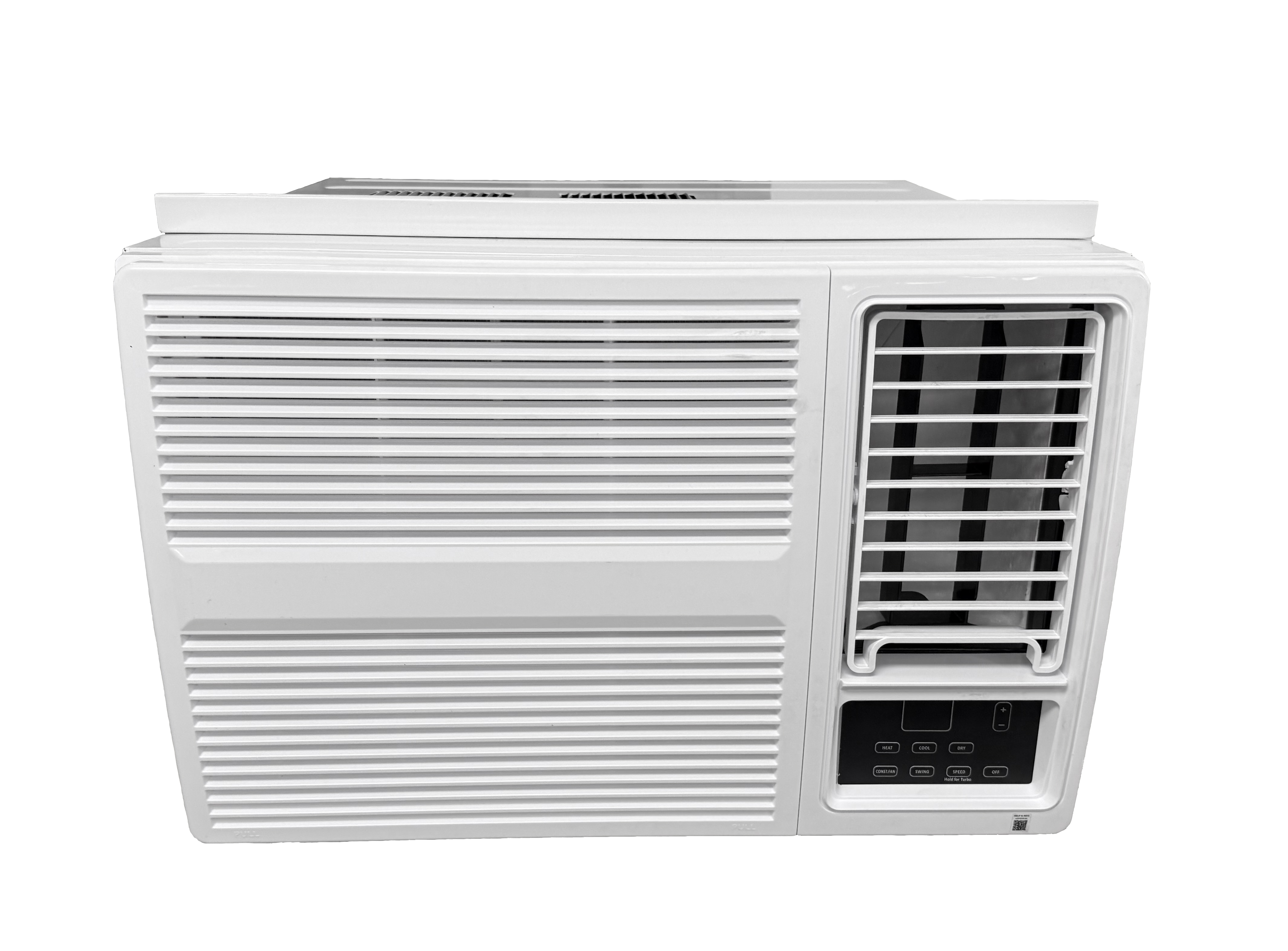

Amana AH183J35AA 18000 BTU Class 9.8 CEER, 10.6 EER Window Air Conditioner with Heat Pump - R32 Refrigerant - 208/230 Volt

Sku:
AMANA-AH183J35AA
Currently Unavailable
$1,399.00
The Amana AH123J35AA window air conditioner with heat pump and electric heat strip. With 11,200/11,600 cooling BTUs, and 9,900/10,200 BTU heat pump capacity, it features a 10.9 EER and a 9.8 CEER (Combined Energy Efficiency Ratio), your energy savings are just around the corner. The AH123J35AA also includes electric heat to help warm you up in the cooler months. All units in the series have 3.5 kW electric heating with a capacity of 8,900/11,000 BTUs. The AH series uses R32 refrigerant with lower GWP compared to R-410A previously used.

A solid bottom on the outer case gives the unit a full seal and allow for through-the-wall installation. Amana cooling units also feature hydrophilic coating on the evaporator and condenser coils for better moisture removal, increased air flow, increased heat exchange, higher efficiency ratings and longer compressor life.  The AH123J35AA features an electronic touch pad and a remote for easy control and side pull-out access to the permanent, washable filter, making cleaning easy. A built-in condensate drain spout helps keep the condensation draining away from the system. In addition to the 3 fan settings, the units also include 3 fan ONLY settings. The AH183J35AA also features auto swing 2 way/multi-directional air flow.
  • Solid Bottoms on Outercases give this unit a full seal and also allows for through-the-wall installation.
  • 100% Full Factory Run Test on all units for high reliability and dependability.
  • Ball-Bearing Fan Motors are reliable, start quickly and run quietly.
  • Multi-Directional Airflow for better circulation throughout the room.
  • Hydrophilic Coating on Evaporator and Condenser Coils allows better moisture removal, increased air flow, increased heat exchange, higher efficiency ratings and a longer compressor life.
  • Condensate Drain Spouts for direct condensate drainage.
  • LCDI Power Cords improve safety and protect against crimping or cuts on power cords.
Amana units are fully tested in the factory for reliability and dependability.
Amana AH183J35AA 18000 BTU Class 9.8 CEER, 10.6 EER Window Air Conditioner with Heat Pump - 208/230 Volt

Product Overview

The Amana AH123J35AA window air conditioner with heat pump and electric heat strip. With 11,200/11,600 cooling BTUs, and 9,900/10,200 BTU heat pump capacity, it features a 10.9 EER and a 9.8 CEER (Combined Energy Efficiency Ratio), your energy savings are just around the corner. The AH123J35AA also includes electric heat to help warm you up in the cooler months. All units in the series have 3.5 kW electric heating with a capacity of 8,900/11,000 BTUs. The AH series uses R32 refrigerant with lower GWP compared to R-410A previously used.

A solid bottom on the outer case gives the unit a full seal and allow for through-the-wall installation. Amana cooling units also feature hydrophilic coating on the evaporator and condenser coils for better moisture removal, increased air flow, increased heat exchange, higher efficiency ratings and longer compressor life.  The AH123J35AA features an electronic touch pad and a remote for easy control and side pull-out access to the permanent, washable filter, making cleaning easy. A built-in condensate drain spout helps keep the condensation draining away from the system. In addition to the 3 fan settings, the units also include 3 fan ONLY settings. The AH183J35AA also features auto swing 2 way/multi-directional air flow.
  • Solid Bottoms on Outercases give this unit a full seal and also allows for through-the-wall installation.
  • 100% Full Factory Run Test on all units for high reliability and dependability.
  • Ball-Bearing Fan Motors are reliable, start quickly and run quietly.
  • Multi-Directional Airflow for better circulation throughout the room.
  • Hydrophilic Coating on Evaporator and Condenser Coils allows better moisture removal, increased air flow, increased heat exchange, higher efficiency ratings and a longer compressor life.
  • Condensate Drain Spouts for direct condensate drainage.
  • LCDI Power Cords improve safety and protect against crimping or cuts on power cords.
Amana units are fully tested in the factory for reliability and dependability.

Tech Specs

General Features

Installation Type:
Window
Chassis Type:
Slide-Out (Window/Wall)
Window Type:
Standard
Window Mounting Kit Included:
Yes
Refrigerant Type:
R32
Compressor:
Standard
Energy Star:
No
Dehumidification (pts/hr):
5.1
CFMs:
500
Includes Heat Mode:
Yes
Heat Type:
Heat Pump with Back-Up Electric

Performance @208 Volt

Cooling BTUs (@208V):
17000
EER (@208V):
10.6
CEER (@208V):
9.8
Cooling Amps (@208V):
8.2
Cooling Watts (@208V):
1675
Electric Heat Strip Size (kW - @208V):
2.8
Electric Heating BTUs (@208V):
8900
Electric Heating Amps (@208V):
13.9
Electric Heating Watts (@208V):
2890
Heat Pump BTUs (@208V):
14000
COP (@208V):
2.8
Heat Pump Heating Amps (@208V):
7.6
Heat Pump Heating Watts (@208V):
1505

Performance @230 Volt

Cooling BTUs (@230V):
17300
EER (@230V):
10.6
CEER (@230V):
9.8
Cooling Amps (@230V):
7.6
Cooling Watts (@230V):
1675
Electric Heat Strip Size (kW - @230V):
3.5
Electric Heating BTUs (@230V):
11000
Electric Heating Amps (@230V):
15.4
Electric Heating Watts (@230V):
3520
Heat Pump BTUs (@230V):
14300
COP (@230V):
2.8
Heat Pump Heating Amps (@230V):
7.0
Heat Pump Heating Watts (@230V):
1520

Features

Vent Location:
Front Top
Make-Up Air:
No
Energy Saver Mode:
No
Fan Speeds:
3
Control Type:
Electronic/Digital
Filter Access:
Side Pull-Out
Connectivity:
Not WiFi Compatible
24 Hour ON/OFF Timer:
No
Remote Control:
Yes
Fresh Air Intake:
No
Sleep Mode:
No

Weights and Dimensions

Width (in.):
25.98
Depth (in.):
27.36
Height (in.):
17
Max. Wall Thickness (in.):
NA
Window Width (Min.)(in.):
NA
Window Width (Max.)(in.):
NA
Window Height (Min.)(in.):
NA
Weight (lbs.):
120
Certifications:
UL

Electrical Requirements

Voltage:
208-230V
Plug Face (NEMA):
6-20P
Circuit Breaker Size (Amps):
20
Cord Length:
4'
California residents see Prop 65 WARNINGS

Warning WARNING!

Warning: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Product Warranty

Parts and Labor: Limited 1-year

Sealed Refrigeration System: Limited 5-year
