Get a total comfort solution for your entire home or business!
With a heating operating range of -13°F up to 60°F (with optional drain pan heater) the Daikin Aurora Series is a perfect dual zone mini split system for cold weather climates. The cooling range is from 14°F to 114.8°F, helping to make this system a great solution as a primary heating and cooling source almost anywhere in the USA.

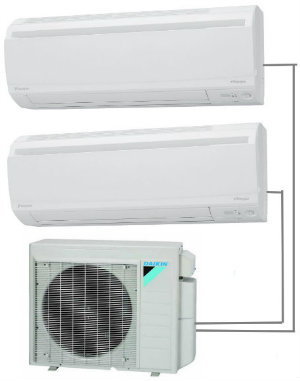

A mini split system is an excellent way to add air conditioning to separate areas of your home or office. Whether you have just added an additional room or don't have central air, with the 2MXL18QMVJU Aurora Series with Enhanced Capacity Mini Split System you can heat and cool two separate areas of your home or light commercial space at one time. Simply choose two indoor units based on your individual needs and before you know it, you will have cooling and heating in your space when and where you want it.
The MXL Aurora Series system, with inverter technology, works with CTXS and FTXS Standard Wall units, the Emura Series Wall units FTXR, the Vista Series FFQ Ceiling Cassette units, FDXS Concealed Duct units, and FVXS Floor units. Depending on the indoor units you choose, with the 2MXL18QMVJU outdoor unit you will be able to achieve energy efficiency levels of up to 17.9 SEER, up to 12.7 EER, and up to 12.5 HSPF. Comfort control with added savings!
With Daikin's new enhanced capacity Dual Zone solution, any two rooms can be controlled individually. The 2MXL18QMVJU Dual-Zone is rated for 18,000 BTU Cooling Capacity and must be connected to two indoor units. The combined BTU ratings of the units chosen can total up to a maximum connected BTU rating of 24,000 BTUs.
The Daikin 2MXL18QMVJU incorporates technology which allows you to connect higher BTU indoor units than its 18,000 BTU capacity. This will allow you to address higher heat load needs that are used at different times such as living space and sleeping space. If you need a 12,000 BTU unit for your living room and a 12,000 BTU unit for your bedroom, you can use them with the 18,000 BTU outdoor unit. The system will allocate the required BTUs needed in each area up to the total of 18,000 BTUs. Let's say you need to condition the living room during the day. No one will be in the bedroom at this time so you have this zone shut off. When you turn on the system in the living room, the Daikin technology will supply the required BTUs to the living space up to the maximum output of the 12,000 BTU indoor unit. Now you decide to get the bedroom ready before sleeping time so you turn on the bedroom zone. The system will distribute power to the zones as needed. If both zones need full power, then each zone will split the 18,000 BTU evenly or 9,000 BTUs per zone. If one zone needs more, the system will adjust accordingly.
The 2MXL18QMVJU Aurora Series outdoor inverter "variable speed" compressor features a space-saving design and quiet operation. With Reactive Temperature Monitoring, once you set your temperature, the system will automatically adjust output according to the condition requirements. It uses R410A refrigerant, the industry standard. It also includes anti-corrosion treatment of the outdoor Heat Exchanger Fin.
Daikin offers great variety and configurability in your selection of the two indoor units required for this system. All indoor units offer a variety of fan speed options and auto restart operation. You can use the drop-down boxes above to customize your system. Need help deciding or if you have any configuration questions, our sales staff would be happy to help you. Contact us for expert advice.
Indoor Unit Options
Indoor Wall Units (CTXS07LVJU, FTXS09LVJU, FTXS12LVJU, FTXS15LVJU) - Each indoor wall unit comes in a white finish and will fit flawlessly into any room decor. It can be installed on an interior or exterior wall and is connected to the outdoor compressor through a small opening in your wall, drilled behind the unit. The line set and wire (required, sold separately) are sent through the opening and connect to the compressor outside. A wireless remote is included for convenient operation from anywhere in the room. Available in 7,000, 9,000, 12,000, and 15,000 BTUs. This unit is also available in Silver. Please call for pricing and availability.
Emura Indoor Wall Units (in White) (FTXR09TVJUW, FTXR12TVJUW) - The Emura wall unit offers an updated, unique shape and will add a modern flare to any decor, while still blending quietly into any room. Like the standard wall unit, it is installed high on a wall and connects to the outdoor compressor through a small opening drilled in your wall, behind the unit. The line set and wire (required, sold separately) connect to the compressor outside through this opening. A wireless remote is included for convenient operation anywhere in the room. Available in 9,000 and 12,000 BTUs.
Vista Ceiling Cassette Units (FFQ09Q2VJU, FFQ12Q2VJU, FFQ15Q2VJU - The Vista Ceiling Cassette is a beautiful addition to the Daikin Line. The 2' X 2' Decorative Cover is included (BYFQ60C2WIW). It can be installed In a regular ceiling or a drop ceiling. In a drop ceiling, it will only occupy a single ceiling tile. Installation flexibility gives you the option of two, three or four way airflow. From the ceiling, it connects to the outdoor compressor through a small opening drilled in your wall. The line set and wire are required and sold separately. Additionally, no remote is included with this item but a wall mounted thermostat (BRC1E73) as well as an infrared remote (BRC082A42W) are available. 9,000, 12,000 or 15,000 BTUs units are available.
Slim Duct Units (FDXS09LVJU, FDXS12LVJU, FDMQ15RVJU) - Slim Duct Ceiling units are installed in a ceiling and hidden from view. The Daikin Slim Units are less than 8" high and require ducting as well as registers. The placement of the registers allows the conditioned air to be dispersed into the space where you need it. Depending on the size and shape of your space, a concealed unit can be ducted for multiple rooms or one single room. As an example, a 12,000 BTU unit will provide comfort control up to about 400 - 550 sq. ft. A wireless remote is included with each unit. 9,000, 12,000 or 15,000 BTU units are available.
Floor Standing Units (FVXS09NVJU, FVXS12NVJU, FVXS15NVJU) - A floor standing unit is a great option for a built in solution that provides heat at the floor level. It installs flush or recessed on the wall and is perfect for spaces that lack upper wall space. The unit itself measures about 27.5"W x 23.6"H x 8.25"D and is available in 9,000, 12,000 and 15,000 BTUs.
Mini Split Line Sets - Line sets are a requirement when installing a mini split system. They are the connection between the outdoor unit and the indoor units of your system. Every indoor unit needs to be connected directly to the outdoor unit with its own line set. Most Mini Split Line Sets come with flared connectors attached and are ready to install. Our line sets are offered with and without control wire and are available in various connection sizes and lengths to meet your installation needs. The line set shown in the photo does not include the control wire.

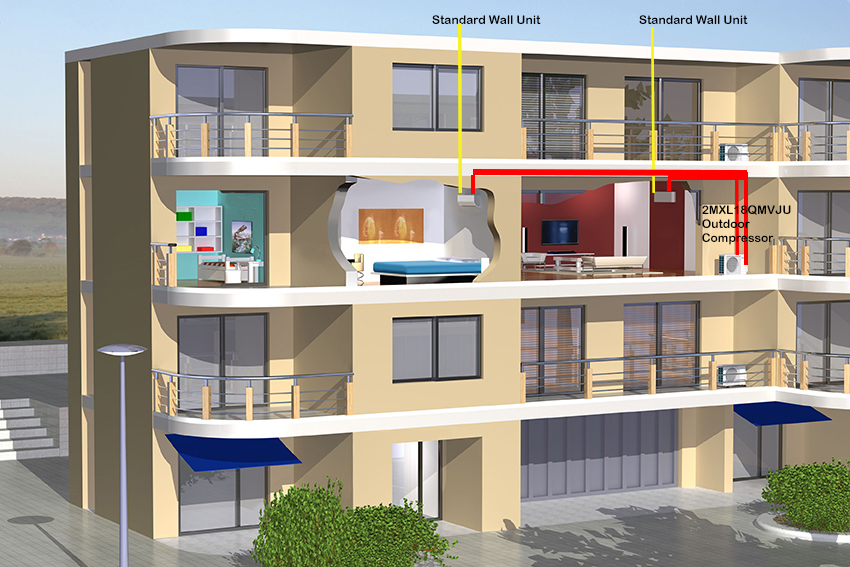

The 2MXL18QMVJU can be used with 2 indoor units. Above, is an example of a two zone layout in a multi-family dwelling.
Why Total Home Supply?
We are an Authorized Online Distributor for Daikin. Whether you have pre-sales questions or you need support after your order, we are here for you.This unit must be installed by a qualified licensed HVAC technician.
- Number of Zones:
- Maximum Number of Indoor Units:
- SEER (non-ducted indoor units):
- SEER (ducted indoor units):
- SEER (ducted & non ducted):
- Energy Star:
- Cooling Amps:
- Cooling BTUs:
- Includes Heat Pump:
- Heat Pump BTUs:
- HSPF (non-ducted):
- Outdoor Unit Noise Level (dBA):
- Circuit Breaker Size (Amps):
- Operating Range - Cooling:
- 14°F - 114.8°F
- Operating Range - Heating:
- -13°F - 60°F
- Min. Outdoor Temp for Heat °F:
- Inverter Technology:
- Pipe Length (No Addl Refr Req):
- Max. Pipe Length/Zone (ft.):
- Outdoor Unit Width (in.):
- Outdoor Unit Depth (in.):
- Outdoor Unit Height (in.):
- Outdoor Unit Weight (lbs.):
- Parts Warranty:
- 12 Years
- Compressor Warranty:
- 12 Years
- Labor Warranty:
- Max. Connected Outdoor BTU Capacity:
- Parts: 5 Years Limited Warranty if unit is not registered / 12 Years Limited Warranty if unit is properly registered online.
- Compressor: 5 Years Limited Warranty if unit is not registered / 12 Years Limited Warranty if unit is properly registered online.
- Labor: None
The warranty for this unit is for parts only, and does not cover labor or diagnostic services. Total Home Supply will handle all warranty parts requests for any mini split purchased from us, but installation and all troubleshooting for this unit must be performed by a licensed HVAC technician. Any fees the technician may charge are not reimbursable by the manufacturer or by Total Home Supply. Please call 877-847-0050 for more details or with any questions you may have regarding warranty information and installation of this unit.
