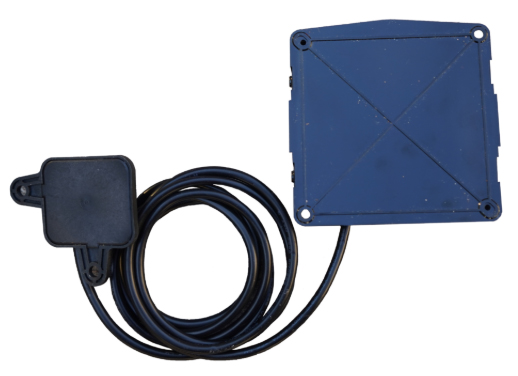

ICM ICM-UA2L-24C-DUAL Universal A2L Refrigerant Detection System

Sku:
ICM-ICMUA2L24CDUAL
In Stock, Ships Next Business Day
$219.11
The Universal Refrigerant Detection System is for systems that use A2L refrigerants. A2L refrigerants are mildly flammable and require mitigation controls to check for leaks. In the event of a refrigerant leak, the ICM-UA2L-24C-DUAL provides rapid-response compressor lockout and activates the system fan as well triggers an alarm. Compared to other refrigerant detection systems, the ICM-UA2L-24C-DUAL is designed specifically for use with the more prominent A2L refrigerants (R32 and R454B) being used today. It has a dual channel design allowing for coverage across multiple zones, detects and responds to leak detection and integrates into your HVAC control boards, Building Management System (BMS) /Modbus without add-ons. This integrations allows you to monitor you refrigerant levels remotely, log events as well as get alerts. The ICM-UA2L-24C-DUAL is not a portable detection sensor.

Features:
  • Fault Monitoring
  • Status, Power LED Indicators
  • Dry Contact Fan Output (N.C.) and Alarm Output (N.O.)
  • Dry Contact CC Output
  • MODBUS Communication to A2L Refrigerant Sensor
  • Common 1/4” Quick Connect Terminations
  • Support multiple leak detection sensors
  • Open-board with standoffs or plastic-enclosed assembly

Inputs:

  • Working voltage: 24 VAC, 50/60 Hz Input (SELV/Class 2)
  • Frequency: 50/60 Hz

Outputs:

  • 80mA @ 5VDC per RS-485 port maximum
  • K1: Dry Contact SPST
    • NO: CC Output; Class 2, 100VA (Nominal 2.5A @ 24V)
  • K2: Dry Contact SPDT
    • NC: Fan output; Class 2, 100VA (Nominal 4A @ 24V)
    • NO: Alarm signal; Class 2, 100VA (Nominal 4A @ 24V)

Environment:

  • Operating Temperature: -40°C to 70°C
  • Storage Temperature: -40°C to 85°C (not powered)
  • Relative Humidity: 0-95% RH
  • Pollution Degree: 2

Dimensions:

  • Length: 2.75″l x 4"w
  • Wire Harness: 6ft terminated wire harness

The ICM-UA2L-24C-DUAL is an indispensable tool for detecting and responding to R32 and R454B refrigerant leaks in your equipment.

FREE SHIPPING ON ALL ORDERS!

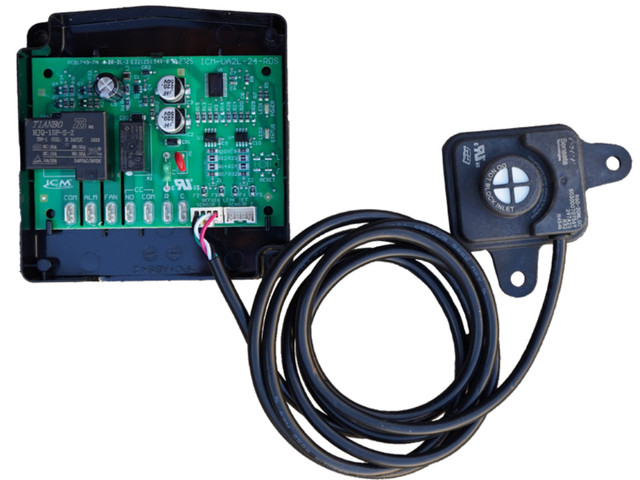

ICM ICM-UA2L-24C-DUAL Universal A2L Refrigerant Detection System
  • ICM ICM-UA2L-24C-DUAL Universal A2L Refrigerant Detection System
  • ICM ICM-UA2L-24C-DUAL Universal A2L Refrigerant Detection System

Product Overview

The Universal Refrigerant Detection System is for systems that use A2L refrigerants. A2L refrigerants are mildly flammable and require mitigation controls to check for leaks. In the event of a refrigerant leak, the ICM-UA2L-24C-DUAL provides rapid-response compressor lockout and activates the system fan as well triggers an alarm. Compared to other refrigerant detection systems, the ICM-UA2L-24C-DUAL is designed specifically for use with the more prominent A2L refrigerants (R32 and R454B) being used today. It has a dual channel design allowing for coverage across multiple zones, detects and responds to leak detection and integrates into your HVAC control boards, Building Management System (BMS) /Modbus without add-ons. This integrations allows you to monitor you refrigerant levels remotely, log events as well as get alerts. The ICM-UA2L-24C-DUAL is not a portable detection sensor.

Features:
  • Fault Monitoring
  • Status, Power LED Indicators
  • Dry Contact Fan Output (N.C.) and Alarm Output (N.O.)
  • Dry Contact CC Output
  • MODBUS Communication to A2L Refrigerant Sensor
  • Common 1/4” Quick Connect Terminations
  • Support multiple leak detection sensors
  • Open-board with standoffs or plastic-enclosed assembly

Inputs:

  • Working voltage: 24 VAC, 50/60 Hz Input (SELV/Class 2)
  • Frequency: 50/60 Hz

Outputs:

  • 80mA @ 5VDC per RS-485 port maximum
  • K1: Dry Contact SPST
    • NO: CC Output; Class 2, 100VA (Nominal 2.5A @ 24V)
  • K2: Dry Contact SPDT
    • NC: Fan output; Class 2, 100VA (Nominal 4A @ 24V)
    • NO: Alarm signal; Class 2, 100VA (Nominal 4A @ 24V)

Environment:

  • Operating Temperature: -40°C to 70°C
  • Storage Temperature: -40°C to 85°C (not powered)
  • Relative Humidity: 0-95% RH
  • Pollution Degree: 2

Dimensions:

  • Length: 2.75″l x 4"w
  • Wire Harness: 6ft terminated wire harness

The ICM-UA2L-24C-DUAL is an indispensable tool for detecting and responding to R32 and R454B refrigerant leaks in your equipment.

Tech Specs

Product Type:
Leak Detection
