Product Overview

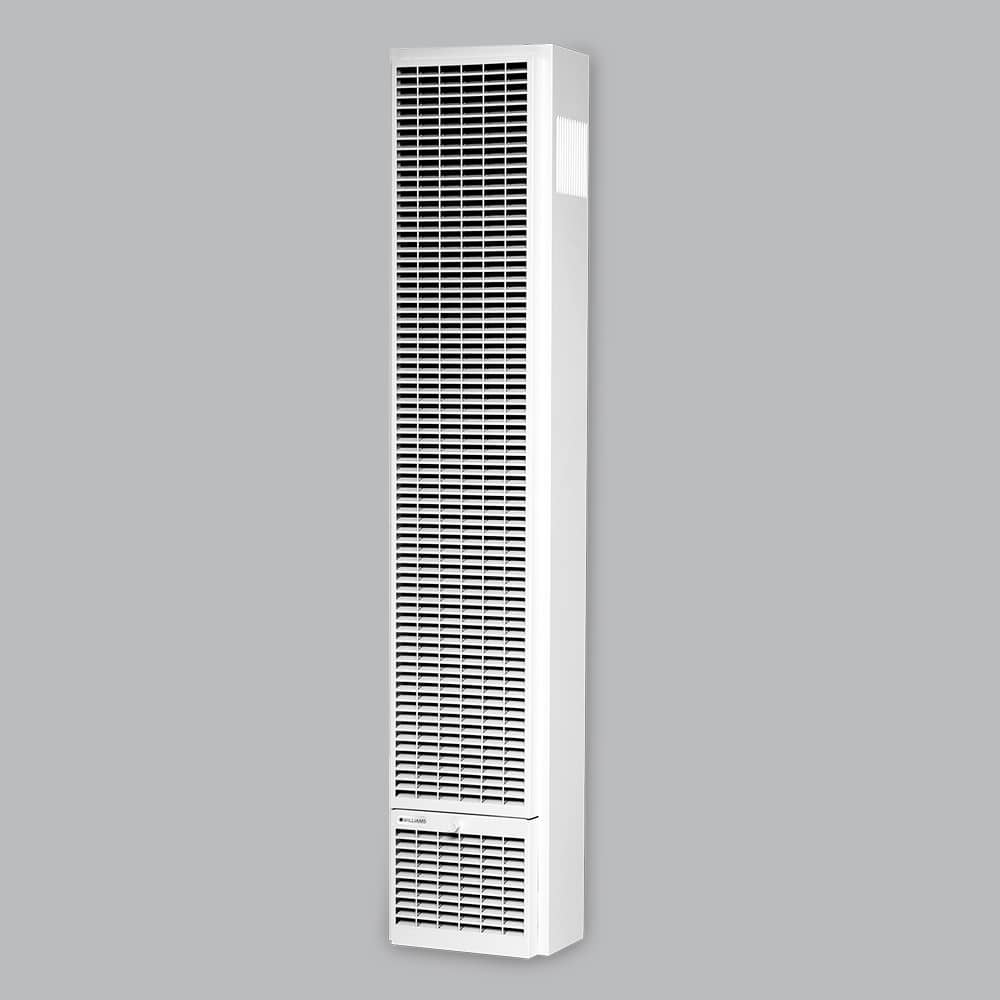

Winter can be brutal - the process of choosing a furnace doesn't have to be. The newest innovation from Williams Furnace Company is a highly efficient indoor heating unit that offers a proportional gas valve! The TG2030TN decides the amount of heat required and gives you 24,600 BTUs and adapts as necessary with its Dynamic Response. It will give you just enough heat for your desired environment for energy savings and a comfortable, consistent temperature. It is a great solution for spaces up to 1,000 sq. ft. The TG2030TN comes with a newly designed programmable thermostat. This new furnace is also very efficient offering 82% AFUE and Ultra Low NOx emissions. The TG2030TN will work to safely distribute heat throughout any indoor space at minimal cost.
The TG2030TN is only available in Natural Gas. There is no gas conversion kit available. This heater requires either an AC Power Supply Kit (M119046) for plug-in outlet connection OR an External Power Supply Kit (M119015) for hardwiring through the wall into your home's power supply. The Carmel TG2030TN furnace includes a digital thermostat.
Easily installed as a recessed or as a surface-mount unit, this single-side furnace is great for use in homes, schools, cabins, apartments, and shops, for ample heat and comfort wherever it is required. This unit does not have a standing pilot so there is no need to relight it when your heating season begins. This helps to save energy as well as eliminate methane gas emissions.
This unit is a top-vent furnace, which means that it is vented vertically up through the roof, so that all combustibles discharge directly outside. This way, the unit is able to be centrally (and safely) located inside the home and installed on the indoor wall of your choosing. The heat is produced in the lower portion of the unit and dispersed through the main front body of the unit. Quiet, circulating fans are part of the heating system and provide improved comfort and circulation.
Additionally, the Carmel High Efficiency Heater can only be used in installations up to 4,500 feet above sea level. There is no high altitude conversion kit available for this heater. A new, sleekly designed, programmable digital thermostat is included with this heater. Simply run the included cable from the attic (or crawl space) through the wall to the furnace and thermostat location, connect to the furnace, install mounting plate, connect the cable to the thermostat and mount the thermostat. The thermostat gives you the option of multiple heating schedules and temperature settings, BTU output, date and time and manual and auto Modes.
- 82% AFUE
- May be installed surface-mount (requires freestanding kit (4901) or recessed in the wall
- 1" Side Clearance
- Unique wall-mount design requires no floor space
- Featured in a soft-white, scratch resistant finish
- Check local codes and ordinances for permitted uses
- Servicing recommended by qualified service technician
Professional installation by a certified gas technician is required for this item.
Williams furnaces come factory set for elevations up to 2000 feet above sea level. The Williams Furnace TG2030TN can be used in installations up to 4500 ft. For elevations between 2000 and 4500 feet, adjust the thermostat settings to the appropriate elevation during installation.
Tech Specs
General Features
Performance Data
Venting
System Data
Gas Requirements
Clearances
Weights and Dimensions
Electrical Requirements
California residents see Prop 65 WARNINGS
WARNING!
Warning: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Product Warranty
Parts: 1 Year Limited
Combustion Chamber: 10 Year Limited
