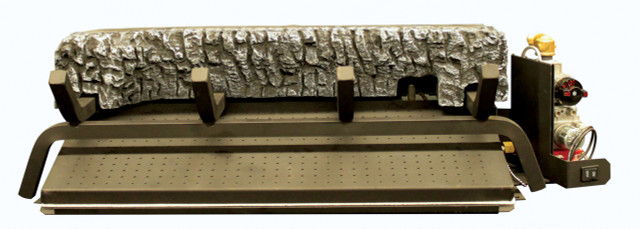

The main advantage of a vented burner is the more realistic yellow flame created by the open flue. Unfortunately, to get the more realistic fire-look, the heat goes up the chimney as well. But with the Elite Radiant Vented Burner, more heat is radiated back into your room.
- Front Width: 36"
- Height: 20"
- Rear Width: 30"
- Depth: 16"
- CHIMNEY HEIGHT: 10' Min.
For the Elite Radiant Burner with Variable Flame and Intermittent Pilot Valve, the Regulator Pressure Setting is 5.3", with Min. / Max. Gas Pressure of 6.0" / 10.5". This burner comes standard in Natural Gas. A Liquid Propane Conversion Kit (CKV122) is available separately. If this burner is converted to Liquid Propane, the Pressure Settings will be different.
A licensed gas technician is required for installation of this product. Please check your local regulations as some areas may require inspection after installation of gas products. It is highly recommended that you use your own gas technician or gas provider for any repairs.
-
- Type of Venting:
- Vented
-
- Fuel Type:
- Natural Gas (NG)
-
- Valve Type/Ignition:
- Electronic Ignition with Remote Included
-
- Remote:
- Included
-
- Fireplace Style:
- Single Sided
-
- Type of Grate:
- Standard
-
- Burner Use:
- Log Set
-
- Allowable Log Sets:
- Kensington Forest or Pioneer Only
-
- BTUs (Max.):
- 65000
-
- Location of Use:
- Indoor
-
- Location of Use:
- Mobile Home Approved
-
- Req. Min. Front Width (in.):
- 36"
-
- Req. Min. Rear Width (in.):
- 30"
-
- Req. Min. Depth (in.):
- 16"
-
- Req. Min. Height (in.):
- 20"
-
- Chimney Height (Min. ft.):
- 10'
Limited 1 Year Parts Warranty on Remotes, Accessories and Parts.
Limited 2 Year Parts Warranty on Valves.
Limited 5 Year Parts Warranty on Burners, Grates and Ceramic Fiber Logs.
Limited Lifetime Warranty of Refractory Logs.
