Product Overview

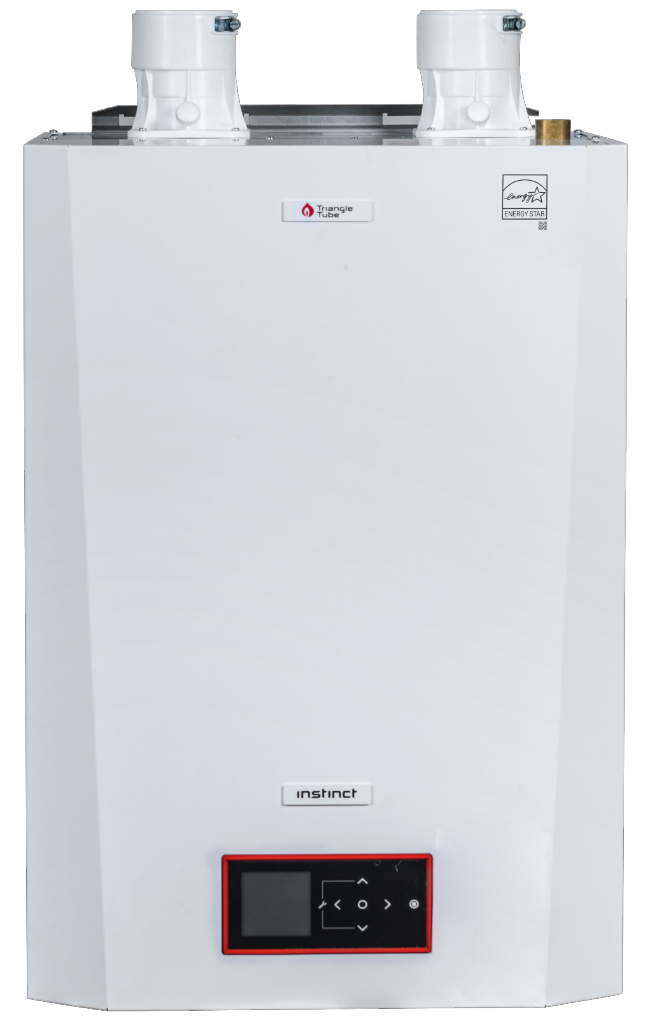

Triangle Tube is well known for its high efficiency hydronic boilers. The Instinct SOLO is a great option for a residential boiler. The Instinct line offers several installation and BTU options to best suit your needs. The Instinct line includes both wall mounted and floor standing options as well as boilers only (SOLO) and combination boilers / domestic hot water (COMBI). No matter which is right for you, the Instinct line boasts a 95% AFUE efficiency ratings and is Energy Star Certified. The INS110S is part of the Instinct SOLO line, meaning it is only a boiler. The Instinct COMBI, as the name implies, is a combination boiler and hot water heater. The SOLO line is not for Domestic Hot Water (DHW), but can be used with an indirect hot water heater.

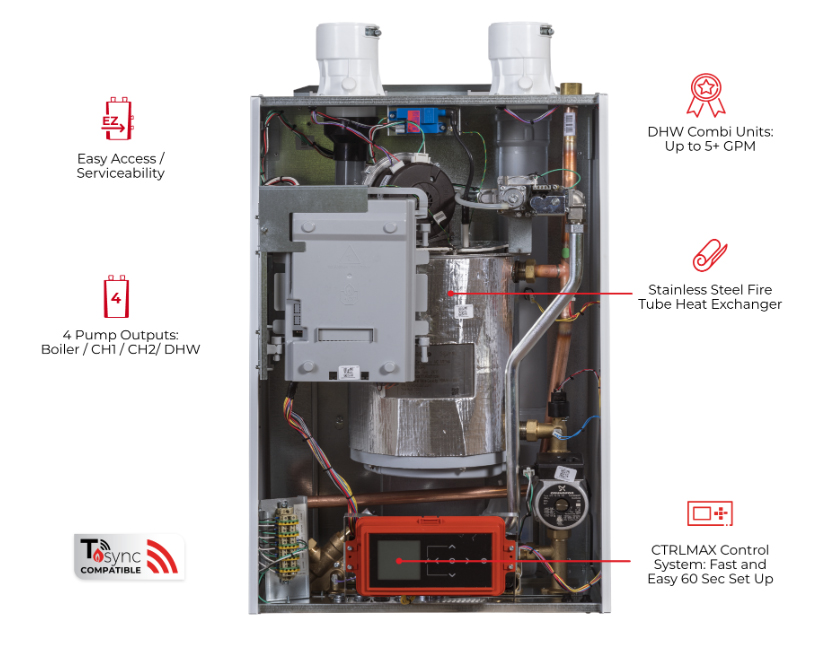

Triangle Tube is an innovator in Fire Tube Technology. With Fire Tube Technology, the hot combustion gases created pass through tubes, allowing the water to be heated by the combustion gases as they pass through the tubes. A 439 Stainless Steel fire tube heat exchanger is used in the Instinct boilers. With stainless steel, there is less corrosion and your exchanger is able to deliver a highly efficient condensing boiler with an extremely clean burn - all with no manual adjustments.
The Instinct line also has the Triangle Tube CTRLMax Control System. It features a 60-second, user-friendly set-up wizard in plain English and easy to follow graphics - no error codes to look up. Set up and troubleshooting made easy. Step by step instructions on the screen help to breeze you through the unit set-up. Additionally, Triangle Tube takes the guesswork out of setting up the system as it determines the correct combustion settings based on the altitude selected and the CNTRLMax System does all the monitoring. No more guesswork when it needs servicing. And in terms of servicing, everything is easily accessible from the front of the unit!
A boiler turndown ratio represents the difference between a boiler's maximum and minimum firing (heat output) capacity. The Triangle Tube turndown ratio, or range of operation, on the Instinct Wall Hung boilers, is 8:1. The INS110S can operate efficiently with a minimum firing capacity of 13,750 BTUs and conversely, will perform just as efficiently at its maximum firing capacity of 110,000 BTUs. This wide range of operating capacity also helps to avoid short cycling. The higher the turndown ratio, the more efficient your system is at lower heat loads.
The included 3-in-1 vent adapter gives you, and your installer, the convenience of choice for your venting material. It offers flexibility in choosing the venting material that is right for you. It is compatible with PVC, Polypropylene or Stainless Steel venting. The vent connection is 3", however when using 2" venting (reducer required), the vent length can only be 33'. When using a 3" vent, the vent length can be as long as 100'.
Some additional features included with the Instinct INS110S Boiler:
- Cascade control up to 6 Instinct Boilers
- VDC Modulation Input - 13,750 - 110,000 BTUs
- DOE Rated Heating Capacity - 102,000 BTUs
- AHRI Net Capacity - 89,000 BTUs
- Accepts two heating call inputs with independent outdoor reset curves
- Adjustable warm weather shut down and boiler freeze protection
- Includes Outdoor Temperature Sensor
Triangle Tube also offers a 3-tiered Warranty program on the Instinct and Prestige Boilers. Out of the box, all Instinct and Prestige Boilers come with a 2-year Parts and 10-year Heat Exchanger Warranty. But their "Peace of Mind Warranty Program" offers a BETTER warranty, adding a 2-year Labor Allowance, and extending the Parts Warranty to 5-years. The 10-year Heat Exchanger Warranty remains the same. For this warranty, simply provide the customer and contractor information, when registering. The third warranty in their program is the BEST warranty they offer. It increases the Labor Allowance to 3 years, and the Parts to 6-years. Again the 10-year Heat Exchanger Warranty remains unchanged. For Triangle Tube's BEST tier Warranty, in addition to providing the customer and contractor information, simply upload a photo of the combustion analyzer readings.
A Triangle Tube Instinct Boiler will run efficiently and quietly for years to come.
INSTALLATION BY A TRAINED, QUALIFIED AND LICENSED TECHNICIAN IS REQUIRED. Triangle Tube cannot accept any service or warranty calls from anyone but a licensed technician.
Tech Specs
General Features
Performance
Connections
Domestic Hot Water
Weights and Dimensions
Electrical Requirements
California residents see Prop 65 WARNINGS
WARNING!
Warning: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Product Warranty
Good - ENTRY-level warranty which offers a 2-year parts and 10-year primary heat exchanger warranty with your Triangle Tube Instinct or Prestige Boiler.
Better - MID-level warranty which offers a 5-year parts, 2-year labor allowance and 10-year heat exchanger warranty with your Triangle Tube Instinct or Prestige Boiler. *Offered when you register the installation, providing homeowner and contractor information.
Best - HIGH-level warranty which offers a 6-year parts, 3-year labor allowance and 10-year primary heat exchanger warranty with Triangle Tube Instinct or Prestige Boiler. Your Business will be added to the "Find a Contractor" section on the Triangle Tube website and highlighted as receiving the BEST warranty from the Triangle Tube warranty program. *Offered when you register the installation, providing homeowner and contractor information plus upload a picture of the combustion readings from your combustion analyzer.
