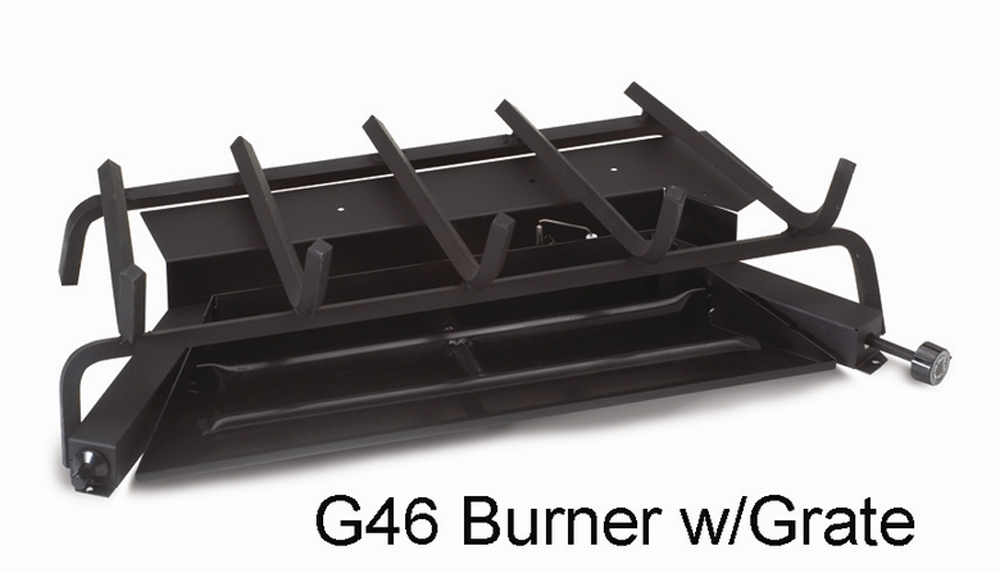

The G46 burner is Triple T burner and features an advanced glowing ember burner system. It includes valve/controls with remote control system. The tapered shape of the G46 burner allows attachment of the pilot kit to the angled side of the burner rather than the end, reducing the clearance by more than half, compared to other burners.

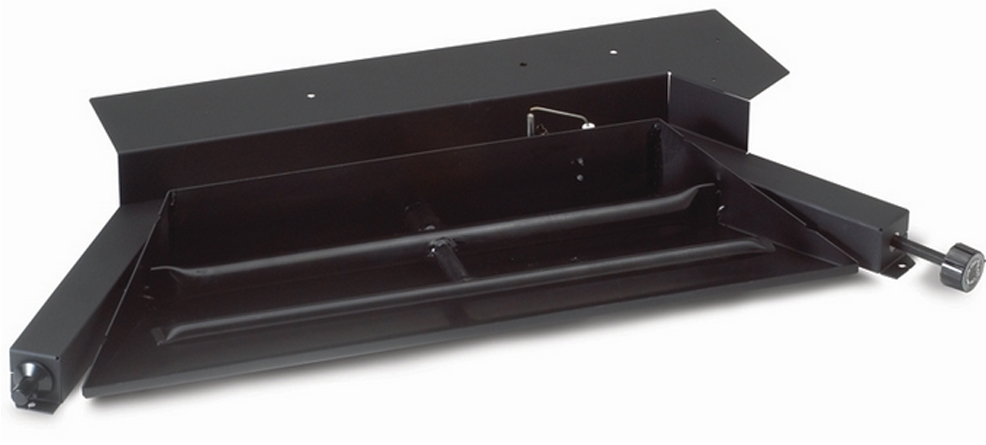

The G46 burner consists of a main burner tube that extends down the middle and a smaller front flame burner that "T"s off the main burner. The additional front flame allows you to position the burner directly beneath the logs helping to accentuate the front flame. This specialized burner also gives you a nice bed of glowing embers under beautiful dancing flames. With its front pipe, there are three additional spaces for the flames to come through, adding more depth to your fire. Its angled sides and required minimum firebox dimensions may allow for a larger log set in your fireplace and the burner offers more lively, realistic looking flames and glowing embers. Log Set sold separately.
The G46 Burner system includes:
- Control valve and regulator - EPK-02 electronic ignition pilotless valve
- Piezo Ignitor
- Glowing embers
- Connector kit
- Log locators
- Damper clamp
The EPK-2 is an Electronic Ignition Pilotless Remote Control Safety Valve system. It uses the latest technology with an energy saving automatic electronic ignition system and does NOT have a standing pilot. This electronic pilot kit features a transmitter and receiver with flame sensing pilot activation and a low profile vavlve. It can be operated manually or with the included basic RR-1A On/Off remote control. The fire can turned on and off from the remote control or manually with an on/off control inside the fireplace.
You can upgrade to RR-2 Deluxe Remote Control system with Thermostat, Timer, Clock and Room Temperature (sold separately).
Log set is sold separately.
|Burner Model||Minimum Fireplace Size||BTU Ratings|
|G46-18/20 ||26" ||20" ||15" ||17" ||40k ||40k |
|G46-24 ||30" ||24" ||15" ||17" ||55K ||55k |
|G46-30 ||35" ||29" ||15" ||17" ||65k ||65k |
|*The required widths allow for centering of the unit within the fireplace. For G46-**-02 models, add 6" to the front width and 4" to the rear width. Depth requirements begin inside the ash lip if one exists. |
