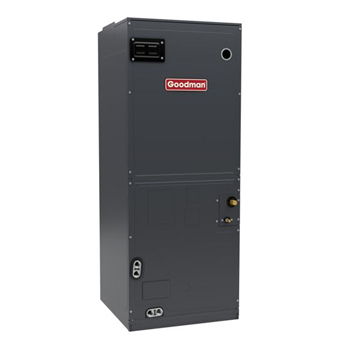

Goodman AHVE36CP1300 3 Ton Inverter Compatible Multi-Position Ducted Air Handler with EEV Expansion - ComfortNet Compatible

Sku:
GOODMAN-AHVE36CP1300
Usually Leaves Warehouse in 2 - 3 Business Days
$1,927.36
This is the indoor air handler ONLY.

An air handler is half of a two-piece split HVAC system. It contains the indoor coil and blower motor that circulates conditioned air through the ductwork and vents into your home. During warmer months, the coil stays cold to remove heat and humidity from the air, helping your home feel cooler and more comfortable. In colder months, the coil becomes warm, allowing heat to transfer into the air as it moves through the system. The AHVE Air Handlers feature an Electronic Expansion Valve to control and regulate the refrigerant airflow for your system. An EEV communicates electronically with the control board for precise response, constantly changing to maintain your comfort level and while helping maximize the efficiency of your air system.

The Goodman AHVE36CP1300 3-ton air handler is equipped with a variable speed ECM motor. Unlike a traditional PSC motor that runs at fixed speeds, with hard stops and starts during operation, a variable speed ECM motor varies the fan speed constantly to maintain your set requirements.

The AHVE line is fully compatible with ComfortNet communicating thermostats, for an optimized, efficient system. While the system can also use a standard 24V thermostat like Nest or Honeywell, doing so may limit many advanced features, reducing the system efficiency and performance.

The AHVE36CP1300 3 ton air handler can be paired with several outdoor Goodman S-Series condensers. Depending on the series, the air handler can be used with 2, 2-1/2 and 3 ton condensers:
  • GZV6SA3010, GZV6SA3610
  • GZV7SA2410
  • GXV6SS3010, GXV6SS3610
  • GXV6SA2410, GXV6SA3010
  • GXV9SA2410

This unit must be installed by a qualified, licensed HVAC technician.


FREE SHIPPING ON ALL ORDERS!
Goodman AHVE36CP1300 3 Ton Inverter Compatible Multi-Position Ducted Air Handler with EEV Expansion - ComfortNet Compatible

Product Overview

This is the indoor air handler ONLY.

An air handler is half of a two-piece split HVAC system. It contains the indoor coil and blower motor that circulates conditioned air through the ductwork and vents into your home. During warmer months, the coil stays cold to remove heat and humidity from the air, helping your home feel cooler and more comfortable. In colder months, the coil becomes warm, allowing heat to transfer into the air as it moves through the system. The AHVE Air Handlers feature an Electronic Expansion Valve to control and regulate the refrigerant airflow for your system. An EEV communicates electronically with the control board for precise response, constantly changing to maintain your comfort level and while helping maximize the efficiency of your air system.

The Goodman AHVE36CP1300 3-ton air handler is equipped with a variable speed ECM motor. Unlike a traditional PSC motor that runs at fixed speeds, with hard stops and starts during operation, a variable speed ECM motor varies the fan speed constantly to maintain your set requirements.

The AHVE line is fully compatible with ComfortNet communicating thermostats, for an optimized, efficient system. While the system can also use a standard 24V thermostat like Nest or Honeywell, doing so may limit many advanced features, reducing the system efficiency and performance.

The AHVE36CP1300 3 ton air handler can be paired with several outdoor Goodman S-Series condensers. Depending on the series, the air handler can be used with 2, 2-1/2 and 3 ton condensers:
  • GZV6SA3010, GZV6SA3610
  • GZV7SA2410
  • GXV6SS3010, GXV6SS3610
  • GXV6SA2410, GXV6SA3010
  • GXV9SA2410

This unit must be installed by a qualified, licensed HVAC technician.



Tech Specs

General Features

Indoor Unit Type:
Multi-Position Air Handler
Cooling Capacity (Tonnage):
3 Tons
Cooling BTUs:
36000

Piping / Line Set Requirements

Line Set Liquid Line:
3/8"
Line Set Suction Line:
7/8"

Weights and Dimensions

Width (in.):
21
Depth (in.):
21
Height (in.):
53.438
Weight (lbs.):
140

Electrical Requirements

Voltage:
208-230V
Amps:
6.5
Circuit Breaker Size (Amps):
15
California residents see Prop 65 WARNINGS

Warning WARNING!

Warning: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Product Warranty

  • Parts: 5 Years Limited Warranty if unit is not registered / 10 Years Limited Warranty if unit is properly registered online.
  • Labor: None

The warranty for this unit is for parts only, and does not cover labor or diagnostic services. Total Home Supply will handle all warranty parts requests for any Goodman unit purchased from us, but installation and all troubleshooting for this unit must be performed by a licensed HVAC technician. Any fees the technician may charge are not reimbursable by the manufacturer or by Total Home Supply. Please call 877-847-0050 for more details or with any questions you may have regarding warranty information and installation of this unit.
