Product Overview

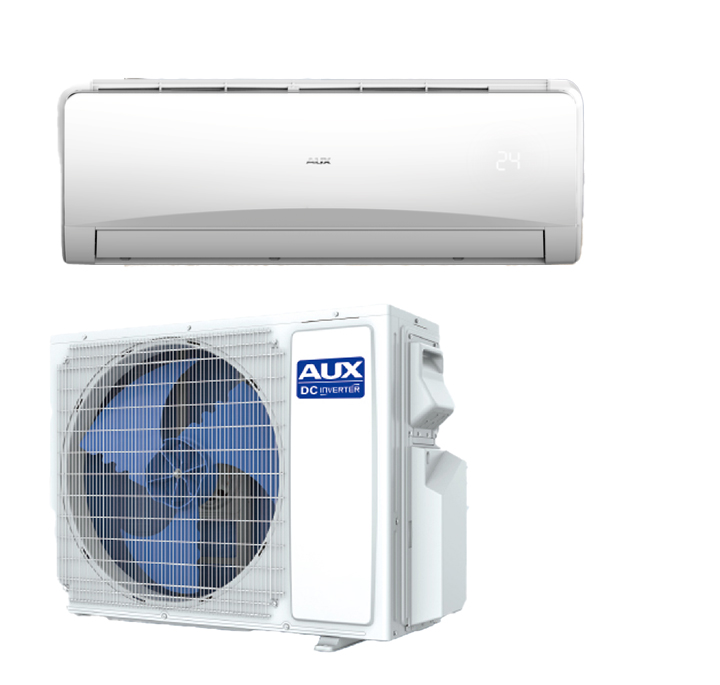

The AUX line of SEER20 single zone mini split systems offers a host of convenient features. The C-SEER20 Series delivers efficient cooling with outdoor temperatures ranging from 5°F to 125°F and reliable heating from -13° - 75°F - providing dependable, year-round comfort from the coldest winter days to the warmest summer weather! The 36,000 BTU AJAN36HP230V1C system, includes both the AJAN36HP230V1CH indoor wall unit and the AJAN36HP230V1CO outdoor unit. The system delivers 33,600 BTUs cooling and 34,000 BTUs heat pump operation. It uses 230V electricity. The system has high energy ratings with a SEER2 Rating of 20.0 and HSPF2 of 8.5. It is also Energy Star Certified with an EER2 rating of 10.1.
When you are in the room, the AJAN36HP230V1CH wall unit offers voice-control operation (English Only) to give you control using simple commands, without the need for an app or your remote. Additionally, built-in WiFi control allows operation of your system via the app from anywhere. The indoor unit allows you to choose your fan speeds (L/M/H) plus offers AUTO (which adjusts speed automatically). Additionally, you can choose from Quiet (Q) for extra low fan speed and minimal noise as well as Super High (SH) for rapid cooling or heating.
The AUX AJAN36HP230V1CO outdoor unit features a variable speed (inverter) compressor for improved efficiency and comfort. An inverter compressor offers smoother temperature control, quieter operation and better energy efficiency. As noted the unit will provide dependable heat at a wide range of ambient (outdoor) temperatures. Below is a chart of heating capacities at different ambient temperatures:
| Ambient Temp. | BTUs @°F |
| 47°F: | 34000 |
| 17°F: | 24400 |
| 5°F: | 23800 |
| -5°F: | 17000 |
The AUX mini-splits are easy to install right out of the box, typically requiring a single person for installation*. The installation template includes a built-in level and the kick-stand and removable underjaw help the process move quickly and easily. AUX indoor wall units include an easy-to-reach, vertically mounted PCB for improved serviceability. A unique feature for the AUX line of mini-splits is "I-Feel". The remote has a temperature sensor that detects the temperature around the user and adjusts for maximum comfort. The indoor unit has an LED display to easily see the temperature and any error codes. It can be turned off for a sleeker look.
- AUX kickstand offers easy installation for one technician
- Easy access for maintenance on wall-mounted unit
- Auto Self-Clean - washes particulates from the coil, providing fresh, clean, healthy air to your space
- Cooling/Heating/Fan/Auto Mode
- Voice control - operate from across the room with your voice - no WiFi needed
- Built-In WiFi - access your system from anywhere
- Surge Cool/Heat
- Natural air flow
- Ultra quiet operation
- Sleep mode
- Auto restart
- 24-hour on/off timer
- Hidden display (only visible during operation)
- Base Pan Heater - automatically turns on in low temperatures, reducing freezing while improving efficiency
- Golden Fin Anti-Corrosion coating - reduces corrosion and oxidation versus Blue Fin
- PCB board placed vertically PLUS UV adhesive cover - further reduces corrosion, wear and damage resulting in lower failure rates and lower maintenance costs
- 36000 BTU outdoor unit
- 36000 BTU compatible wall unit
- Wireless LCD remote control (batteries included)
- Installation plate and hardware
- Owner's manual
- Installation manual
Line sets are required (sold separately).
