Williams Furnace Company Slim Tech Heated Air Curtain, 208/1/60

Williams Furnace Williams Furnace
Availability: Usually Leaves Warehouse in 2 to 4 Weeks
Product Code:WILLIAMS-FURNACE-SLIMTHEAT208
Price: $1,258.40 Price: $2,860.00
*
*

Not Purchasable: Not done configuring

Qty
or
Loading Bread...
Free Shipping on all Orders!
  • Description

    Air doors are an ideal solution to commercial or industrial business entrances. They also work well in cold-storage rooms, patios and schools. In a cold-storage warehouse, a heated air door will allow a continuous flow of warm air to blow down into your entry way, warming your customers or employees the instant they walk in or out while eliminating the loss of refrigeration due to an open door.

    The Williams Slim Tech Heated Air Curtains are available for use with 208 Volt, single phase electrical. Additionally, Slim Tech Air Curtains are also available in Jet Black or Soft White to blend with your installation requirements.

    The Slim Tech Series Air Curtains provide a sleek, quiet, consumer-friendly design with uniform performance across windows and doors up to 8-ft. mounting heights. The Slim Tech Line Air Curtains can be installed on the interior and used between either interior / interior or interior / exterior spaces and offer a relatively low profile design as well:
    Features:
    • Environmental separation for up to 8'
    • Flying insect control
    • Sanitation barrier against airborne contaminants
    • Quiet operation
    • Slim profile design
    • Back mounting plate
    • Variable speed switch
    • 1/4 hp motor (s) (single motor on units 36 - 72"; 2 motors on units 84" and longer)
    • Simple installation with threaded-rod option
    • Low maintenance and installation cost
    • Meet requirements of National Electric Code and are ETL certified to UL Standard 1995

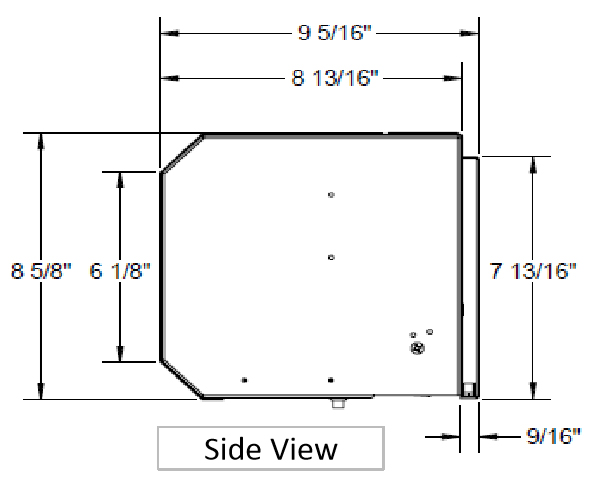

    Model Dimensions (LxWxH) Color Full Load Heater Amps Volume
    208 Volt



    SLIMT036-09CBL
    36" x 8 13/16" x 8 5/8"Black / White
    44.8 amps1500 CFM
    SLIMT042-09CBL
    42" x 8 13/16" x 8 5/8" Black / White
    44.8 amps 1850 CFM
    SLIMT048-09CBL
    48" x 8 13/16" x 8 5/8" Black / White
    44.8 amps 1875 CFM
    SLIMT060-14CBL
    60" x 8 13/16" x 8 5/8" Black / White
    ~68.8 amps 2400 CFM
    SLIMT072-14CBL
    72" x 8 13/16" x 8 5/8" Black / White
    ~68.8 amps 2900 CFM
    SLIMT084-18CBL*
    2 42" models side x side
    PLUS 1/8" for trim kit
    Black / White


    SLIMT096-18CBL*
    2 48" models side x side
    PLUS 1/8" for trim kit
    Black / White


    SLIMT108-18CBL*
    1 60" models and 1 48" model side x side
    PLUS 1/8" for trim kit
    Black / White


    SLIMT120-28CBL*
    2 60" models side x side
    PLUS 1/8" for trim kit
    Black / White


    SLIMT144-28CBL*
    2 72" models side x side
    PLUS 1/8" for trim kit
    Black / White



    *Units 84" and longer actually consist of a combination of 2 smaller units to make up the desired length plus an additional 1/8" for the trim kit. These units require two power sources. For example, a unit that is 108" long would include a 48" unit and a 60" unit. Remember to include an additional 1/8" for the trim kit.
  • Tech Specs

    Max. Door/Window Height (ft.)
    8
    Nozzle Width (in.)
    2.5 "
    Heat
    Yes
    Horsepower
    1/4
    Amps
    1.5
    Voltage
    208V
    Depth (in.)
    8.813 "
    Height (in.)
    8.625 "
    Certifications
    ETL
    Parts Warranty
    5 Years
    Labor Warranty
    None
  • Manuals and Guides
