LG's NEW Multi-F Systems are equipped with LGRED° Heat Technology featuring low temperature heating down to -13°F!

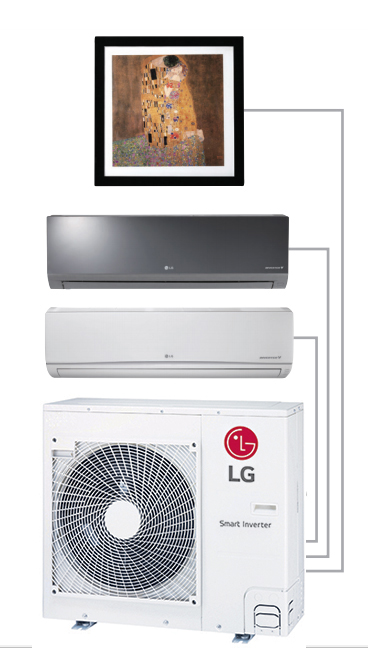

Year round comfort control is here. With the new LG LMU240HHV Multi-F mini split system, you can provide the right temperature and customize the look in up to three rooms. It is a 24,000 BTU configurable tri-zone mini split air conditioning and heating system. LG's Flex Multi-Split Tri-Zone air conditioner system gives you the opportunity to install two or three independently operated, indoor units virtually anywhere in your home.
The Multi-F / Flex Systems are not only cost and energy efficient, they are also able to offer comfort year round with enhanced cooling and heating ranges. Featuring LGRED° Heat Technology, this system can be used as a primary heat source in most of the country. It can be operated in the heating mode when temperatures get down as low as -13°F. When it is as cold as 5°F, it will perform at 100% heating capacity! The system will also provide low ambient cooling to 14°F. Add a Low Ambient Kit (sold separately) for cooling operation down to -4°F.
The LMU240HHV offers a cooling capacity of 24,000 BTUs (with non-ducted units) and a combined connectivity BTU rating of up to 33,000. Although this is a three-port system, a minimum of two units must be connected. Connectable indoor units include both wall mounted and ceiling units.
When used in non-ducted installations, the LMU240HHV is an Energy Star Rated mini-split air conditioner and its heat system is capable of year round comfort control in most of the United States. With its expanded cooling and heating parameters, it is capable of heating when outdoor temperatures are as cold as -13°F. If there is a need to keep your space cool, the cooling capabilities are great on this system as well. The system can operate in the cooling mode with outside temperatures as low as 14°F (down to -4°F with a low ambient kit installed). The new LGRED° Heat Technology Systems also include a factory installed Base Pan Heater to ensure better heat performance in colder weather.
The LMU240HHV can accommodate various combinations of indoor units ranging from 7,000 BTUs up to 18,000 BTUs per zone. This flexibility of the various BTUs and unit types available allows you to customize your look to match the size and decor of the room you need to heat and cool. Each unit operates with its own remote or thermostat (depending on the units you choose). Unlike a central air system that heats and cools your entire house regardless of whether you are using the rooms or not, a mini-split system gives you complete control. Whether you are adding air conditioning to an existing structure or an extension, the LMU240HHV is easily installed without additional renovations. Each unit is installed with a small 3" hole in the wall, for the line set, that connects the indoor and outdoor units. Individual line sets are required for each indoor unit (sold separately).
Standard features of the LMU240HHV outdoor unit include an energy efficient variable speed inverter compressor, defrost/deicing capabilities, three minute restart delay, and a self diagnosis system. The outdoor unit also features a soft start to reduce power surges on the electrical system. It operates when the outside temperature is as low as 14°F in the cooling mode and from -13°F to 75°F in the heating mode. To top it all off, it uses environmentally friendly R-410A refrigerant and is pre-charged for up to 73.8’ of line.
LG offers ultimate flexibility and configurability in your selection of the indoor units for this system - two are required but up to three are allowable. All indoor units offer a variety of fan speed options and auto restart operation. You can use the dropdown boxes above to customize your system. Need help deciding? Contact us for expert advice.
Indoor Unit Options
Standard Wall Unit (LMN079HVT, LSN090HSV5, LSN120HSV5, LMN159HVT, LSN180HSV5, LMN249HVT) - The standard wall unit comes in a white finish and will blend quietly and seamlessly into any room decor. It is installed high on a wall. It connects to the outdoor compressor through a small opening in your wall, drilled behind the unit. The line set and wire (required, sold separately) are sent through the opening and connect to the compressor outside. A wireless remote is included for convenient operation from anywhere in the room. These units have built-in WiFi! Available in 7,000, 9,000, 12,000, 15,000, 18,000 and 24,000 BTUs for use with the LMU240HHV.
Art Cool Wall Unit (LAN090HSV5, LAN120HSV5, LAN180HSV5) - The Art Cool wall unit comes in a reflective, smoky black, mirrored finish that will add a modern flare to any decor, while still blending quietly into any room. Like the standard wall unit, it is installed high on a wall and connects to the outdoor compressor through a small opening drilled in your wall, behind the unit. The line set and wire (required, sold separately) connect to the compressor outside through this opening. A wireless remote is included for convenient operation anywhere in the room. These units have built-in WiFi! Available in 9,000, 12,000 and 18,000 BTUs for the LMU240HHV.
Art Cool Gallery (LMAN097HVP, LMAN127HVP) - An Art Cool Gallery unit can be a beautiful, non-obtrusive way to get conditioned air into any room of your choice. A 2’ x 2’ frame allows you to display a personal piece of artwork (or the included piece). The air is dispersed quietly and efficiently from the edges and bottom of the frame into your room. It is installed on a wall and connects to the outdoor compressor through a small opening drilled in your wall, behind the unit. The line set and wire (required, sold separately) connect to the compressor outside through this opening. A wireless remote is included for easy control. Available in 9,000 or 12,000 BTUs.
Ceiling Concealed Ducted Low Static Unit (LDN097HV4, LDN127HV4, LDN187HV4) - Low Static Concealed Ceiling units are installed in a ceiling and hidden from view. They require ducting as well as registers. The registers allow the conditioned air to come down into the space. Depending on the size and shape of your space, a concealed unit can be ducted for multiple rooms or one single room. As an example, an 18000 BTU unit will provide comfort control up to about 825 sq. ft. A drain pump is included with this unit. A controller is required to operate each indoor unit. One is not included with the unit. Available controllers include a wired simple controller PREMTC00U, or a wired, touchscreen controller PREMTA000 (each sold separately). Wire required to connect the Indoor unit to the wired controller is not included (PZCWRC1 - sold separately). Available in 9,000, 12,000 and 18,000 BTUs for the LMU240HHV.
Ceiling Cassette Unit (LMCN078HV, LCN098HV4, LCN128HV4, and LCN188HV4) - A ceiling cassette installs into the ceiling and offers 4-way airflow into your space. A grille is required on a ceiling unit (standard white grille included) and air is dispersed from all 4 sides of the grille. A ceiling cassette can be installed in the center of a room, allowing airflow all around. Alternatively, it can be installed along the edge of a room, closing off 1 or more "vents" for customized air flow. A drain pump is included with this unit as well as a wireless remote control. Available in 7,000, 9,000, 12,000 and 18,000 BTUs for the LMU240HHV.
Vertical Air Handler Unit (VAHU) (LVN181HV4) - The LVN181HV4 is a 4-way, multi-position air handler. A vertical air handler may be used as a way of replacing a conventional air handler currently being used as part of a central system. Another possibility may be that you are looking to zone your dwelling with a mini split system regardless of whether you are using existing ductwork or adding new. With the 18,000 BTUs offered, it can be ducted into several rooms totaling about 800 sq ft and cool them both appropriately and efficiently. Regardless of the number of spaces you are cooling/heating, a wall mounted thermostat controls this zone. A controller is required to operate each indoor unit. One is not included with the unit. Available controllers include a wired simple controller PREMTC00U, or a wired, touchscreen controller PREMTA000 (each sold separately). Wire required to connect the Indoor unit to the wired controller is not included (PZCWRC1 - sold separately).
Low Wall Console (LQN090HV4, LQN120HV4, and LMQN150HV) - A low wall console unit unit can be installed as a flush or recessed mounted wall/floor standing unit. The air is dispersed quietly and efficiently from the bottom of the unit and into your room. It is installed low on a wall and connects to the outdoor compressor through a small opening drilled in your wall, behind the unit. The line set and wire (required, sold separately) connect to the compressor outside through this opening. A wireless remote is included for easy control. Available in 9,000, 12,000 and 15,000 BTUs.
Mini Split Line Sets - Line sets are a requirement when installing a mini split system. They are the connection between the outdoor unit and the indoor units of your system. Every indoor unit needs to be connected directly to the outdoor unit with its own line set. Most Mini Split Line Sets come with flared connectors attached and are ready to install. Our line sets are offered with and without control wire and are available in various connection sizes and lengths to meet your installation needs. The line set shown in the photo does not include the control wire.
Why Total Home Supply?
We are an LG Authorized Online Distributor. We are also the only online seller to have an LG Technical Service Advisor on staff. Whether you have pre-sales questions or you need support after your order, we are here for you. We are an LG Authorized Parts Distributor meaning any warranty parts requests are processed quickly and easily.This unit must be installed by a qualified licensed HVAC technician.
- Number of Zones:
- 2 - 3
- Maximum Number of Indoor Units:
- SEER (non-ducted indoor units):
- SEER (ducted indoor units):
- SEER (ducted & non ducted):
- Energy Star:
- Cooling Amps:
- Includes Heat Pump:
- Cooling BTUs:
- Heat Pump BTUs:
- Heat Pump Heating Amps:
- HSPF (non-ducted):
- Outdoor Unit Noise Level (dBA):
- Circuit Breaker Size (Amps):
- Operating Range - Cooling:
- 14° F ~ 118° F
- Operating Range - Heating:
- -13° F ~ 75° F
- Min. Outdoor Temp for Heat °F:
- Inverter Technology:
- Pipe Length (No Addl Refr Req):
- Max. Pipe Length/Zone (ft.):
- 82' / 246.1' Total
- Outdoor Unit Width (in.):
- Outdoor Unit Depth (in.):
- Outdoor Unit Height (in.):
- Outdoor Unit Weight (lbs.):
- AHRI Certified
- Parts Warranty:
- 10 Years
- Compressor Warranty:
- 10 Years
- Labor Warranty:
- Max. Connected Outdoor BTU Capacity:
Product WarrantyLIMITED WARRANTY:
1. STANDARD FIVE (5) YEAR WARRANTY FOR A QUALIFIED SYSTEM - The Part(s) of a qualified System, including the compressor, are warranted for a period (the “Standard Parts Warranty Period”) ending five (5) years after the date of original installation. In absence of proof of installation the warranty date will end five (5) years from the date of manufacture.
2. ADDITIONAL TWO (2) YEAR COMPRESSOR PART WARRANTY - The Compressor is warranted for an additional two (2) year period after the end of the applicable Standard Part Warranty Period (the Compressor Warranty Period”).
The Standard Warranty Period and the Compressor Warranty Period are extended to a total of ten (10) years (the “Extended Warranty Period”) for qualified Systems that have been (a) installed by a party that has completed the Training Requirements, (b) installation is pursuant to LG’s published instructions, and (c) product is registered within 60 days of startup at www.lg-dfs.com or www.lg-dfs-warranty.com.
