Get year-round comfort in all areas of your home!

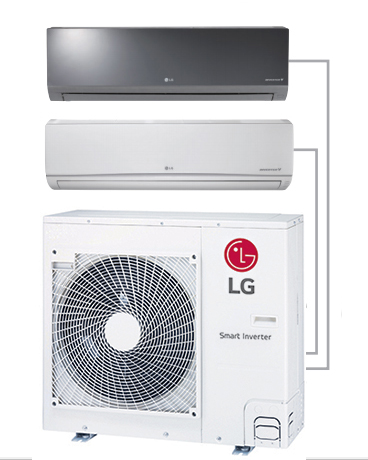

The LG LMU180HV is an 18,000 BTU mini split AC, with a configurable dual-zone air conditioning and heating system. LG's Flex Multi-Split Dual Zone air conditioner system gives you the opportunity to install two indoor units in separate areas of your home. The LMU180HV offers a combined connectivity BTU rating of up to 24,000 and can be configured to include a combination total of 2 wall mounted and/or ceiling units. Whether connected with non-ducted, ducted units or a combination, the system maintains its Energy Star Qualification.
The Multi-F / Flex Systems are not only cost and energy efficient, they are also able to offer comfort year round with enhanced cooling and heating ranges. This system can be used as a primary heat source in most of the country. It is capable of heating when outdoor temperatures are as cold as -4°F. If there is a need to keep your space cool, the cooling capabilities are great on this system as well. The system can operate in the cooling mode with outside temperatures as low as 14°F. With the addition of the optional drain pan heater (PQSH1203), the cooling operation can be enhanced to -4°F.
Each unit operates with its own remote or thermostat (depending on the units you choose), so there is no need to condition the room you are not using. The LMU180HV can be easily installed without major renovations. Individual line sets are required for each indoor unit (sold separately), and only require about a small 3” hole for each unit. The line sets run from each indoor unit to the outdoor unit.
Standard features of the LMU180HV outdoor unit include an energy efficient variable speed inverter compressor, defrost/deicing capabilities, three minute restart delay, and a self diagnosis system. It also includes soft start which reduces power surges on the electrical system. It operates when the outside temperature is as low as 14°F in the cooling mode and from -4°F to 64°F in the heating mode. To top it all off, it uses environmentally friendly R-410A refrigerant and is pre-charged for up to 98’ of line.
LG offers ultimate flexibility and configurability in your selection of the two indoor units required for this system. All indoor units offer a variety of fan speed options and auto restart operation. You can use the dropdown boxes above to customize your system. Need help deciding? Contact us for expert advice.
Indoor Unit Options
Standard Wall Unit (LMN079HVT, LSN090HSV5, LSN120HSV5, LMN159HVT) - The standard wall unit comes in a white finish and will blend quietly and seamlessly into any room decor. It is installed high on a wall. It connects to the outdoor compressor through a small opening in your wall, drilled behind the unit. The line set and wire (required, sold separately) are sent through the opening and connect to the compressor outside. A wireless remote is included for convenient operation from anywhere in the room. These units have built-in WiFi! Available in 7,000, 9,000, 12,000, and 15,000 BTUs for use with the LMU180HV.
Art Cool Wall Unit (LAN090HSV5, LAN120HSV5) - The Art Cool wall unit comes in a reflective, smoky black, mirrored finish that will add a modern flare to any decor, while still blending quietly into any room. Like the standard wall unit, it is installed high on a wall and connects to the outdoor compressor through a small opening drilled in your wall, behind the unit. The line set and wire (required, sold separately) connect to the compressor outside through this opening. A wireless remote is included for convenient operation anywhere in the room. These units have built-in WiFi! Available in 9,000, and 12,000 BTUs for the LMU180HV.
Art Cool Gallery (LMAN097HVP, LMAN127HVP) - An Art Cool Gallery unit can be a beautiful, non-obtrusive way to get conditioned air into any room of your choice. A 2’ x 2’ frame allows you to display a personal piece of artwork (or the included piece). The air is dispersed quietly and efficiently from the edges and bottom of the frame into your room. It is installed on a wall and connects to the outdoor compressor through a small opening drilled in your wall, behind the unit. The line set and wire (required, sold separately) connect to the compressor outside through this opening. A wireless remote is included for easy control. Available in 9,000 or 12,000 BTUs.
Ceiling Concealed Ducted Low Static Unit (LDN097HV4, LDN127HV4)- Low Static Concealed Ceiling units are installed in a ceiling and hidden from view. They require ducting as well as registers. The registers allow the conditioned air to come down into the space. Depending on the size and shape of your space, a concealed unit can be ducted for multiple rooms or one single room. As an example, an 18000 BTU unit will provide comfort control up to about 825 sq. ft. A drain pump is included with this unit. A controller is required to operate each indoor unit. One is not included with the unit. Available controllers include a wired simple controller PREMTC00U, or a wired, touchscreen controller PREMTA000 (each sold separately). Wire required to connect the Indoor unit to the wired controller is not included (PZCWRC1 - sold separately). Available in 9,000, and 12,000 BTUs for the LMU180HV.
Ceiling Cassette Unit (LMCN078HV, LCN098HV4, LCN128HV4) - A ceiling cassette installs into the ceiling and offers 4-way airflow into your space. A grille is required on a ceiling unit (standard white grille included) and air is dispersed from all 4 sides of the grille. A ceiling cassette can be installed in the center of a room, allowing airflow all around. Alternatively, it can be installed along the edge of a room, closing off 1 or more "vents" for customized air flow. A drain pump is included with this unit as well as a wireless remote control. Available in 7,000, 9,000, and 12,000 BTUs for the LMU180HV.
Low Wall Console (LQN090HV4, LQN120HV4, and LMQN150HV) - A low wall console unit unit can be installed as a flush or recessed mounted wall/floor standing unit. The air is dispersed quietly and efficiently from the bottom of the unit and into your room. It is installed low on a wall and connects to the outdoor compressor through a small opening drilled in your wall, behind the unit. The line set and wire (required, sold separately) connect to the compressor outside through this opening. A wireless remote is included for easy control. Available in 9,000, 12,000 and 15,000 BTUs.
Mini Split Line Sets - Line sets are a requirement when installing a mini split system. They are the connection between the outdoor unit and the indoor units of your system. Every indoor unit needs to be connected directly to the outdoor unit with its own line set. Most Mini Split Line Sets come with flared connectors attached and are ready to install. Our line sets are offered with and without control wire and are available in various connection sizes and lengths to meet your installation needs. The line set shown in the photo does not include the control wire.
Why Total Home Supply?
We are an LG Authorized Online Distributor. We are also the only online seller to have an LG Technical Service Advisor on staff. Whether you have pre-sales questions or you need support after your order, we are here for you. We are an LG Authorized Parts Distributor meaning any warranty parts requests are processed quickly and easily.This unit must be installed by a qualified licensed HVAC technician.
- Number of Zones:
- Maximum Number of Indoor Units:
- EER (Non-Ducted / Ducted / Mixed Units):
- 13.5 / 12.5 / 13
- SEER (Non-Ducted / Ducted / Mixed Units):
- 22.5 / 18.5 / 20.5
- Energy Star:
- Cooling BTUs:
- Cooling BTU Output Range:
- 8400 - 21600
- Cooling Amps:
- Includes Heat Pump:
- Heat Pump BTUs:
- Heating BTU Output Range:
- 10080 - 25000
- Max. Heating Capacity @5°F (BTUs):
- Max. Heating Capacity @0°F (BTUs):
- Max. Heating Capacity @-4°F (BTUs):
- Heat Pump Heating Amps:
- HSPF (Non-Ducted / Ducted / Mixed Units):
- 11.0 / 9.6 / 10.3
- Outdoor Unit Noise Level (dBA):
- Circuit Breaker Size (Amps):
- Operating Range - Cooling:
- 14° F ~ 118° F
- Operating Range - Heating:
- -4° F ~ 64° F
- Min. Outdoor Temp for Heat °F:
- Inverter Technology:
- Pipe Length (No Addl Refr Req):
- Max. Pipe Length/Zone (ft.):
- Max. Elevation (ft.):
- Outdoor Unit Width (in.):
- Outdoor Unit Depth (in.):
- Outdoor Unit Height (in.):
- Outdoor Unit Weight (lbs.):
- AHRI Certified
- Parts Warranty:
- 10 Years
- Compressor Warranty:
- 10 Years
- Labor Warranty:
- Max. Connected Outdoor BTU Capacity:
Product WarrantyLIMITED WARRANTY:
1. STANDARD FIVE (5) YEAR WARRANTY FOR A QUALIFIED SYSTEM - The Part(s) of a qualified System, including the compressor, are warranted for a period (the “Standard Parts Warranty Period”) ending five (5) years after the date of original installation. In absence of proof of installation the warranty date will end five (5) years from the date of manufacture.
2. ADDITIONAL TWO (2) YEAR COMPRESSOR PART WARRANTY - The Compressor is warranted for an additional two (2) year period after the end of the applicable Standard Part Warranty Period (the Compressor Warranty Period”).
The Standard Warranty Period and the Compressor Warranty Period are extended to a total of ten (10) years (the “Extended Warranty Period”) for qualified Systems that have been (a) installed by a party that has completed the Training Requirements, (b) installation is pursuant to LG’s published instructions, and (c) product is registered within 60 days of startup at www.lg-dfs.com or www.lg-dfs-warranty.com.
