Get year-round comfort in all areas of your home!

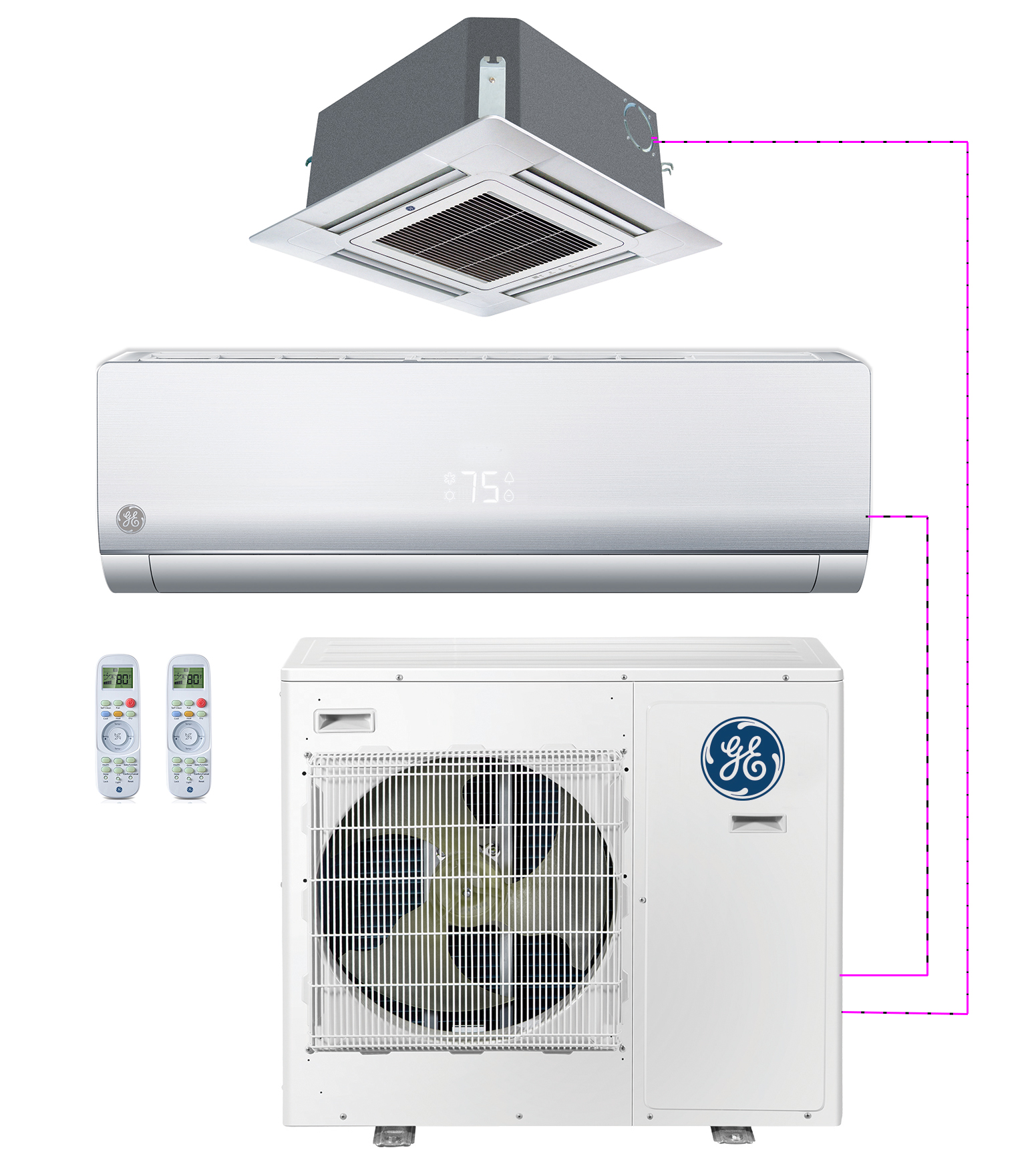

The GE ASH220NCDWA Endure Series is an 18,000 BTU mini split AC with heat pump that supports two zones. The GE ASH220NCDWA gives you the opportunity to install two indoor units in separate areas of your home. The unit offers a combined connectivity capacity of up to 24,000 BTUs. High wall mount and ceiling cassette indoor units are available options for this system. This system (with either wall and/or ceiling cassettes configurations) is Energy Star Qualified.
Not only is this system cost and energy efficient, it can provide you with year round comfort. It boasts enhanced cooling and heating ranges and can be used as a primary heat source in most of the country. It is capable of heating when outdoor temperatures are as cold as -15°F. If there is a need to keep your space cool, the cooling capabilities are great on this system as well. The system can operate in the cooling mode with outside temperatures as low as 0°F and as high as 115°F.
Each unit operates with its own remote, so there is no need to condition a room you are not using. The ASH220NCDWA can be easily installed without major renovations. Individual line sets are required for each indoor unit (sold separately), and only require a small hole for each unit. The line sets run from each indoor unit to the outdoor unit.
Standard features of the Endure Multi Zone outdoor units include a quiet, energy efficient variable speed inverter compressor, blue fin technology to ensure the condensate does not sit in the condenser, helping to prevent rust and extend its life, warm start delays the fan until the air is warm helping to prevent cool drafts. Its low ambient operation allows for the system to work in either cooling or heating across a large span of temperatures. Its cooling capacity ranges from 7,000 - 20,000 BTUs with a rated capacity of 18,100 BTUs. It can cool when the outside temperature is as low as 0°F.
The ASH220NCDWA offers a heating capacity range of 8,000 - 23,000 BTUs with a temperature range of -15°F outside up to 75°F set point inside. At 47°F, it is rated at a heating capacity of 20,000 BTUs. At 5°F, you can achieve a max. capacity of 23,000 BTUs and at -15°F, it is rated at max. heating capacity of 17,000 BTUs. To top it all off, it uses environmentally friendly R-410A refrigerant and offers a maximum line length of 82 feet per unit with a 50 ft height differential between the indoor and outdoor units.
GE offers ultimate flexibility and configurability in your selection of the two indoor units required for this system. All indoor units offer a variety of fan speed options and auto restart operation. The outdoor unit has two 1/4" x 3/8" connection ports for line sets. Line sets are purchased separately, based on the indoor unit requirements. You can use the dropdown boxes above to customize your system. Need help deciding? Contact us for expert advice.
Indoor Unit Options
Standard Wall Unit (ASYW07URDWA, ASYW09URDWA, ASYW12URDWA) - The standard wall unit comes in a white finish and will blend quietly and seamlessly into any room decor. It is installed high on a wall. The high wall unit features an illuminated temperature and mode display on the front face of the wall unit. It connects to the outdoor compressor through a small opening in your wall, drilled behind the unit. The line set and wire (required, sold separately) are sent through the opening and connect to the compressor outside. A wireless handheld remote is included for convenient operation from anywhere in the room. These units have the option of adding a WiFi module for control from anywhere! Available in 7,000, 9,000, and 12,000 BTUs for use with the 2 zone ASH220NCDWA.
Ceiling Cassette Unit (AB09SC2VHA, AB12SC2VHA) - A ceiling cassette installs into the ceiling and offers 4-way airflow into your space. A grille is required on a ceiling unit (PB-700IB grille included) and air is dispersed from all 4 sides of the grille. A ceiling cassette can be installed in the center of a room, allowing airflow all around. A built-in condensate drain with 47" lift is included with this unit as well as a wireless remote control. Available in 9,000, and 12,000 BTUs for use with the 2 zone ASH220NCDWA.
Mini Split Line Sets - Line sets are a requirement when installing a mini split system. They are the connection between the outdoor unit and the indoor units of your system. Every indoor unit needs to be connected directly to the outdoor unit with its own line set. Most Mini Split Line Sets come with flared connectors attached and are ready to install. Our line sets are offered with and without control wire and are available in various connection sizes and lengths to meet your installation needs. The line set shown in the photo does not include the control wire.
Why Total Home Supply?
We are a GE Authorized Online Distributor. Our staff of heating and cooling experts are standing by to help you. Whether you have pre-sales questions or you need support after your order, we are here for you.This unit must be installed by a qualified licensed HVAC technician.
- Number of Zones:
- Maximum Number of Indoor Units:
- SEER (non-ducted indoor units):
- SEER (ducted indoor units):
- Energy Star:
- Cooling BTUs:
- Includes Heat Pump:
- Heat Pump BTUs:
- HSPF (non-ducted):
- Outdoor Unit Noise Level (dBA):
- Circuit Breaker Size (Amps):
- Operating Range - Cooling:
- 0°F - 115°F
- Operating Range - Heating:
- -15°F - 75°F
- Min. Outdoor Temp for Heat °F:
- Inverter Technology:
- Pipe Length (No Addl Refr Req):
- Max. Pipe Length/Zone (ft.):
- Outdoor Unit Width (in.):
- Outdoor Unit Depth (in.):
- Outdoor Unit Height (in.):
- Outdoor Unit Weight (lbs.):
- AHRI Certified
- Parts Warranty:
- 5 Years
- Compressor Warranty:
- 7 Years
- Labor Warranty:
- Max. Connected Outdoor BTU Capacity:
- Parts: 5 Years Limited Parts Warranty if unit is not registered / 10 Years Limited Warranty if unit is properly registered within 60 days of installation.
- Compressor: 7 Years Limited Warranty if unit is not registered / 10 Years Limited Warranty if unit is properly registered within 60 days of installation.
- Labor: None
This unit must be installed by a qualified licensed HVAC technician. The warranty for this unit is for parts only, and does not cover labor or diagnostic services. Total Home Supply will handle all warranty parts requests for any mini split purchased from us, but installation and all troubleshooting for this unit must be performed by a licensed HVAC technician. Any fees the technician may charge are not reimbursable by the manufacturer or by Total Home Supply. Please call 877-847-0050 for more details or with any questions you may have regarding warranty information and installation of this unit.
