Williams Furnace Company Kitchen Tech Pro Unheated Air Curtain, 115/1/60

Williams Furnace Williams Furnace
Availability: Usually Leaves Warehouse in 2 - 3 Business Days
Price: $679.00 Price: $1,259.00

Not Purchasable: Not done configuring

Loading Bread...
Free Shipping on all Orders!
  • Description

    Air doors are an ideal solution to commercial or industrial business entrances. They also work well in cold-storage rooms, patios and schools. In a cold-storage or heated warehouse, an unheated air door will allow a continuous flow of air to blow down in your entry way, eliminating the loss of heat or refrigeration due to an open door.

    The Williams Kitchen Tech Pro Unheated Air Curtains are NSF certified up to 7 ft. for maximum safety. They are the perfect solution for use in kitchens and food prep areas. In non-NSF required applications, the Kitchen Tech Pro line can be installed with a maximum mounting height of 10-ft. They available for use with 115 Volt, single phase electrical. Additionally, Kitchen Tech Pro Air Curtains are available in Jet Black or Soft White to blend with your installation requirements. Kitchen Tech Pro line is aesthetically pleasing and is ideal for use in customer facing installations.

    The Kitchen Tech Pro Series Air Curtains provide a sleek, quiet, consumer-friendly design for windows and doors and can be installed on the interior and used between either interior or exterior spaces. The profile of the Kitchen Tech Pro Line relatively low profile:
    • NSF Certified up to 7' - great for pass-thru windows
    • Insect and contaminant control to 10'
    • Environmental separation for up to 10' in NON-NSF installations
    • Sanitation barrier against airborne contaminants
    • Adjustable Aluminum vanes for efficient air-flow
    • Aluminum blower wheels with galvanized housings
    • 1/2 hp motor (36 - 48 inch units have 1 motor; 64 and 72 inch units have 2 motors)
    • Simple installation - Direct Wall Mount or Threaded Rod Installation
    • Low maintenance and installation cost
    • Meet requirements of National Electric Code and are ETL certified to UL Standard 1995

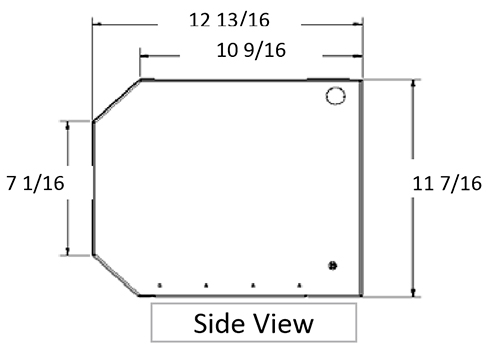

    Model Dimensions (LxWxH) Color Full Load Amps Volume Weight
    115 Volt

    36" x 12.8" x 11.4" Black / White
    6.4 amps 2500 CFM 69 lbs
    42" x 12.8" x 11.4"
    Black / White
    6.4 amps 2900 CFM 75 lbs
    48" x 12.8" x 11.4"
    Black / White
    6.4 amps 3925 CFM 79 lbs
    64" x 12.8" x 11.4"
    Black / White
    12.8 amps 4375 CFM 117 lbs
    72" x 12.8" x 11.4"
    Black / White
    12.8 amps 5300 CFM 132 lbs

    Units greater than 6' (72") are available. Please contact us for availability and pricing.
  • Tech Specs

    Max. Door/Window Height (ft.)
    Max. Height Insect Block (ft.)
    Nozzle Width (in.)
    2.5 "
    Depth (in.)
    12.813 "
    Height (in.)
    11.434 "
    NSF Certified to 7FT., ETL
    Parts Warranty
    5 Years
    Labor Warranty
  • Manuals and Guides
