Daikin 3MXS24NMVJU 24000 BTU Class Configurable Tri-Zone Heat and Cool Split System

Usually Leaves Warehouse in 1 - 3 Business Days
Sku:
DAIKIN-3MXS24NMVJU
Base Price shown is for outdoor unit only. You can choose up to 3 indoor units below with a total connected capacity of 39,000 BTUs. The price displayed will update based on your selections. If you need help configuring a system, please contact us.

Get a total comfort solution for your entire home or business!

The Daikin MXS Series of outdoor compressors offer a heating operation range of 5°F (with optional drain pan heater) up to 60°F and a cooling range from 14°F to 114°F. The MXS Multi-Zone Series also includes an enhanced drain pan. The new drain pan offers excellent drainage to reduce ice build-up in extreme conditions.

A multi-zone mini split system is an excellent way to add air conditioning to more than one area of your home or office without running ducts everywhere. Each indoor unit operates independently so you can cool one room to 68°F, for example while another space may be set to 74°F. Whether you have just added an additional room or don't have central air, with the 3MXS24NMVJU Multi Zone Mini Split System you simply choose two or three indoor units based on your individual needs and before you know it, you will have cooling and heating in your space when and where you want it.

The MXS multi-zone system, with inverter technology, works with several combinations of indoor unit styles and BTUs. Available BTUs range from 7,000 up to 18,000 BTUs depending on the unit type. Indoor units include the CTXS and FTXS Standard Wall units, the Emura Series Wall units CTXG, the Vista Series FFQ Ceiling Cassette units, FDXS Concealed Duct units, and FVXS Floor units. Contingent upon the indoor units you choose, the 3MXS24NMVJU outdoor unit will be able to achieve energy efficiency levels of up to 18.9 SEER, up to 12.7 EER, and up to 12.5 HSPF. Total comfort control with added savings!

With Daikin's Tri-Zone solution, any three rooms can be controlled individually. The 3MXS24NMVJU Tri-Zone is rated for 24,000 BTU Cooling Capacity and must be connected to a minimum of two indoor units. A third unit does not have to be added right away - it can always be added at a later date. The combined BTU ratings of the units chosen can total up to a maximum connected BTU rating of 39,000 BTUs.

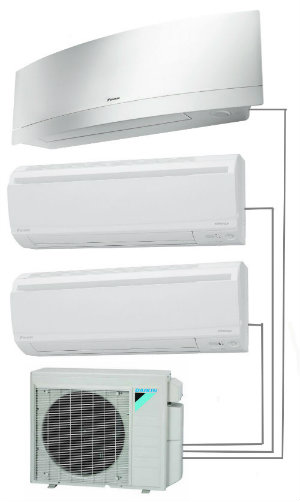

Daikin 3 Zone System

With the technology that allows for higher connectivity, the Daikin 3MXS24NMVJU gives you the opportunity to connect three units with cooling capacities totaling 39,000 BTUs. This higher connectivity capacity gives the consumer more leeway with regard to the indoor unit options. It allows you to address higher load requirements which may be needed in different types of spaces such as living and sleeping spaces. Based on the square footage of the rooms you are conditioning, you may need two 15,000 BTU units and a 9,000 BTU unit. With the 3MXS24NMVJU outdoor unit, connecting these three units won't be a problem. The system will adjust and allocate the required BTUs needed in each area up to the total of 24,000 BTUs. Let's say you need to condition the two rooms with the 15,000 BTU units installed. The system will split the BTUs evenly between the two units allocating 12,000 BTUs to each room. After a while, you may need to turn on the 9,000 BTU unit on. The larger rooms will drop down to about 9,600 BTUs each and the remaining 4,800 BTUs will be used in the third room. If one zone needs more or is shut off, the system will adjust accordingly.

The 3MXS24NMVJU "variable speed" compressor with inverter technology features a space-saving design and quiet operation. Daikin's outdoor compressor allows the indoor units to operate with Reactive Temperature Monitoring. This technology allows you to set your room temperatures while the system will automatically adjusts the output required to reach your desired temperature levels. It uses R410A refrigerant, the industry standard. It also includes anti-corrosion treatment of the outdoor Heat Exchanger Fin.

Daikin offers great variety and configurability in your selection of the three indoor units for this system. All indoor units offer a variety of fan speed options and auto restart operation. You can use the drop-down boxes above to customize your system. If you need help deciding or have any configuration questions, our sales staff would be happy to help you. Contact us for expert advice.

Indoor Unit Options

Daikin Standard Indoor Wall Unit

Indoor Wall Units (CTXS07LVJU, FTXS09LVJU, FTXS12LVJU, FTXS15LVJU, FTXS18LVJU) - Each indoor wall unit comes in a white finish and will fit flawlessly into any room decor. It can be installed on an interior or exterior wall and is connected to the outdoor compressor through a small opening in your wall, drilled behind the unit. The line set and wire (required, sold separately) are sent through the opening and connect to the compressor outside. A wireless remote is included for convenient operation from anywhere in the room. Available in 7,000, 9,000, 12,000, 15,000, and 18,000 BTUs.

Daikin Emura Wall Unit

Emura Indoor Wall Units (in White)(CTXG09QVJUW, CTXG12QVJUW, CTXG18QVJUW) - The Emura wall unit offers an updated, unique shape and will add a modern flare to any decor, while still blending quietly into any room. Like the standard wall unit, it is installed high on a wall and connects to the outdoor compressor through a small opening drilled in your wall, behind the unit. The line set and wire (required, sold separately) connect to the compressor outside through this opening. A wireless remote is included for convenient operation anywhere in the room. Available in 9,000, 12,000 and 18,000 BTUs.

Vista Ceiling Cassette Units

Vista Ceiling Cassette Units (FFQ09Q2VJU, FFQ12Q2VJU, FFQ15Q2VJU, FFQ18Q2VJU) - The Vista Ceiling Cassette is a beautiful addition to the Daikin Line. The 2' X 2' Decorative Cover is included (BYFQ60C2WIW). It can be installed In a regular ceiling or a drop ceiling. In a drop ceiling, it will only occupy a single ceiling tile. Installation flexibility gives you the option of two, three or four way airflow. From the ceiling, it connects to the outdoor compressor through a small opening drilled in your wall. The line set and wire are required and sold separately. Additionally, no remote is included with this item but a wall mounted thermostat (BRC1E73) as well as an infrared remote (BRC082A42W) are available. 9,000, 12,000, 15,000 or 18,000 BTUs units are available.

Slim Duct Unit

Slim Duct Units (FDXS09LVJU, FDXS12LVJU, CDXS15LVJU, CDXS18LVJU) - Slim Duct Ceiling units are installed in a ceiling and hidden from view. The Daikin Slim Units are less than 8" high and require ducting as well as registers. The placement of the registers allows the conditioned air to be dispersed into the space where you need it. Depending on the size and shape of your space, a concealed unit can be ducted for multiple rooms or one single room. As an example, a 12,000 BTU unit will provide comfort control up to about 400 - 550 sq. ft. A wireless remote is included with each unit. 9,000, 12,000, 15,000, and 18,000 BTU units are available.

Floor Standing Unit

Floor Standing Units (FVXS09NVJU, FVXS12NVJU, FVXS15NVJU, FVXS18NVJU) - A floor standing unit is a great option for a built in solution that provides heat at the floor level. It installs flush or recessed on the wall and is perfect for spaces that lack upper wall space. The unit itself measures about 27.5"W x 23.6"H x 8.25"D and is available in 9,000, 12,000, 15,000 and 18,000 BTUs.


Line Sets

Example of Line Set without wire

Mini Split Line Sets - Line sets are a requirement when installing a mini split system. They are the connection between the outdoor unit and the indoor units of your system. Every indoor unit needs to be connected directly to the outdoor unit with its own line set. Most Mini Split Line Sets come with flared connectors attached and are ready to install. Our line sets are offered with and without control wire and are available in various connection sizes and lengths to meet your installation needs. The line set shown in the photo does not include the control wire.


Daikin 3 Zone Layout

The 3MXS24NMVJU can be used with 2 or 3 indoor units. Above, is an example of a three zone layout in a multi-family dwelling.



Why Total Home Supply?

We are an Authorized Online Distributor for Daikin. Whether you have pre-sales questions or you need support after your order, we are here for you.

This unit must be installed by a qualified licensed HVAC technician.



Looking for a qualified installer? Allow Preferred Contractor to help. Preferred Contractor has a nationwide network of trained mini split installers. Click here to fill out the form and get started. An HVAC expert will contact you to learn about your needs and get a quote for you whether you have already purchased the equipment or are just starting to research.

$1,999.00
Daikin 3MXS24NMVJU 24000 BTU Class Tri-Zone Heat and Cool Split System
Customer Reviews
FREE SHIPPING ON ALL ORDERS!
Base Price shown is for outdoor unit only. You can choose up to 3 indoor units below with a total connected capacity of 39,000 BTUs. The price displayed will update based on your selections. If you need help configuring a system, please contact us.

Get a total comfort solution for your entire home or business!

The Daikin MXS Series of outdoor compressors offer a heating operation range of 5°F (with optional drain pan heater) up to 60°F and a cooling range from 14°F to 114°F. The MXS Multi-Zone Series also includes an enhanced drain pan. The new drain pan offers excellent drainage to reduce ice build-up in extreme conditions.

A multi-zone mini split system is an excellent way to add air conditioning to more than one area of your home or office without running ducts everywhere. Each indoor unit operates independently so you can cool one room to 68°F, for example while another space may be set to 74°F. Whether you have just added an additional room or don't have central air, with the 3MXS24NMVJU Multi Zone Mini Split System you simply choose two or three indoor units based on your individual needs and before you know it, you will have cooling and heating in your space when and where you want it.

The MXS multi-zone system, with inverter technology, works with several combinations of indoor unit styles and BTUs. Available BTUs range from 7,000 up to 18,000 BTUs depending on the unit type. Indoor units include the CTXS and FTXS Standard Wall units, the Emura Series Wall units CTXG, the Vista Series FFQ Ceiling Cassette units, FDXS Concealed Duct units, and FVXS Floor units. Contingent upon the indoor units you choose, the 3MXS24NMVJU outdoor unit will be able to achieve energy efficiency levels of up to 18.9 SEER, up to 12.7 EER, and up to 12.5 HSPF. Total comfort control with added savings!

With Daikin's Tri-Zone solution, any three rooms can be controlled individually. The 3MXS24NMVJU Tri-Zone is rated for 24,000 BTU Cooling Capacity and must be connected to a minimum of two indoor units. A third unit does not have to be added right away - it can always be added at a later date. The combined BTU ratings of the units chosen can total up to a maximum connected BTU rating of 39,000 BTUs.

Daikin 3 Zone System

With the technology that allows for higher connectivity, the Daikin 3MXS24NMVJU gives you the opportunity to connect three units with cooling capacities totaling 39,000 BTUs. This higher connectivity capacity gives the consumer more leeway with regard to the indoor unit options. It allows you to address higher load requirements which may be needed in different types of spaces such as living and sleeping spaces. Based on the square footage of the rooms you are conditioning, you may need two 15,000 BTU units and a 9,000 BTU unit. With the 3MXS24NMVJU outdoor unit, connecting these three units won't be a problem. The system will adjust and allocate the required BTUs needed in each area up to the total of 24,000 BTUs. Let's say you need to condition the two rooms with the 15,000 BTU units installed. The system will split the BTUs evenly between the two units allocating 12,000 BTUs to each room. After a while, you may need to turn on the 9,000 BTU unit on. The larger rooms will drop down to about 9,600 BTUs each and the remaining 4,800 BTUs will be used in the third room. If one zone needs more or is shut off, the system will adjust accordingly.

The 3MXS24NMVJU "variable speed" compressor with inverter technology features a space-saving design and quiet operation. Daikin's outdoor compressor allows the indoor units to operate with Reactive Temperature Monitoring. This technology allows you to set your room temperatures while the system will automatically adjusts the output required to reach your desired temperature levels. It uses R410A refrigerant, the industry standard. It also includes anti-corrosion treatment of the outdoor Heat Exchanger Fin.

Daikin offers great variety and configurability in your selection of the three indoor units for this system. All indoor units offer a variety of fan speed options and auto restart operation. You can use the drop-down boxes above to customize your system. If you need help deciding or have any configuration questions, our sales staff would be happy to help you. Contact us for expert advice.

Indoor Unit Options

Daikin Standard Indoor Wall Unit

Indoor Wall Units (CTXS07LVJU, FTXS09LVJU, FTXS12LVJU, FTXS15LVJU, FTXS18LVJU) - Each indoor wall unit comes in a white finish and will fit flawlessly into any room decor. It can be installed on an interior or exterior wall and is connected to the outdoor compressor through a small opening in your wall, drilled behind the unit. The line set and wire (required, sold separately) are sent through the opening and connect to the compressor outside. A wireless remote is included for convenient operation from anywhere in the room. Available in 7,000, 9,000, 12,000, 15,000, and 18,000 BTUs.

Daikin Emura Wall Unit

Emura Indoor Wall Units (in White)(CTXG09QVJUW, CTXG12QVJUW, CTXG18QVJUW) - The Emura wall unit offers an updated, unique shape and will add a modern flare to any decor, while still blending quietly into any room. Like the standard wall unit, it is installed high on a wall and connects to the outdoor compressor through a small opening drilled in your wall, behind the unit. The line set and wire (required, sold separately) connect to the compressor outside through this opening. A wireless remote is included for convenient operation anywhere in the room. Available in 9,000, 12,000 and 18,000 BTUs.

Vista Ceiling Cassette Units

Vista Ceiling Cassette Units (FFQ09Q2VJU, FFQ12Q2VJU, FFQ15Q2VJU, FFQ18Q2VJU) - The Vista Ceiling Cassette is a beautiful addition to the Daikin Line. The 2' X 2' Decorative Cover is included (BYFQ60C2WIW). It can be installed In a regular ceiling or a drop ceiling. In a drop ceiling, it will only occupy a single ceiling tile. Installation flexibility gives you the option of two, three or four way airflow. From the ceiling, it connects to the outdoor compressor through a small opening drilled in your wall. The line set and wire are required and sold separately. Additionally, no remote is included with this item but a wall mounted thermostat (BRC1E73) as well as an infrared remote (BRC082A42W) are available. 9,000, 12,000, 15,000 or 18,000 BTUs units are available.

Slim Duct Unit

Slim Duct Units (FDXS09LVJU, FDXS12LVJU, CDXS15LVJU, CDXS18LVJU) - Slim Duct Ceiling units are installed in a ceiling and hidden from view. The Daikin Slim Units are less than 8" high and require ducting as well as registers. The placement of the registers allows the conditioned air to be dispersed into the space where you need it. Depending on the size and shape of your space, a concealed unit can be ducted for multiple rooms or one single room. As an example, a 12,000 BTU unit will provide comfort control up to about 400 - 550 sq. ft. A wireless remote is included with each unit. 9,000, 12,000, 15,000, and 18,000 BTU units are available.

Floor Standing Unit

Floor Standing Units (FVXS09NVJU, FVXS12NVJU, FVXS15NVJU, FVXS18NVJU) - A floor standing unit is a great option for a built in solution that provides heat at the floor level. It installs flush or recessed on the wall and is perfect for spaces that lack upper wall space. The unit itself measures about 27.5"W x 23.6"H x 8.25"D and is available in 9,000, 12,000, 15,000 and 18,000 BTUs.


Line Sets

Example of Line Set without wire

Mini Split Line Sets - Line sets are a requirement when installing a mini split system. They are the connection between the outdoor unit and the indoor units of your system. Every indoor unit needs to be connected directly to the outdoor unit with its own line set. Most Mini Split Line Sets come with flared connectors attached and are ready to install. Our line sets are offered with and without control wire and are available in various connection sizes and lengths to meet your installation needs. The line set shown in the photo does not include the control wire.


Daikin 3 Zone Layout

The 3MXS24NMVJU can be used with 2 or 3 indoor units. Above, is an example of a three zone layout in a multi-family dwelling.



Why Total Home Supply?

We are an Authorized Online Distributor for Daikin. Whether you have pre-sales questions or you need support after your order, we are here for you.

This unit must be installed by a qualified licensed HVAC technician.



Looking for a qualified installer? Allow Preferred Contractor to help. Preferred Contractor has a nationwide network of trained mini split installers. Click here to fill out the form and get started. An HVAC expert will contact you to learn about your needs and get a quote for you whether you have already purchased the equipment or are just starting to research.

  • Number of Zones:
    2
  • Number of Zones:
    3
  • Maximum Number of Indoor Units:
    3
  • EER:
    12.7
  • SEER (non-ducted indoor units):
    17.9
  • SEER (ducted indoor units):
    14.0
  • SEER (ducted & non ducted):
    15.95
  • Energy Star:
    Yes
  • Cooling Amps:
    18.7
  • Cooling BTUs:
    24000
  • Includes Heat Pump:
    Yes
  • Heat Pump BTUs:
    24000
  • HSPF (non-ducted):
    12.5
  • Outdoor Unit Noise Level (dBA):
    52
  • Voltage:
    208-230V
  • Circuit Breaker Size (Amps):
    20
  • Operating Range - Cooling:
    14°F - 114.8°F
  • Operating Range - Heating:
    5°F - 60°F
  • Min. Outdoor Temp for Heat °F:
    5
  • Inverter Technology:
    Yes
  • Pipe Length (No Addl Refr Req):
    131
  • Max. Pipe Length/Zone (ft.):
    82
  • Outdoor Unit Width (in.):
    35.434
  • Outdoor Unit Depth (in.):
    12.625
  • Outdoor Unit Height (in.):
    30.313
  • Outdoor Unit Weight (lbs.):
    168
  • Parts Warranty:
    12 Years
  • Compressor Warranty:
    12 Years
  • Labor Warranty:
    None
  • Max. Connected Outdoor BTU Capacity:
    39000

Warranty Information

  • Parts: 5 Years Limited Warranty if unit is not registered / 12 Years Limited Warranty if unit is properly registered online.
  • Compressor: 5 Years Limited Warranty if unit is not registered / 12 Years Limited Warranty if unit is properly registered online.
  • Labor: None

The warranty for this unit is for parts only, and does not cover labor or diagnostic services. Total Home Supply will handle all warranty parts requests for any mini split purchased from us, but installation and all troubleshooting for this unit must be performed by a licensed HVAC technician. Any fees the technician may charge are not reimbursable by the manufacturer or by Total Home Supply. Please call 877-847-0050 for more details or with any questions you may have regarding warranty information and installation of this unit.
