Friedrich SH24N20 24,000 BTU Hazardgard Series Air Conditioner

Friedrich Friedrich
Availability: Usually Leaves Warehouse in 3 - 5 Business Days
Product Code:FRIEDRICH-SH24N20
Price: $3,999.00 Sale Price: $3,589.00
WHY ADD THIS TO MY ORDER?
Qty
or
Loading Bread...
Free Shipping on all Orders!
  • Description

    Specifically designed for use in areas where flammable liquids or gasses, or other toxic chemicals or other flammable materials are being used or stored. The Friedrich Hazardgard series of air conditioners are a great option to cool these locations. It is a 50/60Hz model and it has a T4A Temperature Rating. This means it can be used in areas where the surface temperature of the unit cannot exceed 248°F (120°C).

    For more than 30 years, the Friedrich Hazardgard has endured some of the toughest and most unforgiving operating conditions imaginable. Time-tested in the field where it counts, Hazardgard is trusted by professionals who have to get the job done. Oil companies rely on Friedrich air conditioners to cool offshore oil rigs, and military bases and government offices all over the world choose Friedrich. Commercial-grade Friedrich products are trusted internationally.

    The Friedrich SH24N20 is a 50/60Hz air conditioner unit for use in large scale rooms (approximately 12000 sq. ft.) with other external considerations taken into account. In applications when using 230/208 volts / 60Hz, the cooling capacity is 24,000/23,700 BTU/Hr. And in applications when using 240/220 volts / 50 Hz, the cooling capacity is 21,000/20,500 BTU/Hr.

    Ideal applications
    • Offshore oil rigs, on-shore oil company offices and refineries
    • Petrochemical sites and propane fill-up stations
    • Paint and varnish storage or processing plants
    • Grain alcohol processors or storage sites
    • Plant areas using strong solvents or chemicals
    • Munitions plants or armories
    • PVC or plastics plants and processing points
    • Recycling plants
    • Furniture refinishing/stripping workshops
    • Fertilizer plants
    • Office complexes where methane is a by-product
    • Hazardous materials storage
    Durability features for dependable operation in the harshest environments.

    direct wired connection
    Direct wire connection: Utilizes direct-wired, 15-amp circuit with time-delay fuse that will tolerate surge current without tripping the breaker.

    hermetically sealed compressor
    Hermetically sealed reciprocating compressor: The compressor motor is cooled during the refrigeration cycle, which allows the unit to tolerate higher outdoor temperatures.

    heavy 20 gauge steel
    Heavy gauge steel: 20 gauge steel is used in order to create a more robust air conditioner cabinet that will withstand years of hard use.

    enclosed fan motor
    Enclosed fan motor: Larger, commercial grade fan motor with hermetically sealed overload for arc-free operation. Totally enclosed to assure efficient operation under adverse electrical conditions.
    • Permanent split capacitor
    • Hermetically sealed refrigeration system
    • Environmentally sealed on/off switch and gold plated contacts in thermostat for corrosion resistance.
    • Solid-state control relays for compressor and fan operation.
    • Hot gas bypass allows the air conditioner to operate at low ambient conditions without freezing at outdoor ambient temperatures as low as 45° F / 7°C.
    diamond blue technology
    Diamonblue Technology: Anti-corrosive treatment provides added endurance and protection in coastal or corrosive environments.

    Hazardgard also meets the U.S. National Electric Code, Article 500 requirements for Class 1, Division 2, Groups A, B, C and D Hazardous locations.
  • Tech Specs

    Cooling BTUs
    24000
    EER
    8.8
    Cooling Amps
    12.6
    Cooling Watts
    2727
    Dehumidification (pts/hr)
    8.0
    Includes Heat Mode
    No
    CFMs
    385
    Energy Star
    No
    Voltage
    208-230V
    Plug Face (NEMA)
    Option to Hardwire
    Circuit Breaker Size (Amps)
    30
    Vent Location
    Top Front
    Room Size Coverage
    Extra Large 800+ Sq. Ft.
    Chassis Type
    Slide-Out (Window/Wall)
    Energy Saver Mode
    No
    Control Type
    Rotary
    24 Hour ON/OFF Timer
    No
    Remote Control
    No
    Fresh Air Intake
    No
    Window Mounting Kit Included
    No
    Sleep Mode
    No
    Window Type
    Standard
    Overall Width (in.)
    25.934 "
    Overall Depth (in.)
    27.375 "
    Overall Height (in.)
    17.938 "
    Window Width (Min.)(in.)
    27.875 "
    Window Width (Max.)(in.)
    42 "
    Net Weight (lbs.)
    180
    Parts Warranty
    1 Year
    Labor Warranty
    1 Year
    Compressor Warranty
    1 Year
  • Manuals and Guides

  • More Info

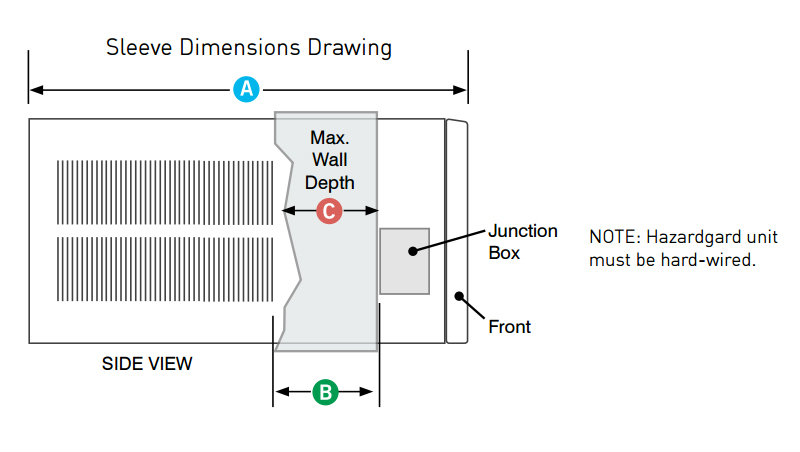

    • Height: 15 15/16"
    • Width: 25 15/16"
    • Overall Depth (A): 27 3/8"
    • Depth J Box to Louvers: (B): 6"
    • Minimum Extension into Room: 3 1/16"
    • Minimum Extension Outside: 27 7/8"
    • Window Width Minimum - Maximum: 27 7/8 - 42"
    • Thru-The_Wall Finished Hole Height: 16 3/16"
    • Thru-The_Wall Finished Hole Width: 26 3/16"
    • Thru-The_Wall Finished Hole Maximum Depth (C): 6"
    • Circuit Rating Breaker or T-D Fuse: 250 Volt - 15 Amp
    dimensions
