Panasonic CU-4E24RBU-5 24,000 BTU, 2 Ton Configurable Quad-Zone Mini Split - Energy Star

Usually Leaves Warehouse in 3 - 5 Business Days
Sku:
PANASONIC-CU4E24RBU5
Base Price shown is for outdoor unit only. You can choose up to 4 indoor units below with a total connected capacity of 46,400 BTUs (minimum 15,360 BTUs). The price displayed will update based on your selections. If you need help configuring a system, please contact us.

Panasonic 4-Zone Mini Split now has heating capabilities down to -5°F, making it a great option for much of the US.

Panasonic's 4 Zone Mini Split System offers you the advantage of a single system that is connectable for up to 4 indoor units. That is from 2 up to 4 individual temperature controlled rooms without duct work! Panasonic's innovative technology enables high energy saving performance with SEER ratings of 22 and an HSPF rating of 9.5 - for more efficient operation than ever before. Because each room operates independently, you can customize your BTUs for each space. Panasonic offers Indoor units ranging from 5500 BTUs for smaller rooms, up to 18,000 BTUs for larger rooms. When the CU-4E24RBU-5 is installed with non-ducted indoor units, it is an Energy Star Qualified system!

With the Panasonic System 4 Multi-Zone, long piping length flexibility is also featured. The maximum total length is 230 feet with a maximum length of 82 feet for a single indoor unit The maximum height difference is 49 feet. With the flexibility of long piping lengths, this system can be installed in virtually any building design.

Of course the system also includes Panasonic's inverter technology - providing superb comfort, precise control and extremely efficient operation by constantly adjusting the power supply frequency. The result is speedy, flexible operation that uses less electricity. The inverter constantly adjusts the compressor rotation speed to provide optimum performance at all times. Once the set temperature is achieved, the inverter air conditioner continues to operate with minimum power. Switching from the cooling mode to the heating mode is done easily with the simple push of a button on the remote!

And talk about reliability, with its low ambient heating capability, you will never be cold - heating is possible even if the temperature outside falls as low as -5°F.

The CU-4E24RBU-5 Quad-Zone is rated for 24,000 BTU Cooling Capacity and must be connected to at least two / maximum four indoor units. The combined BTU ratings of the units chosen can total up to a maximum connected BTU rating of 30,600 BTUs.

Panasonic 4 Zone System

Indoor Unit Options

Panasonic Standard Indoor Wall Unit

Standard Wall Unit (CS-ME5RKUACS-ME7RKUA, CS-E9RKUAW, CS-E12RKUAW, CS-E18RKUAW, CS-E24RKUAW) - all feature ECONAVI Technology, Whisper Quiet operation, 24hr timer, night setback, automatic louvers and include a hand held remote. A wired wall controller, CZ-RD516C-1, (sold separately) is also available. The standard wall units are available in 5,500, 6,900, 9,000, 11,500, 17,200 and 24,000 BTUs for this outdoor unit.

Ceiling Cassette Unit

Ceiling Cassette Unit (CS-ME9SB4U, CS-E12RB4UW, CS-E18RB4UW) - all include the decorative Grille and the units all feature ECONAVI Technology as well as five fan speeds, night set back, fresh air intake, quiet mode and a wireless remote with easy to read LCD display. A wired wall controller, CZ-RD52CU, (sold separately) is also available. The ceiling cassette units are available in 8,600, 10,900, and 17,100 BTUs for this outdoor unit.

Ducted Ceiling Unit

Ducted Ceiling Unit (CS-ME5SD3UA, CS-ME7SD3UA, CS-E9SD3UAW, CS-E12SD3UAW, CS-E18SD3UAW) - are the newest type of indoor units to be included in the Panasonic line-up. These low profile units can be installed in the ceiling or in the floor and are hidden from view. These units also feature 5 fan speeds, 24 hour timer and dry mode as well as a wireless remote. A wired wall controller, CZ-RD52DU, (sold separately) is also available. The ducted ceiling units are available in 5,500, 6,900, 9,000, 11,500, and 17,200 BTUs for this system.


Line Sets

Example of Line Set without wire

Mini Split Line Sets - Line sets are a requirement when installing a mini split system. They are the connection between the outdoor unit and the indoor units of your system. Every indoor unit needs to be connected directly to the outdoor unit with its own line set. Most Mini Split Line Sets come with flared connectors attached and are ready to install. Our line sets are offered with and without control wire and are available in various connection sizes and lengths to meet your installation needs. The line set shown in the photo does not include the control wire.

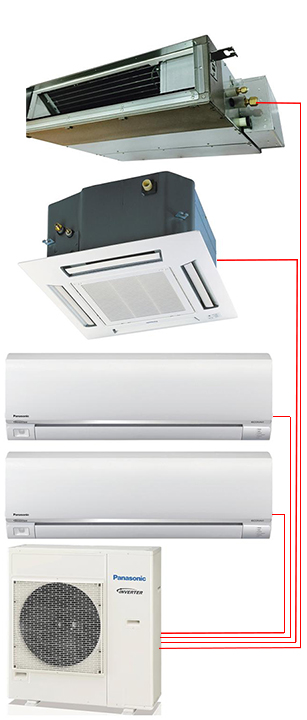

4 Zone Installation
Above is an example of a 4-zone installation

At least two indoor units MUST be connected to the CU-4E24RBU-5 compressor. Nominal Capacity range of connectable indoor units must be from 15,360 BTUs ~ 46,400 BTUs. Please note that a 2 unit configuration CANNOT include a combination of two CS-ME7RKUA units or less as this would be less than the minimum of 15,360 BTUs of connected capacity. Please double check your configurations before placing your order. Feel free to call Customer Service at 877-847-0050 for ANY questions regarding the purchase of this unit.

This unit must be installed by a qualified licensed HVAC technician. Manufacturer covers parts only under warranty. Installer is responsible for labor warranty.

Item replaces CU-4E24RBU.

Looking for a qualified installer? Allow Preferred Contractor to help. Preferred Contractor has a nationwide network of trained mini split installers. Click here to fill out the form and get started. An HVAC expert will contact you to learn about your needs and get a quote for you whether you have already purchased the equipment or are just starting to research.

$1,619.00
Panasonic CU-4E24RBU-5 24,000 BTU, 2 Ton Configurable Quad-Zone Mini Split - Energy Star
Customer Reviews
FREE SHIPPING ON ALL ORDERS!
Base Price shown is for outdoor unit only. You can choose up to 4 indoor units below with a total connected capacity of 46,400 BTUs (minimum 15,360 BTUs). The price displayed will update based on your selections. If you need help configuring a system, please contact us.

Panasonic 4-Zone Mini Split now has heating capabilities down to -5°F, making it a great option for much of the US.

Panasonic's 4 Zone Mini Split System offers you the advantage of a single system that is connectable for up to 4 indoor units. That is from 2 up to 4 individual temperature controlled rooms without duct work! Panasonic's innovative technology enables high energy saving performance with SEER ratings of 22 and an HSPF rating of 9.5 - for more efficient operation than ever before. Because each room operates independently, you can customize your BTUs for each space. Panasonic offers Indoor units ranging from 5500 BTUs for smaller rooms, up to 18,000 BTUs for larger rooms. When the CU-4E24RBU-5 is installed with non-ducted indoor units, it is an Energy Star Qualified system!

With the Panasonic System 4 Multi-Zone, long piping length flexibility is also featured. The maximum total length is 230 feet with a maximum length of 82 feet for a single indoor unit The maximum height difference is 49 feet. With the flexibility of long piping lengths, this system can be installed in virtually any building design.

Of course the system also includes Panasonic's inverter technology - providing superb comfort, precise control and extremely efficient operation by constantly adjusting the power supply frequency. The result is speedy, flexible operation that uses less electricity. The inverter constantly adjusts the compressor rotation speed to provide optimum performance at all times. Once the set temperature is achieved, the inverter air conditioner continues to operate with minimum power. Switching from the cooling mode to the heating mode is done easily with the simple push of a button on the remote!

And talk about reliability, with its low ambient heating capability, you will never be cold - heating is possible even if the temperature outside falls as low as -5°F.

The CU-4E24RBU-5 Quad-Zone is rated for 24,000 BTU Cooling Capacity and must be connected to at least two / maximum four indoor units. The combined BTU ratings of the units chosen can total up to a maximum connected BTU rating of 30,600 BTUs.

Panasonic 4 Zone System

Indoor Unit Options

Panasonic Standard Indoor Wall Unit

Standard Wall Unit (CS-ME5RKUACS-ME7RKUA, CS-E9RKUAW, CS-E12RKUAW, CS-E18RKUAW, CS-E24RKUAW) - all feature ECONAVI Technology, Whisper Quiet operation, 24hr timer, night setback, automatic louvers and include a hand held remote. A wired wall controller, CZ-RD516C-1, (sold separately) is also available. The standard wall units are available in 5,500, 6,900, 9,000, 11,500, 17,200 and 24,000 BTUs for this outdoor unit.

Ceiling Cassette Unit

Ceiling Cassette Unit (CS-ME9SB4U, CS-E12RB4UW, CS-E18RB4UW) - all include the decorative Grille and the units all feature ECONAVI Technology as well as five fan speeds, night set back, fresh air intake, quiet mode and a wireless remote with easy to read LCD display. A wired wall controller, CZ-RD52CU, (sold separately) is also available. The ceiling cassette units are available in 8,600, 10,900, and 17,100 BTUs for this outdoor unit.

Ducted Ceiling Unit

Ducted Ceiling Unit (CS-ME5SD3UA, CS-ME7SD3UA, CS-E9SD3UAW, CS-E12SD3UAW, CS-E18SD3UAW) - are the newest type of indoor units to be included in the Panasonic line-up. These low profile units can be installed in the ceiling or in the floor and are hidden from view. These units also feature 5 fan speeds, 24 hour timer and dry mode as well as a wireless remote. A wired wall controller, CZ-RD52DU, (sold separately) is also available. The ducted ceiling units are available in 5,500, 6,900, 9,000, 11,500, and 17,200 BTUs for this system.


Line Sets

Example of Line Set without wire

Mini Split Line Sets - Line sets are a requirement when installing a mini split system. They are the connection between the outdoor unit and the indoor units of your system. Every indoor unit needs to be connected directly to the outdoor unit with its own line set. Most Mini Split Line Sets come with flared connectors attached and are ready to install. Our line sets are offered with and without control wire and are available in various connection sizes and lengths to meet your installation needs. The line set shown in the photo does not include the control wire.


4 Zone Installation
Above is an example of a 4-zone installation

At least two indoor units MUST be connected to the CU-4E24RBU-5 compressor. Nominal Capacity range of connectable indoor units must be from 15,360 BTUs ~ 46,400 BTUs. Please note that a 2 unit configuration CANNOT include a combination of two CS-ME7RKUA units or less as this would be less than the minimum of 15,360 BTUs of connected capacity. Please double check your configurations before placing your order. Feel free to call Customer Service at 877-847-0050 for ANY questions regarding the purchase of this unit.

This unit must be installed by a qualified licensed HVAC technician. Manufacturer covers parts only under warranty. Installer is responsible for labor warranty.

Item replaces CU-4E24RBU.

Looking for a qualified installer? Allow Preferred Contractor to help. Preferred Contractor has a nationwide network of trained mini split installers. Click here to fill out the form and get started. An HVAC expert will contact you to learn about your needs and get a quote for you whether you have already purchased the equipment or are just starting to research.

  • Number of Zones:
    2
  • Number of Zones:
    3
  • Number of Zones:
    4
  • Maximum Number of Indoor Units:
    4
  • EER:
    12.55
  • SEER (non-ducted indoor units):
    22
  • SEER (ducted indoor units):
    19.0
  • Energy Star:
    Yes
  • Cooling Amps:
    9.9 / 8.9
  • Includes Heat Pump:
    Yes
  • Cooling BTUs:
    24000
  • Heat Pump BTUs:
    37800
  • Heat Pump Heating Amps:
    15.3 / 13.9
  • HSPF (non-ducted):
    9.5
  • Outdoor Unit Noise Level (dBA):
    52
  • Voltage:
    208-230V
  • Circuit Breaker Size (Amps):
    45
  • Operating Range - Cooling:
    14°F - 114°F
  • Operating Range - Heating:
    -5°F - 75°F
  • Min. Outdoor Temp for Heat °F:
    -5
  • Inverter Technology:
    Yes
  • Pipe Length (No Addl Refr Req):
    147.6
  • Max. Pipe Length/Zone (ft.):
    82 ft per unit (229 Total)
  • Outdoor Unit Width (in.):
    37.031
  • Outdoor Unit Depth (in.):
    13.406
  • Outdoor Unit Height (in.):
    39.344
  • Outdoor Unit Weight (lbs.):
    183
  • Parts Warranty:
    5 Years
  • Compressor Warranty:
    7 Years
  • Labor Warranty:
    None
  • Max. Connected Outdoor BTU Capacity:
    46400

Warranty Information

  • Parts: 5 Years
  • Compressor: 7 Years
  • Labor: None

The warranty for this unit is for parts only, and does not cover labor or diagnostic services. Total Home Supply will handle all warranty parts requests for any mini split purchased from us, but installation and all troubleshooting for this unit must be performed by a licensed HVAC technician. Any fees the technician may charge are not reimbursable by the manufacturer or by Total Home Supply. Please call 877-847-0050 for more details or with any questions you may have regarding warranty information and installation of this unit.
