Panasonic CU-2E18SBU-5 16,700 BTU, 1.5 Ton Configurable Dual-Zone Multi-Zone Mini Split - Energy Star

Usually Leaves Warehouse in 3 - 5 Business Days
Sku:
PANASONIC-CU2E18SBU5
Base Price shown is for outdoor unit only. You can choose 2 indoor units below with a total connected capacity of 21,830 BTUs (minimum 11,000 BTUs). The price displayed will update based on your selections. If you need help configuring a system, please contact us.

Now with heating capabilities down to -5°F, Panasonic Mini-Splits are a great option for much of the US.

Panasonic's Dual Zone Mini Split System offers you the advantage of a single system that is connectable for 2 indoor units. That is 2 individually temperature controlled rooms without duct work! Panasonic's innovative technology enables high energy saving performance with a SEER rating of 19 and an HSPF rating of 9.5  - for more efficient operation than ever before. Because each room operates independently, you can customize your BTUs for each space.  For the CU-2E18SBU-5, Panasonic offers indoor units ranging from 5,500 BTUs for smaller rooms, up to 12,000 BTUs for larger rooms. Connectivity capacities of this unit is a minimum of 11,000 BTUs  with a maximum of 21,830 BTUs. This system is Energy Star Qualified when installed with both non-ducted  and ducted indoor units.

With the Panasonic System Two Multi-Zone, long piping length flexibility is also featured. The maximum total length is 164 feet with a maximum length of 82 feet for a single indoor unit. The maximum height difference is 49 feet. With the flexibility of long piping lengths, this system can be installed in virtually any building design.

Of course the system also includes Panasonic's inverter technology - providing optimum power control and extremely efficient operation by changing the power supply frequency. The result is speedy, flexible operation that uses less electricity. The inverter constantly adjusts compressor rotation speed to provide optimum performance at all times. Once the set temperature is achieved, the inverter air conditioner continues to operate with minimum power.

And talk about reliability, with its low ambient heating capability, you will never be cold - heating is possible even if the temperature outside falls as low as -5°F.

Panasonic 2 Zone System

The CU-2E18SBU-5 Dual-Zone is rated for 16,700 BTU Cooling Capacity and must be connected to two indoor units. The combined BTU ratings of the units chosen can total up to a maximum connected BTU rating of 21,800 BTUs.

Indoor Unit Options

Panasonic Standard Indoor Wall Unit

Standard Wall Unit (CS-ME5RKUACS-ME7RKUA, CS-E9RKUAWCS-E12RKUAW) - all feature ECONAVI Technology, Whisper Quiet operation, 24hr timer, night setback, automatic louvers and include a hand held remote. A wired wall controller, CZ-RD516C-1, (sold separately) is also available. The standard wall units are available in 5,500, 6,900, 9,000, and 11,500 BTUs for this outdoor unit.

Ceiling Cassette Unit

Ceiling Cassette Unit (CS-ME9SB4U, CS-E12RB4UW) - all include the decorative Grille and the units all feature ECONAVI Technology as well as five fan speeds, night set back, fresh air intake, quiet mode and a wireless remote with easy to read LCD display. A wired wall controller, CZ-RD52CU, (sold separately) is also available. The ceiling cassette units are available in 8,600,and 10,900 BTUs for this outdoor unit.

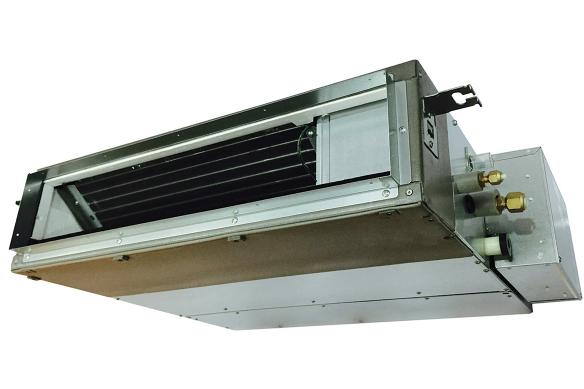

Ducted Ceiling Unit

Ducted Ceiling Unit (CS-ME5SD3UA, CS-ME7SD3UA, CS-E9SD3UAW, CS-E12SD3UAW) - are the newest type of indoor units to be included in the Panasonic line-up. These low profile units can be installed in the ceiling or in the floor and are hidden from view. These units also feature 5 fan speeds, 24 hour timer and dry mode as well as a wireless remote. A wired wall controller, CZ-RD52DU, (sold separately) is also available. The ducted ceiling units are available in 5,500, 6,900, 9,000, and 11,500 BTUs for this outdoor unit.


Line Sets

Example of Line Set without wire

Mini Split Line Sets - Line sets are a requirement when installing a mini split system. They are the connection between the outdoor unit and the indoor units of your system. Every indoor unit needs to be connected directly to the outdoor unit with its own line set. Most Mini Split Line Sets come with flared connectors attached and are ready to install. Our line sets are offered with and without control wire and are available in various connection sizes and lengths to meet your installation needs. The line set shown in the photo does not include the control wire.


2 Zone Installation
Above is an example of a 2-zone installation

At least two indoor units MUST be connected to the CU-2E18SBU-5 compressor. Nominal Capacity range of connectable indoor units must be from 11,000 BTUs ~ 21,830 BTUs. Please double check your configurations before placing your order. Feel free to call Customer Service at 877-847-0050 for ANY questions regarding the purchase of this unit.

This unit must be installed by a qualified licensed HVAC technician.



Looking for a qualified installer? Allow Preferred Contractor to help. Preferred Contractor has a nationwide network of trained mini split installers. Click here to fill out the form and get started. An HVAC expert will contact you to learn about your needs and get a quote for you whether you have already purchased the equipment or are just starting to research.

$1,269.00
Panasonic CU-2E18SBU-5 16,700 BTU, 1.5 Ton Configurable Dual-Zone Multi-Zone Mini Split - Energy Star
Customer Reviews
FREE SHIPPING ON ALL ORDERS!
Base Price shown is for outdoor unit only. You can choose 2 indoor units below with a total connected capacity of 21,830 BTUs (minimum 11,000 BTUs). The price displayed will update based on your selections. If you need help configuring a system, please contact us.

Now with heating capabilities down to -5°F, Panasonic Mini-Splits are a great option for much of the US.

Panasonic's Dual Zone Mini Split System offers you the advantage of a single system that is connectable for 2 indoor units. That is 2 individually temperature controlled rooms without duct work! Panasonic's innovative technology enables high energy saving performance with a SEER rating of 19 and an HSPF rating of 9.5  - for more efficient operation than ever before. Because each room operates independently, you can customize your BTUs for each space.  For the CU-2E18SBU-5, Panasonic offers indoor units ranging from 5,500 BTUs for smaller rooms, up to 12,000 BTUs for larger rooms. Connectivity capacities of this unit is a minimum of 11,000 BTUs  with a maximum of 21,830 BTUs. This system is Energy Star Qualified when installed with both non-ducted  and ducted indoor units.

With the Panasonic System Two Multi-Zone, long piping length flexibility is also featured. The maximum total length is 164 feet with a maximum length of 82 feet for a single indoor unit. The maximum height difference is 49 feet. With the flexibility of long piping lengths, this system can be installed in virtually any building design.

Of course the system also includes Panasonic's inverter technology - providing optimum power control and extremely efficient operation by changing the power supply frequency. The result is speedy, flexible operation that uses less electricity. The inverter constantly adjusts compressor rotation speed to provide optimum performance at all times. Once the set temperature is achieved, the inverter air conditioner continues to operate with minimum power.

And talk about reliability, with its low ambient heating capability, you will never be cold - heating is possible even if the temperature outside falls as low as -5°F.

Panasonic 2 Zone System

The CU-2E18SBU-5 Dual-Zone is rated for 16,700 BTU Cooling Capacity and must be connected to two indoor units. The combined BTU ratings of the units chosen can total up to a maximum connected BTU rating of 21,800 BTUs.

Indoor Unit Options

Panasonic Standard Indoor Wall Unit

Standard Wall Unit (CS-ME5RKUACS-ME7RKUA, CS-E9RKUAWCS-E12RKUAW) - all feature ECONAVI Technology, Whisper Quiet operation, 24hr timer, night setback, automatic louvers and include a hand held remote. A wired wall controller, CZ-RD516C-1, (sold separately) is also available. The standard wall units are available in 5,500, 6,900, 9,000, and 11,500 BTUs for this outdoor unit.

Ceiling Cassette Unit

Ceiling Cassette Unit (CS-ME9SB4U, CS-E12RB4UW) - all include the decorative Grille and the units all feature ECONAVI Technology as well as five fan speeds, night set back, fresh air intake, quiet mode and a wireless remote with easy to read LCD display. A wired wall controller, CZ-RD52CU, (sold separately) is also available. The ceiling cassette units are available in 8,600,and 10,900 BTUs for this outdoor unit.

Ducted Ceiling Unit

Ducted Ceiling Unit (CS-ME5SD3UA, CS-ME7SD3UA, CS-E9SD3UAW, CS-E12SD3UAW) - are the newest type of indoor units to be included in the Panasonic line-up. These low profile units can be installed in the ceiling or in the floor and are hidden from view. These units also feature 5 fan speeds, 24 hour timer and dry mode as well as a wireless remote. A wired wall controller, CZ-RD52DU, (sold separately) is also available. The ducted ceiling units are available in 5,500, 6,900, 9,000, and 11,500 BTUs for this outdoor unit.


Line Sets

Example of Line Set without wire

Mini Split Line Sets - Line sets are a requirement when installing a mini split system. They are the connection between the outdoor unit and the indoor units of your system. Every indoor unit needs to be connected directly to the outdoor unit with its own line set. Most Mini Split Line Sets come with flared connectors attached and are ready to install. Our line sets are offered with and without control wire and are available in various connection sizes and lengths to meet your installation needs. The line set shown in the photo does not include the control wire.


2 Zone Installation
Above is an example of a 2-zone installation

At least two indoor units MUST be connected to the CU-2E18SBU-5 compressor. Nominal Capacity range of connectable indoor units must be from 11,000 BTUs ~ 21,830 BTUs. Please double check your configurations before placing your order. Feel free to call Customer Service at 877-847-0050 for ANY questions regarding the purchase of this unit.

This unit must be installed by a qualified licensed HVAC technician.



Looking for a qualified installer? Allow Preferred Contractor to help. Preferred Contractor has a nationwide network of trained mini split installers. Click here to fill out the form and get started. An HVAC expert will contact you to learn about your needs and get a quote for you whether you have already purchased the equipment or are just starting to research.

  • Number of Zones:
    2
  • Maximum Number of Indoor Units:
    2
  • EER:
    12.55
  • SEER (non-ducted indoor units):
    19
  • SEER (ducted indoor units):
    19
  • Energy Star:
    Yes
  • Cooling Amps:
    6.9 / 7.6
  • Cooling BTUs:
    16700
  • Includes Heat Pump:
    Yes
  • Heat Pump BTUs:
    20200
  • Heat Pump Heating Amps:
    6.0 / 6.6
  • HSPF (non-ducted):
    9.5
  • Outdoor Unit Noise Level (dBA):
    48
  • Voltage:
    208-230V
  • Circuit Breaker Size (Amps):
    20
  • Operating Range - Cooling:
    14°F - 114°F
  • Operating Range - Heating:
    -5°F - 75°F
  • Min. Outdoor Temp for Heat °F:
    -5
  • Inverter Technology:
    Yes
  • Pipe Length (No Addl Refr Req):
    65.2
  • Max. Pipe Length/Zone (ft.):
    164 Total (82/unit)
  • Outdoor Unit Width (in.):
    34.469
  • Outdoor Unit Depth (in.):
    12.625
  • Outdoor Unit Height (in.):
    31.313
  • Outdoor Unit Weight (lbs.):
    157
  • Parts Warranty:
    5 Years
  • Compressor Warranty:
    7 Years
  • Labor Warranty:
    None
  • Max. Connected Outdoor BTU Capacity:
    21830

Warranty Information

  • Parts: 5 Years
  • Compressor: 7 Years
  • Labor: None

The warranty for this unit is for parts only, and does not cover labor or diagnostic services. Total Home Supply will handle all warranty parts requests for any mini split purchased from us, but installation and all troubleshooting for this unit must be performed by a licensed HVAC technician. Any fees the technician may charge are not reimbursable by the manufacturer or by Total Home Supply. Please call 877-847-0050 for more details or with any questions you may have regarding warranty information and installation of this unit.
